Chicago Pneumatic8941077820

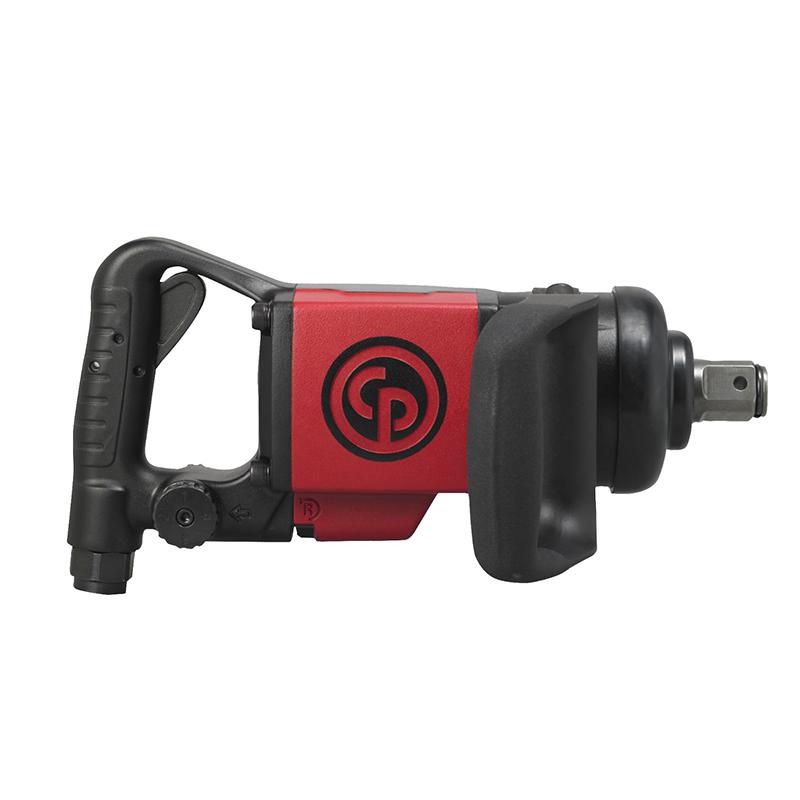

CP7782 | 1 in. 1475 Ft lb Impact Wrench with dual retainer, 5200 rpm, 500 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8941077820 | CP7782 | 1 in. 1475 Ft lb Impact Wrench with dual retainer, 5200 rpm, 500 bpmCP7782
Price on request
Details
Product information
Overview
Chicago Pneumatic 1 in. 1475 Ft lb Impact Wrench with dual retainer, 5200 rpm, 500 bpm
CP7782
CP7782, 1 in. 1475 Ft lb Impact Wrench with dual retainer, 5200 rpm, 500 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Maximize operator comfort with a lightweight impact
- Ergonomic and intuitive handling
- High Power to Weight ratio for General Maintenance applications
Features
- 1" straight impact wrench with 6" extended anvil
- 17 lbs (7,7 kg) thanks to an aluminum housing giving less fatigue to the operator
- 1550 ft.lbs (2100Nm) maximum torque in reverse
- Integrated protective cover on the clutch housing
- Twin hammer mechanism in oil bath
- Dedicated lever for forward & reverse
- Ergonomic side handle with soft touch grip
- 4-positions power setting for both directions and on both sides of the tool
- Socket retainer ring combined with hole retainer
| Technical Specifications | |
|---|---|
| Model | CP7782 |
| Type | Impact Wrench |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 490 |
| Min Torque (Ft Lb) | 370 |
| Free Speed (RPM) | 5200 |
| SKU | 8941077820 |
| Stock Code | 2 |
| Air Inlet | 1/2 in. |
| Clutch Type | Pinless closed rocking dog |
| Maximum Torque Reverse (ft lb) | 1920 ft lbs |
| Max Torque (Ft Lb) | 1475 |
| Min Torque (Nm) | 500 |
| Max Torque (Nm) | 2000 |
| Bolt Size - mm | M32 |
| Square Drive | 1 in. |
| Min Hose Size (in) | 1/2 |
| Weight (lbs) | 17.0 |
| Handle Type | D-Handle, Inside Trigger |
| Blows Per Minute (bpm) | 500 |
| Retainer Type | Dual, hole and friction |
| MPN | CP7782 |
