Chicago PneumaticT013901

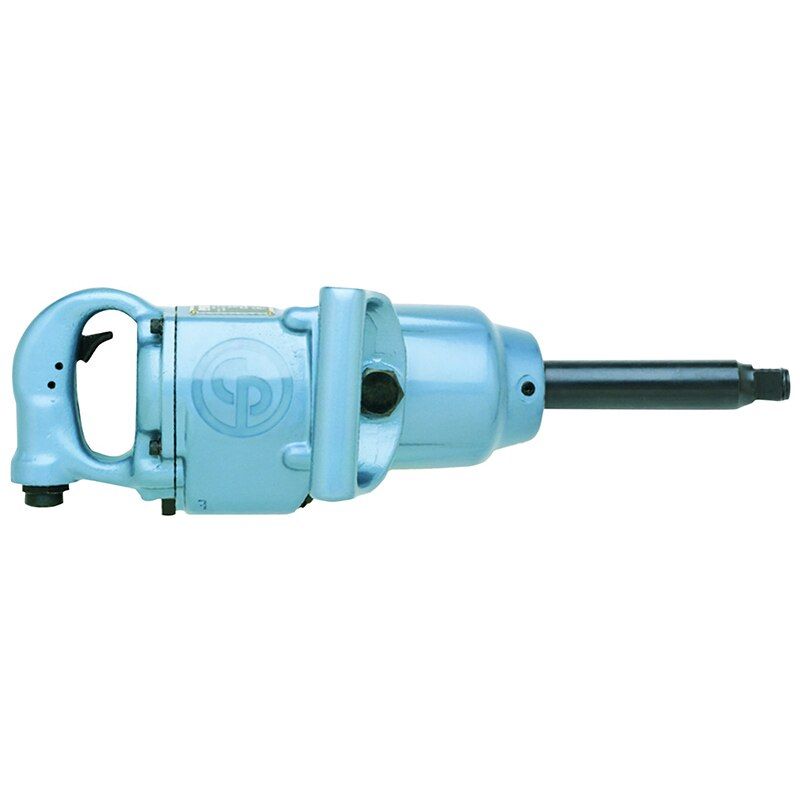

CP797-6 | 1 in. 900 Ft lb Extended Impact Wrench with ring retainer, 4200 rpm, 1080 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
T013901 | CP797-6 | 1 in. 900 Ft lb Extended Impact Wrench with ring retainer, 4200 rpm, 1080 bpmCP797-6
Price on request
Details
Product information
Overview
Chicago Pneumatic 1 in. 900 Ft lb Extended Impact Wrench with ring retainer, 4200 rpm, 1080 bpm
CP797-6
CP797-6, 1 in. 900 Ft lb Extended Impact Wrench with ring retainer, 4200 rpm, 1080 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Extended Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- The undisputed market leader
- Long known as the workhorse of the truck tire industry
- Clutch delivers smooth operation and extreme durability
- Ideal for high volume work on trucks, buses, and heavy equipment
Features
- 1" straight impact wrench
- Rocking dog clutch
- High performance and durability
- Teasing throttle
- Convenient reverse valve
- Plus 6" extended anvil
| Technical Specifications | |
|---|---|
| Max working torque fwd | 1220 Nm |
| Max torque reverse | 1890 Nm |
| Min working torque fwd | 200 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Sound Power | 121 dB(A) |
| Sound Pressure | 110 dB(A) |
| Uncertainty vibration-K | 4.3 m/s² |
| Vibration (m/s²) | 12.8 |
| Free Speed | 4200 rpm |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 565 mm |
| Power weight ratio | 140 Nm/kg |
| Weight | 13.4 kg |
| Blow per minute | 1080 |
| Body | Aluminium |
| Clutch housing | Aluminium |
| Clutch lubrication type | Oil bath |
| Handle type | D-handle |
| Impact mecanism | Double rocking dog |
| Main Material type | Aluminium |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Side handle | Yes |
| Starting system | Trigger |
| MPN | CP797-6 |
