Chicago Pneumatic8941077836
CP7783-6 | 1 In. Impact Wrench, Lightweight
8941077836 | CP7783-6 | 1 In. Impact Wrench, Lightweight
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8941077836 | CP7783-6 | 1 In. Impact Wrench, LightweightCP7783-6
Price on request
Details
Product information
Overview

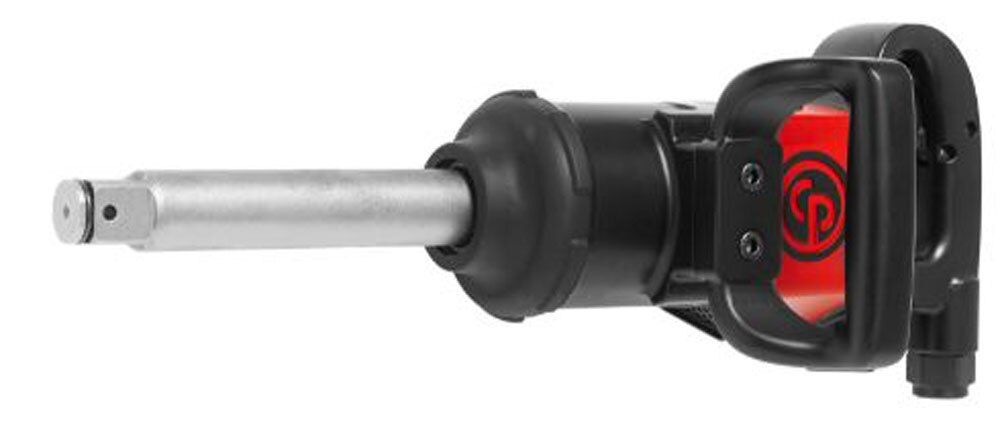

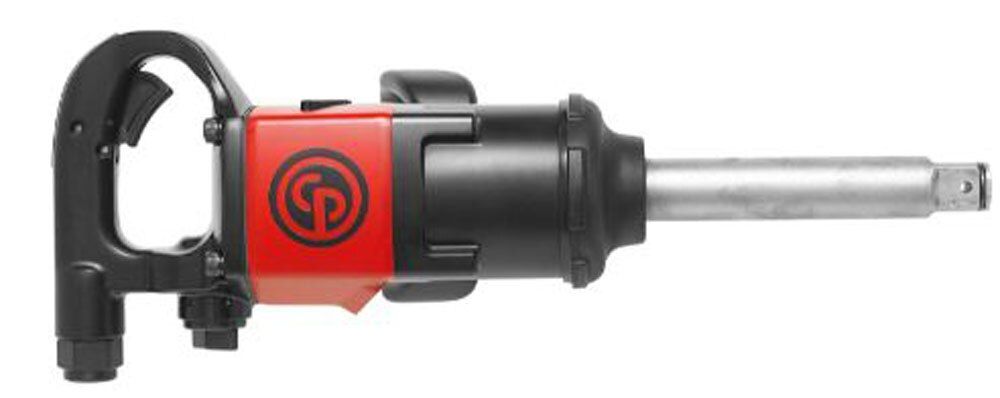

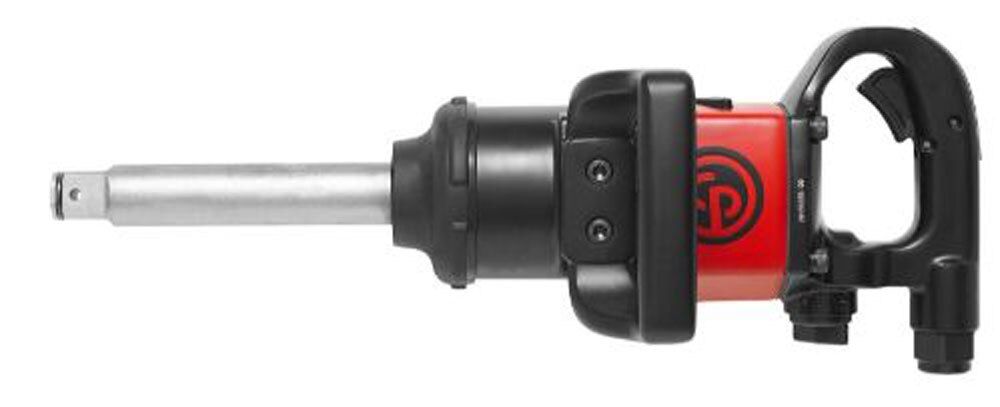

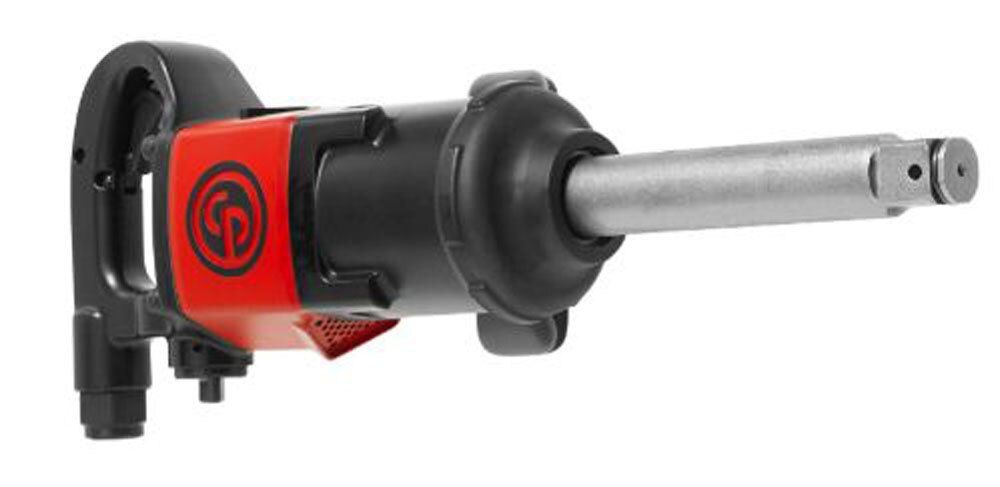

Chicago Pneumatic 1 In. Impact Wrench, Lightweight
CP7783-6
1 In. Impact Wrench, Lightweight, model CP7783-6, by Chicago Pneumatic. Do you see the CP7783-6 at a much lower rate? Contact Customer Service by phone or email to price match!
| Technical Specifications | |
|---|---|
| Max working torque fwd | 1700 Nm |
| Max torque reverse | 2400 Nm |
| Min working torque fwd | 560 Nm |
| Torque limited | No |
| Air consumption at load | 19 l/s |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.75 in |
| Min hose diam (5 m hose length) | 13 mm |
| Sound Power | 113 dB(A) |
| Sound Pressure | 102 dB(A) |
| Uncertainty vibration-K | 4.1 m/s² |
| Vibration (m/s²) | 15.1 |
| Free Speed | 6200 rpm |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 500 mm |
| Weight | 9.5 kg |
| Blow per minute | 900 |
| Body | Aluminium |
| Clutch housing | Aluminium |
| Clutch lubrication type | Grease |
| Handle type | D-handle |
| Impact mecanism | Pinless rocking dog |
| Main Material type | Aluminium |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Dual |
| Side handle | Yes |
| Starting system | Trigger |
| MPN | CP7783-6 |
