Chicago Pneumatic8941077636

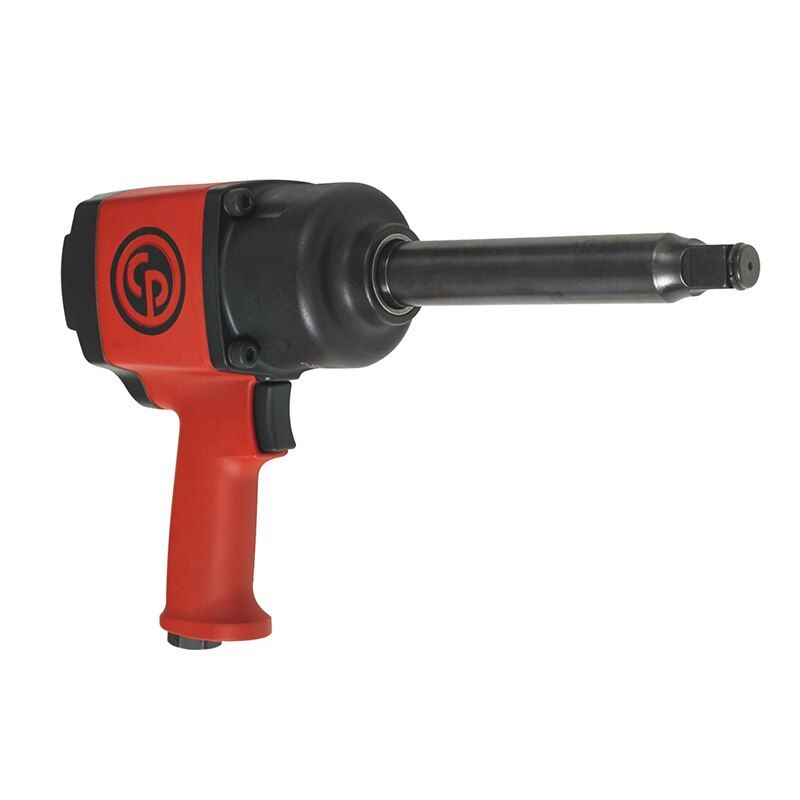

CP7763-6 | 3/4 in. 950 Ft lb Extended Impact Wrench with ring retainer, 6300 rpm, 900 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8941077636 | CP7763-6 | 3/4 in. 950 Ft lb Extended Impact Wrench with ring retainer, 6300 rpm, 900 bpmCP7763-6
Price on request
Details
Product information
Overview
Chicago Pneumatic 3/4 in. 950 Ft lb Extended Impact Wrench with ring retainer, 6300 rpm, 900 bpm
CP7763-6
CP7763-6, 3/4 in. 950 Ft lb Extended Impact Wrench with ring retainer, 6300 rpm, 900 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Extended Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Powerful motor and durable clutch
- Operator comfort
- Ideal for spring work, pinion nut, tractor pad removal, truck tire work, and major engine teardowns
Features
- 3/4" impact wrench
- with 6" extended anvil (ring socket retainer)
- Twin hammer clutch
- High power: 1,200 ft.lbs (1,627 Nm)
- Combined power regulator with forward/reverse
| Technical Specifications | |
|---|---|
| Model | CP7763-6 |
| Type | Extended Impact Wrench |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 381 |
| Min Torque (Ft Lb) | 100 |
| Free Speed (RPM) | 6300 |
| SKU | 8941077636 |
| Stock Code | 2 |
| Air Inlet | 3/8 in. |
| Clutch Type | Twin hammer |
| Maximum Torque Reverse (ft lb) | 1200 ft lbs |
| Max Torque (Ft Lb) | 950 |
| Min Torque (Nm) | 136 |
| Max Torque (Nm) | 1288 |
| Square Drive | 3/4 in. |
| Min Hose Size (in) | 1/2 |
| Weight (lbs) | 13.9 |
| Side to Center (in) | 1.8 |
| Handle Type | Pistol |
| Blows Per Minute (bpm) | 900 |
| Retainer Type | Friction ring |
| MPN | CP7763-6 |
