Chicago PneumaticT024757
CP772H-6 | 3/4 in. 700 Ft lb Extended Impact Wrench with ring retainer, 4200 rpm, 900 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
T024757 | CP772H-6 | 3/4 in. 700 Ft lb Extended Impact Wrench with ring retainer, 4200 rpm, 900 bpmCP772H-6
Price on request
Details
Product information
Overview

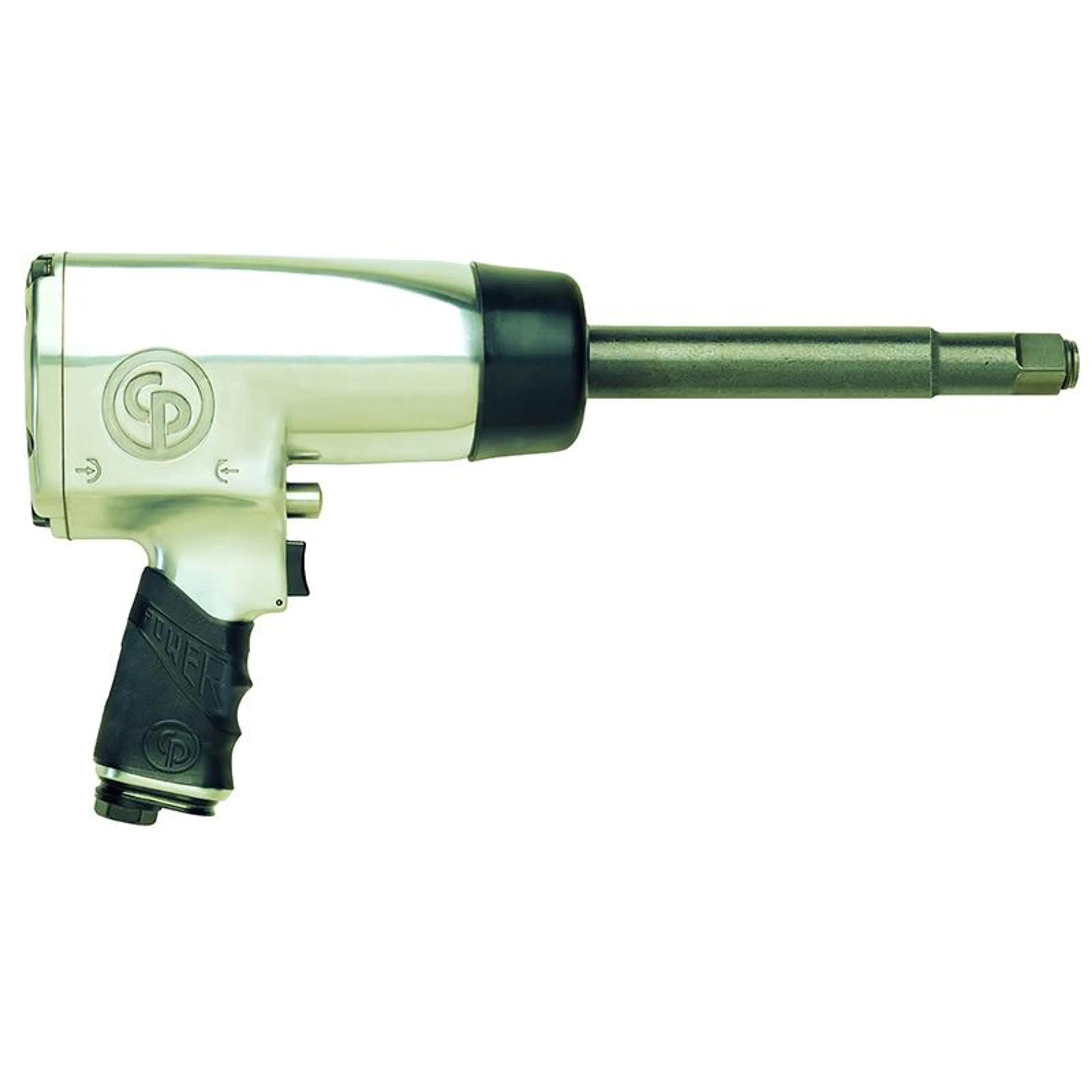

Chicago Pneumatic 3/4 in. 700 Ft lb Extended Impact Wrench with ring retainer, 4200 rpm, 900 bpm
CP772H-6
CP772H-6, 3/4 in. 700 Ft lb Extended Impact Wrench with ring retainer, 4200 rpm, 900 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Extended Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- General Maintenance
- Smooth operation thanks to the DYNA-PACT clutch
- Comfortable use thanks to low noise and vibration levels
- Good durability
Features
- 3/4" impact wrench with ring retainer
- DYNA-PACT oil bath clutch
- Single handed reverse button with 4 settings of power
- Comfortable handle grip
- 360° air inlet swivel
| Technical Specifications | |
|---|---|
| Max working torque fwd | 949 Nm |
| Max torque reverse | 1350 Nm |
| Min working torque fwd | 203 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Sound Power | 107 dB(A) |
| Sound Pressure | 96 dB(A) |
| Uncertainty vibration-K | 2 m/s² |
| Vibration (m/s²) | 5.8 |
| Free Speed | 4200 rpm |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 394 mm |
| Power weight ratio | 250 Nm/kg |
| Weight | 5.3 kg |
| Blow per minute | 900 |
| Body | Aluminum |
| Clutch housing | Aluminum |
| Clutch lubrication type | Oil bath |
| Handle type | Pistol |
| Impact mecanism | Pin clutch |
| Output drive size (in) | 3/4 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| MPN | CP772H-6 |
