Chicago Pneumatic8941077270
CP7727 | 3/8 in. 140 Ft lb Compact Angle Impact Wrench with ring retainer, 8510 rpm, 1600 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8941077270 | CP7727 | 3/8 in. 140 Ft lb Compact Angle Impact Wrench with ring retainer, 8510 rpm, 1600 bpmCP7727
Price on request
Details
Product information
Overview

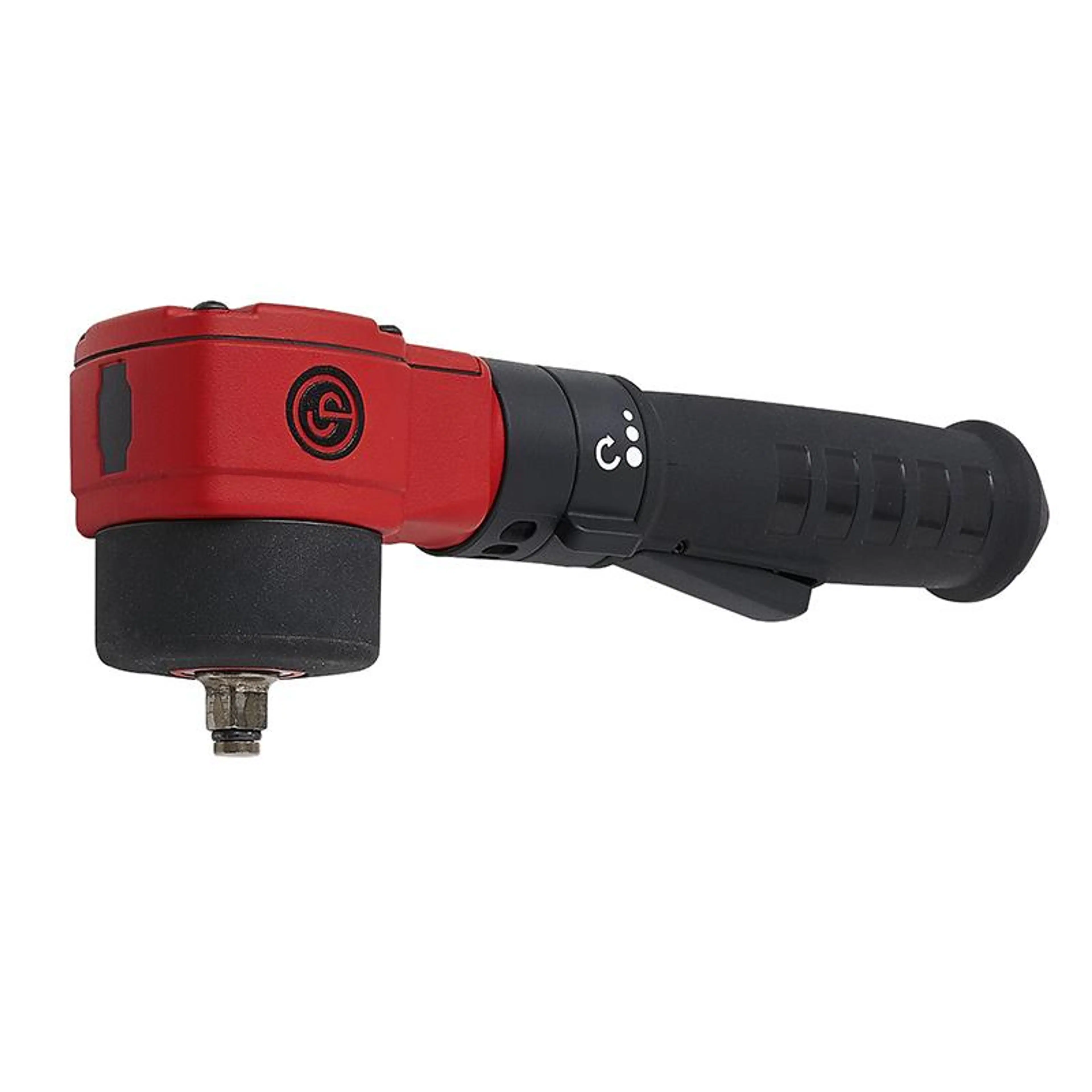

Chicago Pneumatic 3/8 in. 140 Ft lb Compact Angle Impact Wrench with ring retainer, 8510 rpm, 1600 bpm
CP7727
CP7727, 3/8 in. 140 Ft lb Compact Angle Impact Wrench with ring retainer, 8510 rpm, 1600 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Compact Angle Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- High Durability
- Compact
- Powerful
- Comfort
- Great Control
- Easy Operation
- Single handed Forward – Reverse operation
- 3 positions in forward and 1 in reverse
Features
- Jumbo hammer mechanism
- Steel motor
- Composite cover
- Direct drive transmission mechanism
- 9.8 in -240 mm length & 3.46 in. (88 mm) height
- 220 ft.lbs - 300 Nm of maximum torque in reverse (for 1/2" model)
- 2.46 lbs. – 1.12 Kg
- Over molded composite and ergonomic handle to fit perfectly in hand
- Full teasing trigger
- Single handed Forward – Reverse operation
- 3 positions in forward and 1 in reverse
- Socket retainer ring
| Technical Specifications | |
|---|---|
| Model | CP7727 |
| Type | Compact Angle Impact Wrench |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 240 |
| Min Torque (Ft Lb) | 20 |
| Free Speed (RPM) | 8510 |
| SKU | 8941077270 |
| Stock Code | 3 |
| Air Inlet | 1/4 in. |
| Clutch Type | Jumbo |
| Maximum Torque Reverse (ft lb) | 185 ft lbs |
| Max Torque (Ft Lb) | 140 |
| Min Torque (Nm) | 26 |
| Max Torque (Nm) | 192 |
| Square Drive | 3/8 in. |
| Min Hose Size (in) | 3/8 |
| Weight (lbs) | 2.5 |
| Handle Type | Pistol |
| Blows Per Minute (bpm) | 1600 |
| Retainer Type | Friction ring |
| MPN | CP7727 |
