Chicago Pneumatic8941077220

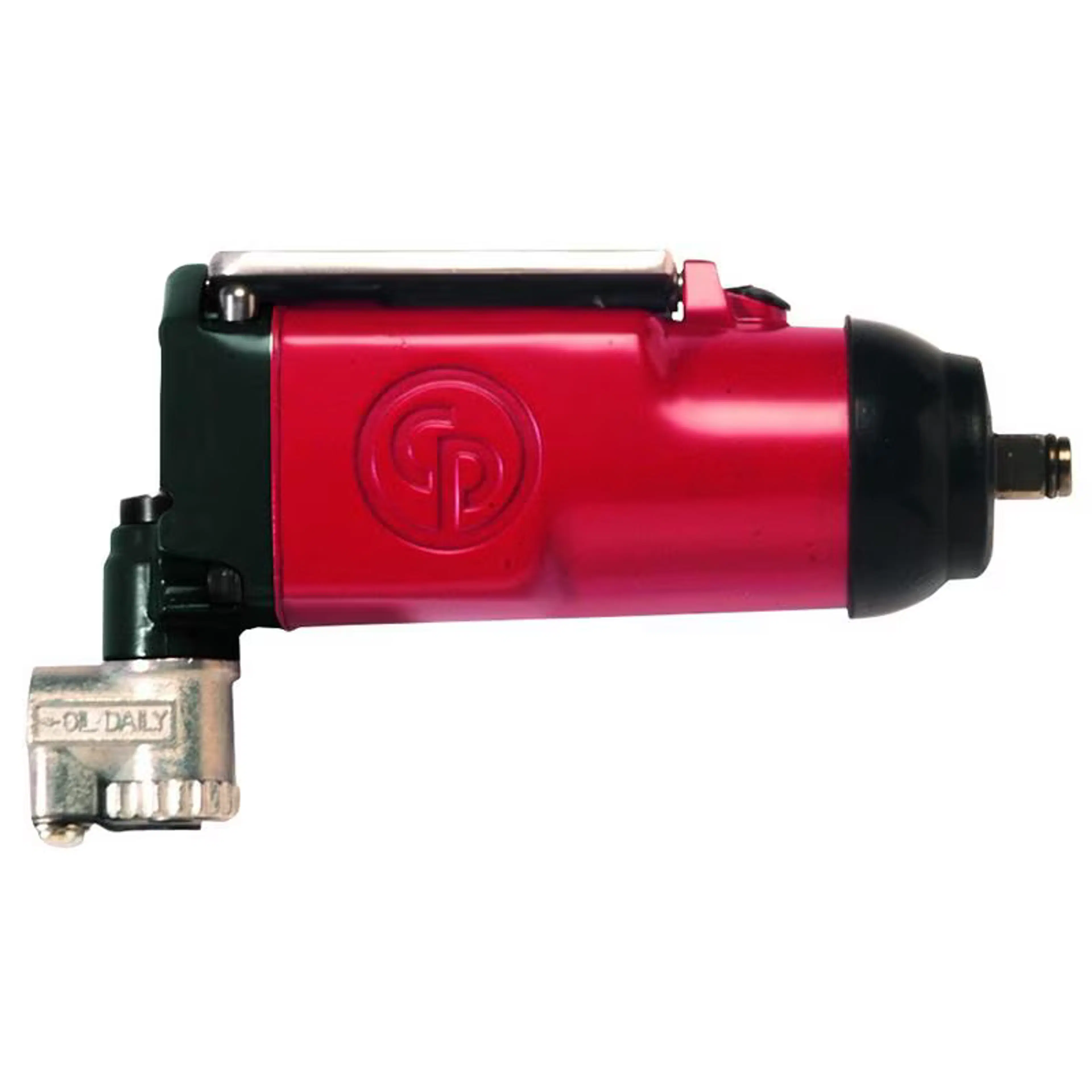

CP7722 | 3/8 in. 65 Ft lb Compact Impact Wrench with ring retainer, 9500 rpm, 1400 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP7722 Compact Impact Wrench Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP7722 Compact Impact Wrench Operator Manual (PDF)Open
- PDFChicago Pneumatic CP7722 Compact Impact Wrench CE Certificate (PDF)Open
- PDFChicago Pneumatic Air Impact and Pulse Wrench Safety Instructions (PDF)Open
8941077220 | CP7722 | 3/8 in. 65 Ft lb Compact Impact Wrench with ring retainer, 9500 rpm, 1400 bpmCP7722
Price on request
Details
Product information
Overview
Chicago Pneumatic 3/8 in. 65 Ft lb Compact Impact Wrench with ring retainer, 9500 rpm, 1400 bpm
CP7722
CP7722, 3/8 in. 65 Ft lb Compact Impact Wrench with ring retainer, 9500 rpm, 1400 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Compact Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Perfect for assembly/disassembly operation with limited access areas or vertical tightening
- Comfort and smooth operation thanks to the clutch benefits
- Excellent maneuverability with the 360° swivel air inlet and lightweight
- Ideal for the general maintenance of small engines, compressors, generators, etc.
Features
- 3/8" butterfly impact wrench for general maintenance
- Butterfly forward/reverse throttle
- Rocking dog clutch for smooth operations and durability
- 4 positive power settings
- 360° air inlet swivel
| Technical Specifications | |
|---|---|
| Max working torque fwd | 88 Nm |
| Max torque reverse | 122 Nm |
| Min working torque fwd | 7 Nm |
| Torque limited | No |
| Air consumption at load | 4.7 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 108 dB(A) |
| Sound Pressure | 97 dB(A) |
| Uncertainty vibration-K | 1.4 m/s² |
| Vibration (m/s²) | 4 |
| Free Speed | 9500 rpm |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 160 mm |
| Power weight ratio | 120 Nm/kg |
| Weight | 1 kg |
| Blow per minute | 1400 |
| Body | Aluminum |
| Clutch housing | Aluminum |
| Clutch lubrication type | Grease |
| Handle type | Butterfly |
| Impact mecanism | Rocking dog |
| Main Material type | Aluminium |
| Output drive size (in) | 3/8 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Butterfly trigger |
| MPN | CP7722 |
