Chicago Pneumatic8941077310
CP7731 | 3/8 in. 240 Ft lb Compact Impact Wrench with ring retainer, 6400 rpm, 1200 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8941077310 | CP7731 | 3/8 in. 240 Ft lb Compact Impact Wrench with ring retainer, 6400 rpm, 1200 bpmCP7731
Price on request
Details
Product information
Overview

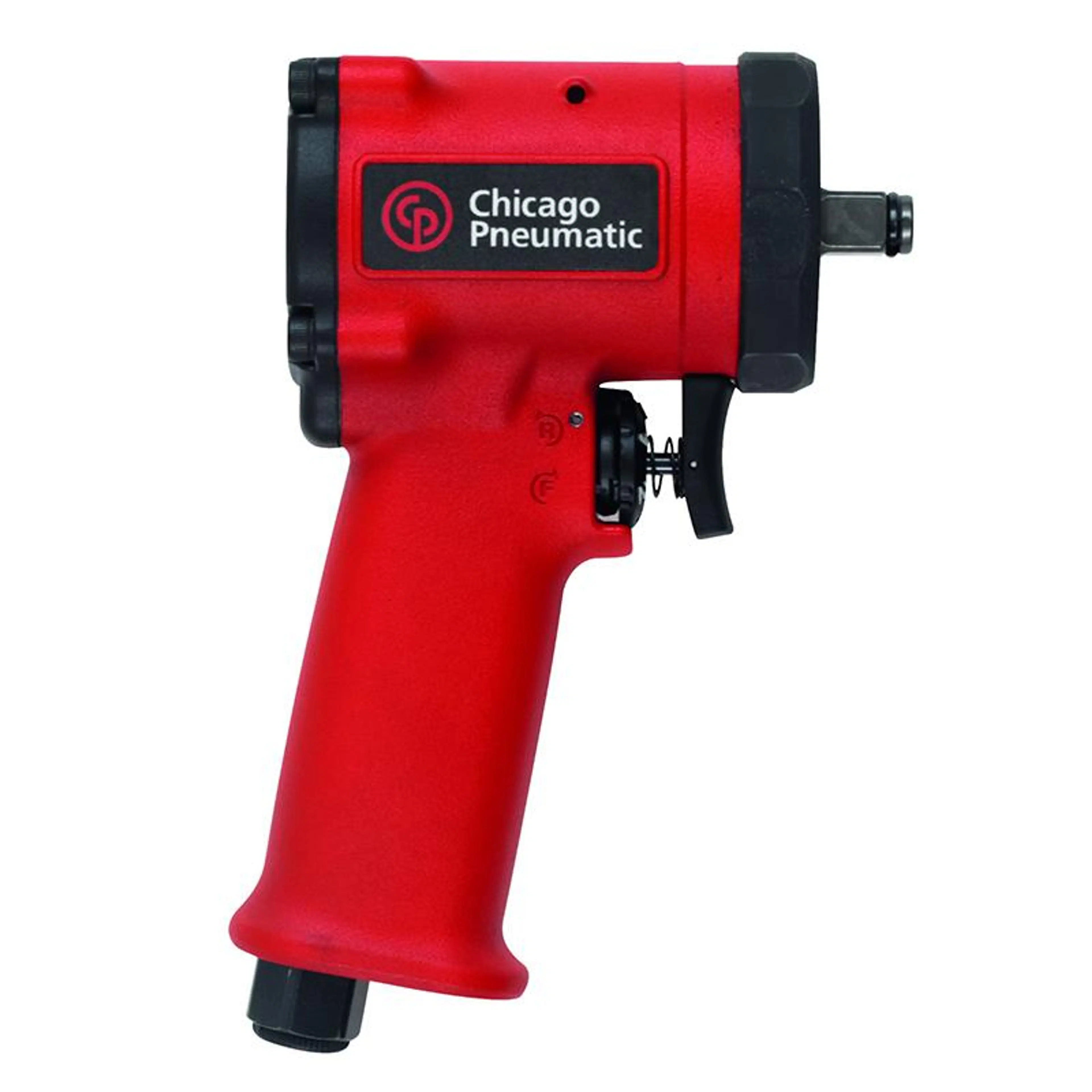

Chicago Pneumatic 3/8 in. 240 Ft lb Compact Impact Wrench with ring retainer, 6400 rpm, 1200 bpm
CP7731
CP7731, 3/8 in. 240 Ft lb Compact Impact Wrench with ring retainer, 6400 rpm, 1200 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Compact Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Best power to weight ratio: 306 ft-lbs / 415 Nm
- Ultra compact
- Easy to use
- Durable
Features
- Steel front cover & Aluminum body
- One hand operation forward – reverse by either left or right handed users
- Easily adjustable for either right or left handed operation
- 3 setting positions
- Length: 4.4" = 112 mm as can size
- Jumbo hammer
| Technical Specifications | |
|---|---|
| Max working torque fwd | 328 Nm |
| Max torque reverse | 415 Nm |
| Min working torque fwd | 96 Nm |
| Torque limited | No |
| Air consumption at load | 8.3 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 104 dB(A) |
| Sound Pressure | 93 dB(A) |
| Uncertainty vibration-K | 1.5 m/s² |
| Vibration (m/s²) | 8.5 |
| Free Speed | 6400 rpm |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 112 mm |
| Power weight ratio | 310 Nm/kg |
| Side to Center | 25 mm |
| Weight | 1.3 kg |
| Blow per minute | 1200 |
| Body | Aluminum |
| Clutch housing | Aluminum |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Single hammer |
| Output drive size (in) | 3/8 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| MPN | CP7731 |
