Chicago Pneumatic8941077620
CP7762 | 3/4 In. Stubby Impact Wrench
8941077620 | CP7762 | 3/4 In. Stubby Impact Wrench
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8941077620 | CP7762 | 3/4 In. Stubby Impact WrenchCP7762
Price on request
Details
Product information
Overview

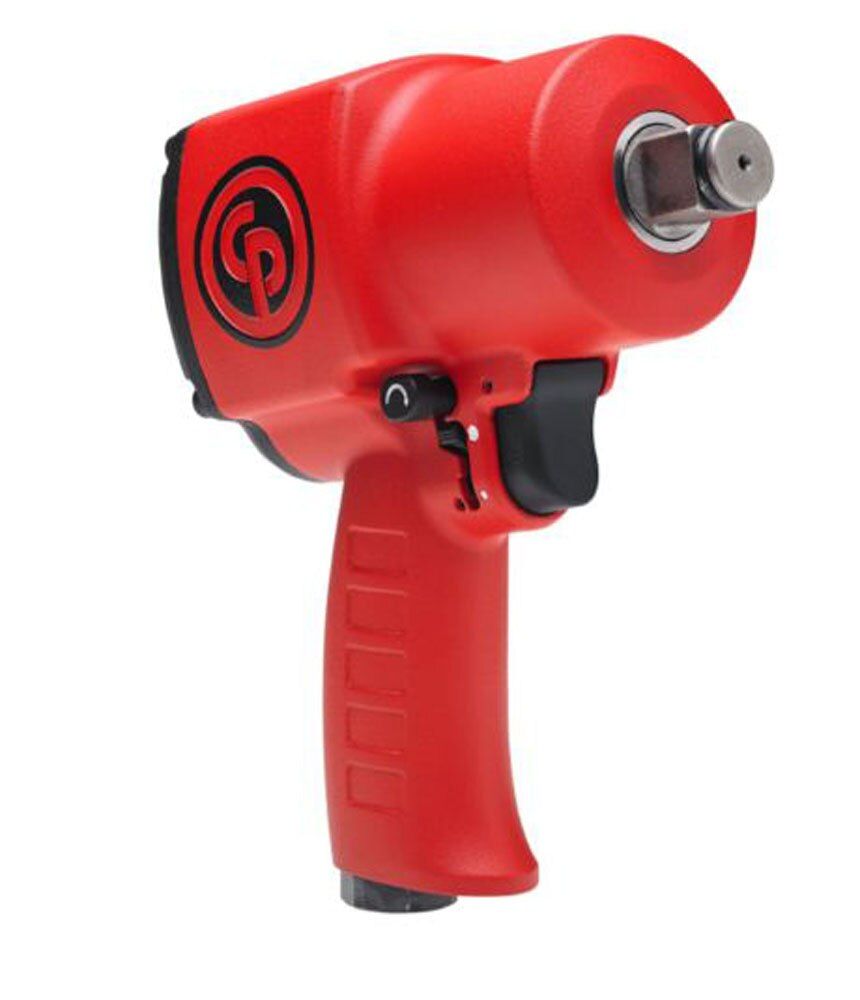

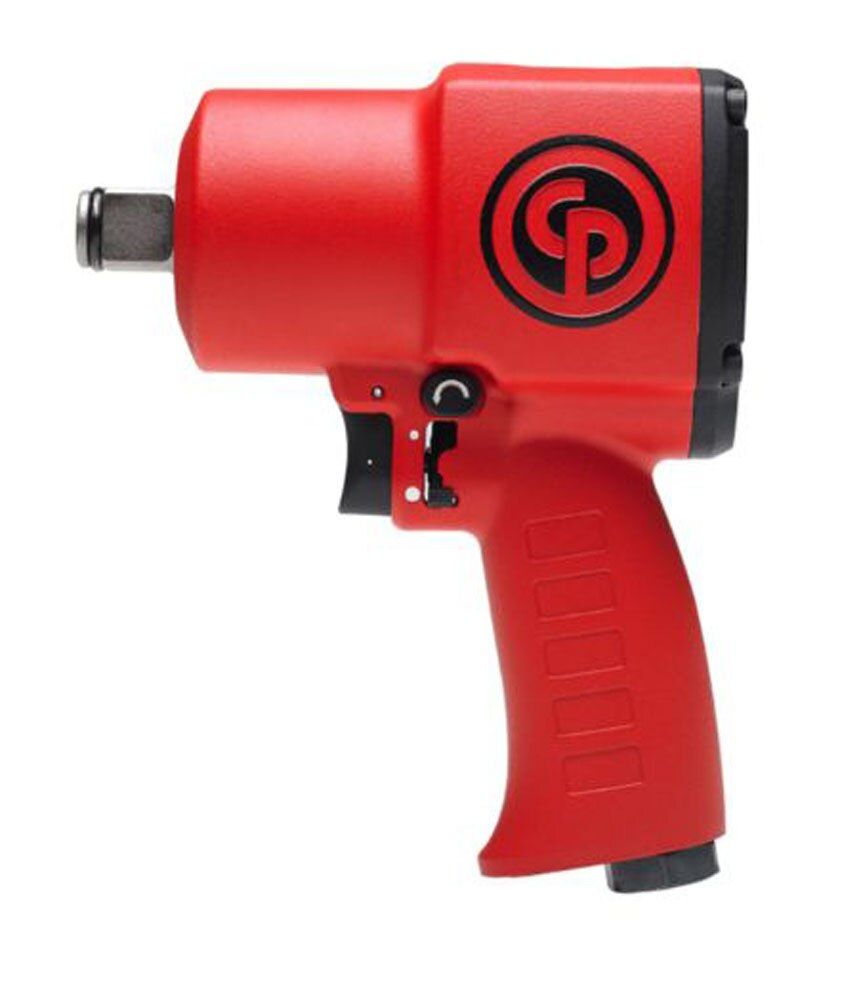

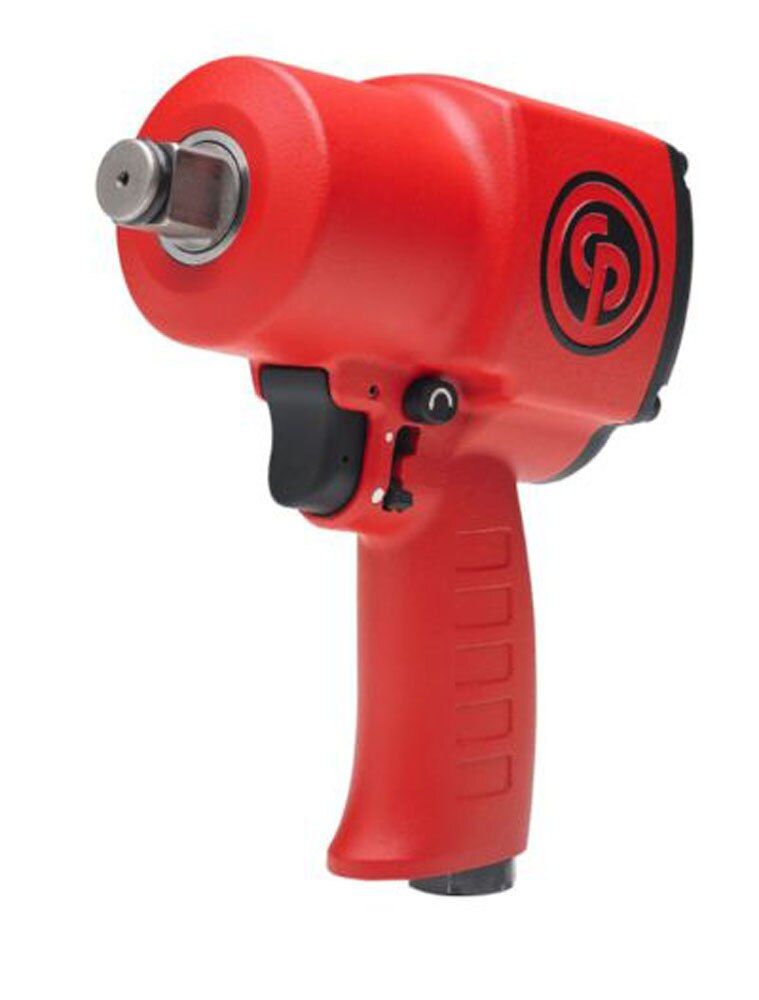

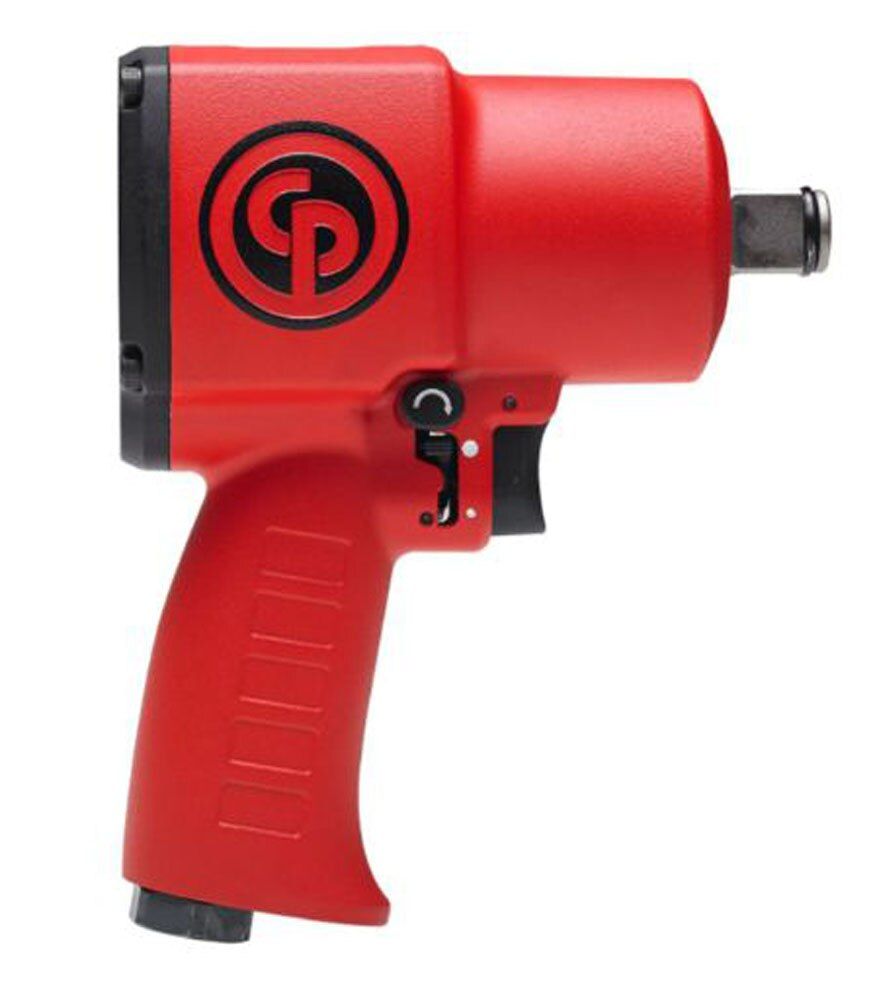

Chicago Pneumatic 3/4 In. Stubby Impact Wrench
CP7762
3/4 In. Stubby Impact Wrench, model CP7762, by Chicago Pneumatic. Do you see the CP7762 at a much lower rate? Contact Customer Service by phone or email to price match!
| Technical Specifications | |
|---|---|
| Max working torque fwd | 900 Nm |
| Max torque reverse | 1420 Nm |
| Min working torque fwd | 201 Nm |
| Torque limited | No |
| Air consumption at load | 16 l/s |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Sound Power | 103.8 dB(A) |
| Sound Pressure | 92.8 dB(A) |
| Uncertainty vibration-K | 2.8 m/s² |
| Vibration (m/s²) | 10.7 |
| Free Speed | 4850 rpm |
| Air consumption at free speed | 26 l/s |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 158 mm |
| Power weight ratio | 480 Nm/kg |
| Side to Center | 42 mm |
| Weight | 2.9 kg |
| Blow per minute | 960 |
| Body | Aluminum |
| Clutch housing | Aluminum |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Twin hammer |
| Output drive size (in) | 3/4 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| MPN | CP7762 |
