Chicago PneumaticT018653
CP797SP6 | #5 spline 900 Ft lb Extended Impact Wrench with spline retainer, 4200 rpm, 1080 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
T018653 | CP797SP6 | #5 spline 900 Ft lb Extended Impact Wrench with spline retainer, 4200 rpm, 1080 bpmCP797SP6
Price on request
Details
Product information
Overview

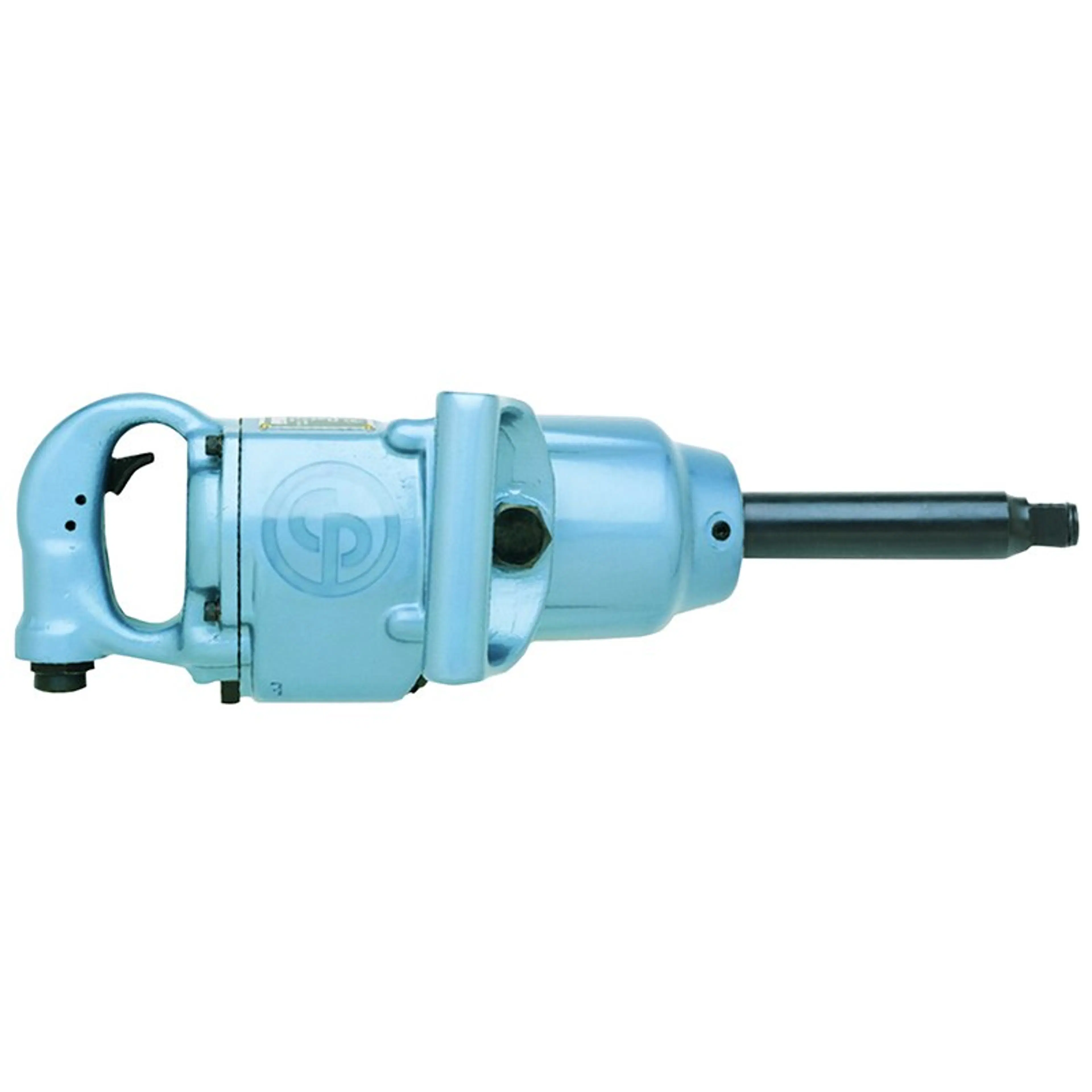

Chicago Pneumatic #5 spline 900 Ft lb Extended Impact Wrench with spline retainer, 4200 rpm, 1080 bpm
CP797SP6
CP797SP6, #5 spline 900 Ft lb Extended Impact Wrench with spline retainer, 4200 rpm, 1080 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Extended Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- The undisputed market leader
- Long known as the workhorse of the truck tire industry
- Clutch delivers smooth operation and extreme durability
- Ideal for high volume work on trucks, buses, and heavy equipment
Features
- 1" straight impact wrench
- Rocking dog clutch
- High performance and durability
- Teasing throttle
- Convenient reverse valve
- Plus 6" extended anvil and #5 spline
| Technical Specifications | |
|---|---|
| Model | CP797SP6 |
| Type | Extended Impact Wrench |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 565 |
| Min Torque (Ft Lb) | 150 |
| Free Speed (RPM) | 4200 |
| SKU | T018653 |
| Stock Code | 3 |
| Air Inlet | 1/2 in. |
| Clutch Type | Double rocking dog - Oil bath |
| Maximum Torque Reverse (ft lb) | 1400 ft lbs |
| Max Torque (Ft Lb) | 900 |
| Min Torque (Nm) | 203 |
| Max Torque (Nm) | 1220 |
| Square Drive | no. 5 spline |
| Min Hose Size (in) | 1/2 |
| Weight (lbs) | 29.8 |
| Handle Type | D-Handle, Inside Trigger |
| Blows Per Minute (bpm) | 1080 |
| Retainer Type | #5 spline |
| MPN | CP797SP6 |
