Chicago Pneumatic6151609230

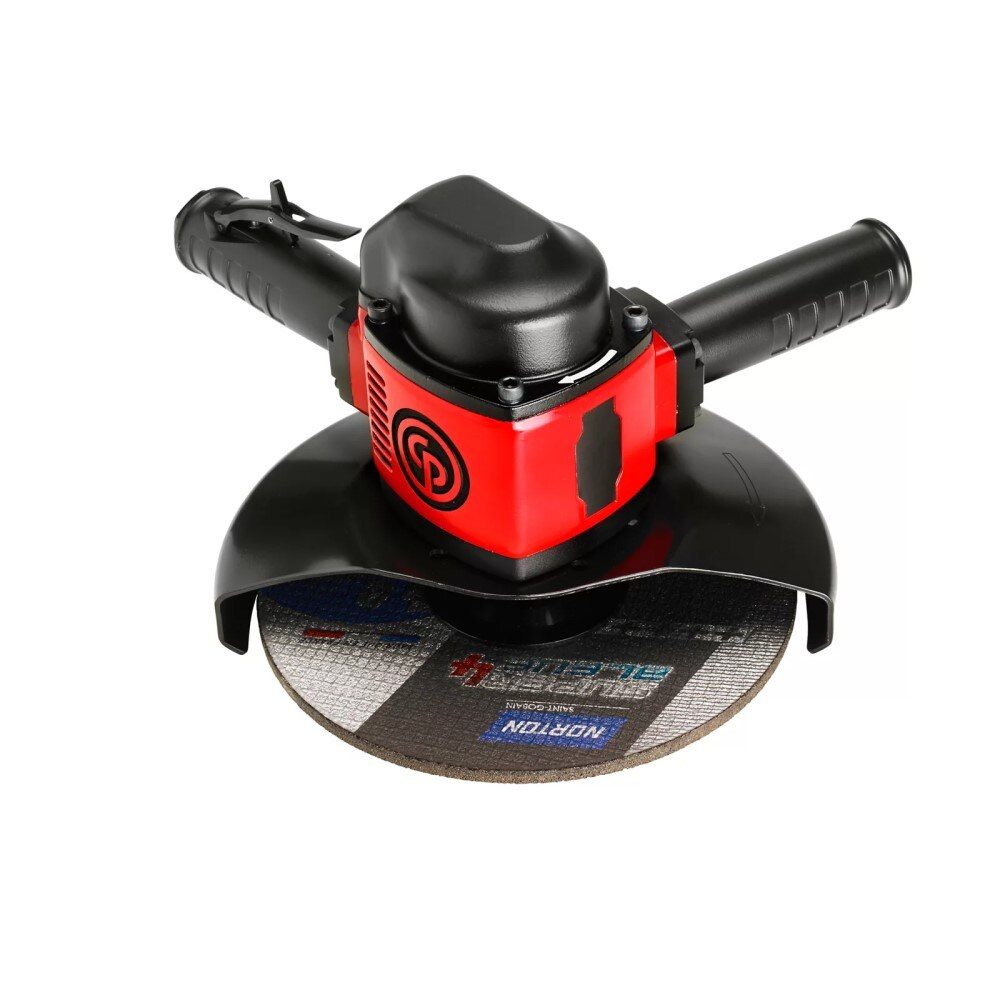

CP3330-SALAVEL | 9 In. Vertical Grinder
This CP3330 Angle Grinder has a 3.7 hp motor with speeds up to 6,000 rpm. Powerful vane moto for maximum power.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151609230 | CP3330-SALAVEL | 9 In. Vertical GrinderCP3330-SALAVEL
Price on request
Details
Product information
Overview
Chicago Pneumatic 9 In. Vertical Grinder
CP3330-SALAVEL
9 In. Vertical Grinder, model CP3330-SALAVEL, by Chicago Pneumatic. Do you see the CP3330-SALAVEL at a much lower rate? Contact Customer Service by phone or email to price match!
| Technical Specifications | |
|---|---|
| Air consumption at load | 33 l/s |
| Air inlet thread size (in) | 1/2 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.63 in |
| Min hose diam (5 m hose length) | 16 mm |
| Length (L) | 250 mm |
| Side to Center | 50 mm |
| Weight | 5.1 kg |
| Max power | 2800 W |
| Autobalancer | No |
| Exhaust | Side |
| Main Material type | Aluminium |
| Output Spindle Thread | 5/8-11 UNC |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| Swiveling guard | No |
| Wheel/Disc diameter (in) | 9 |
| Wheel/Disc diameter (mm) | 230 |
| Free Speed | 6000 rpm |
| Air consumption at free speed | 10 l/s |
| Overspeed shut-off | Yes |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Sound Power | 106 dB(A) |
| Sound Pressure | 95 dB(A) |
| Uncertainty vibration-K | 1.6 m/s² |
| Vibration | 4.4 m/s² |
| MPN | CP3330-SALAVEL |
| Features & Benefits | |
| Best in Class Productivity and Optimal Operator Safety | |
| Robust Aluminum housing | |
| Integrated Over speed shut-off | |
