Chicago PneumaticT011970
CP9361-1 | 1/8 in Hex Shank Engraving Pen Kit, 13500 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
T011970 | CP9361-1 | 1/8 in Hex Shank Engraving Pen Kit, 13500 bpmCP9361-1
Price on request
Details
Product information
Overview

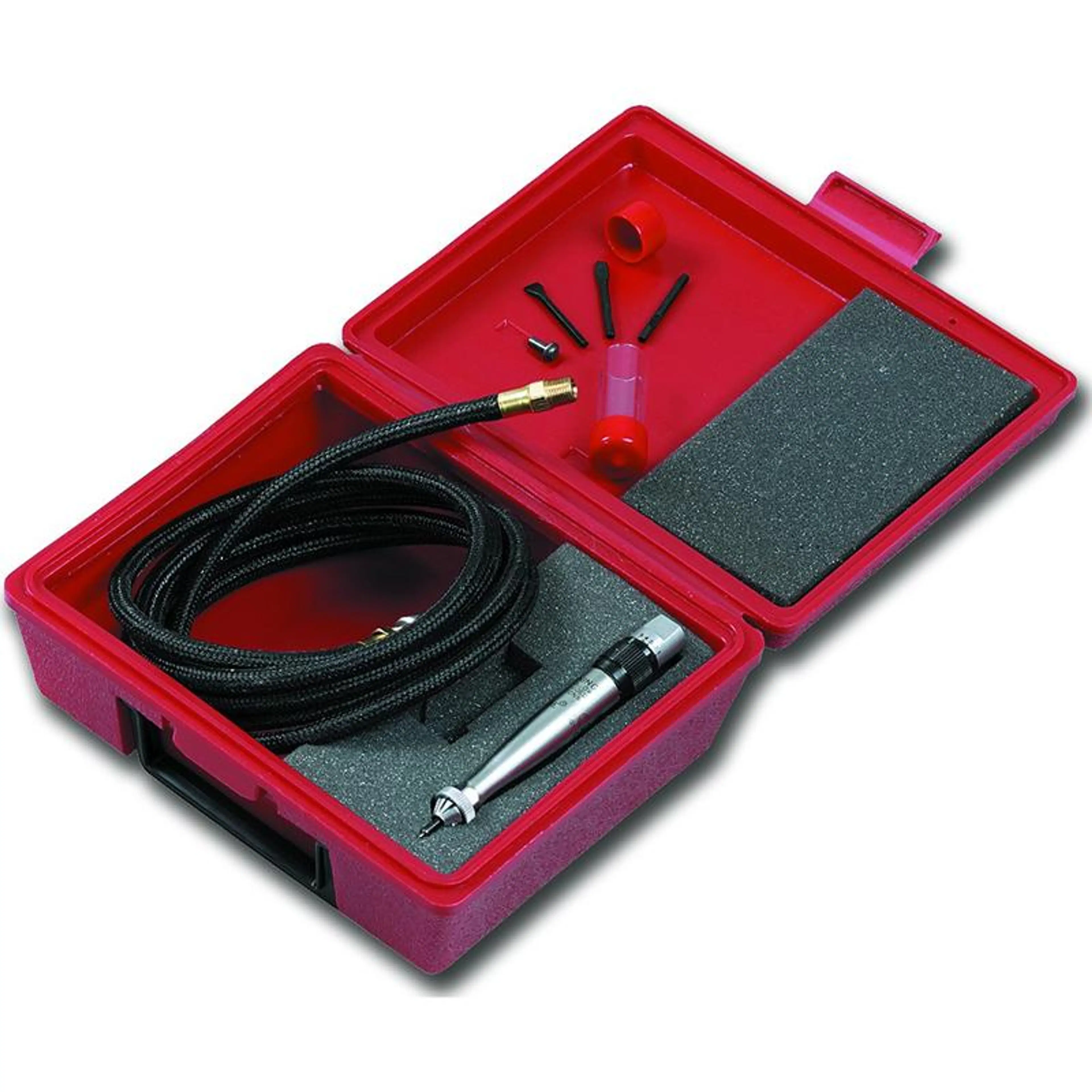

Chicago Pneumatic 1/8 in Hex Shank Engraving Pen Kit, 13500 bpm
CP9361-1
CP9361-1, 1/8 in Hex Shank Engraving Pen Kit, 13500 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Engraving Pen Kit at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Constructed of premium components
- Easy handling and Comfortable use
- Adjustable power for a variety of applications and materials such as: metals, plastics, ceramics, and glass
- Convertible into a light scaler
Features
- Air Scribe: Engraving pen and precision chisel hammer
- Highest durability in the market
- Hose 8ft (2.4 m) length with air filter
- Convertible to a hammer or a light scaler
- Lightweight for easy operation
| Technical Specifications | |
|---|---|
| Blow per minute | 13500 |
| Chisel shank | Hex |
| Chisel shank diameter (in) | 1/8 |
| Chisel shank diameter (mm) | 3 |
| Main Material type | Aluminium |
| Starting system | Rolling throttle |
| Air consumption at load | 0.1 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.19 in |
| Min hose diam (5 m hose length) | 5 mm |
| ItemType | product |
| ItemCountryOfOrigin | HU |
| Length (L) | 127 mm |
| Weight | 0.14 kg |
| Sound Power | 90 dB(A) |
| Sound Pressure | 79 dB(A) |
| Uncertainty vibration-K | 2.4 m/s² |
| Vibration | 5.1 m/s² |
| MPN | CP9361-1 |
