Chicago Pneumatic6151604200

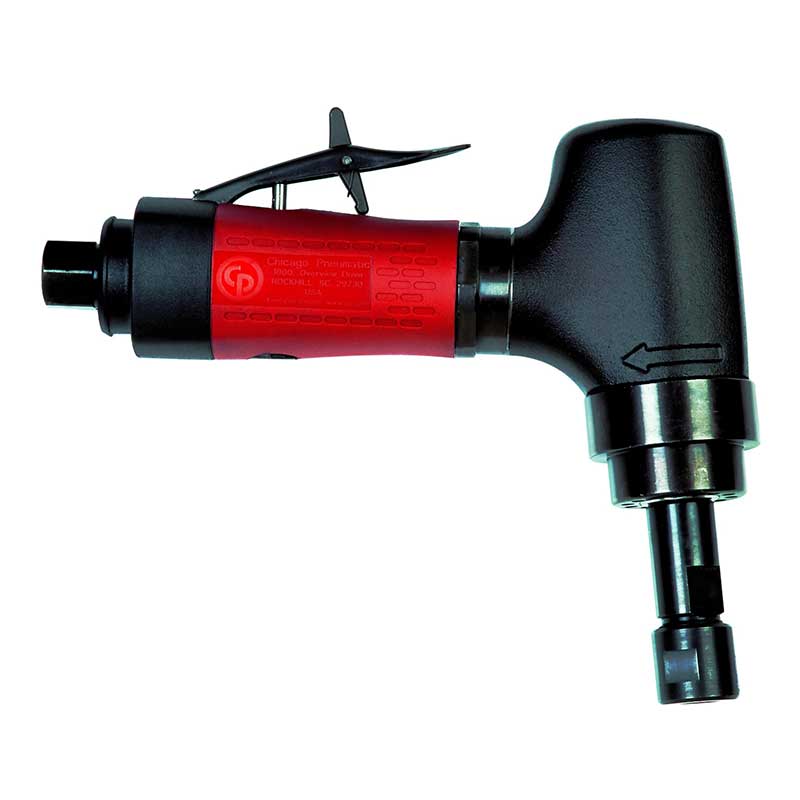

CP3030-520R | 1/4 in. Die Grinder, 20000 rpm, 0.7 hp, Rear exhaust
This CP3030 Die Grinder has a 0.7 hp motor with speeds up to 20,000 rpm. Designed to stand the test of time
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP3030-520R 1/4 in. Die Grinder Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP3030-520R 1/4 in. Die Grinder Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Die Grinder Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP3030-520R 1/4 in. Die Grinder CE Certificate (PDF)Open
6151604200 | CP3030-520R | 1/4 in. Die Grinder, 20000 rpm, 0.7 hp, Rear exhaustCP3030-520R
Price on request
Details
Product information
Overview
Chicago Pneumatic 1/4 in. Die Grinder, 20000 rpm, 0.7 hp, Rear exhaust
CP3030-520R
CP3030-520R, 1/4 in. Die Grinder, 20000 rpm, 0.7 hp, Rear exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/4 in. Die Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial die grinder
- Industrial grade durability up to 1000 hours maintenance intervals
- Operator comfort
- High precision
- Easy maintenance
Features
- Streamlined safety lever
- Rear Exhaust
- Gearless durable construction
- Compact composite handle
- 7° angle to allow working in tight angles
- 1/4" (6.35 mm) collet holder
- 0.7 hp (500 W) industrial grade motor
- 20,000 rpm free speed
| Technical Specifications | |
|---|---|
| Length (L) | 174 mm |
| Weight | 0.85 kg |
| Free Speed | 20000 rpm |
| Air consumption at free speed | 15 l/s |
| Air consumption at load | 14 l/s |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 91 dB(A) |
| Sound Pressure | 80 dB(A) |
| Vibration (m/s²) | <2.5 |
| Angle Type | 97° |
| Max power | 500 W |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Collet max capacity | 1/4 (6.4mm) |
| Collet/Collet holder/Collet nut type | Erickson serie 200 type |
| Exhaust | Rear |
| Governor type | NA |
| Main Material type | Aluminium, Composite over-sleeve |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| MPN | CP3030-520R |
| Features & Benefits | |
| Industrial Air Grinder | |
| 1000 hour service interval | |
