Chicago Pneumatic6151607070

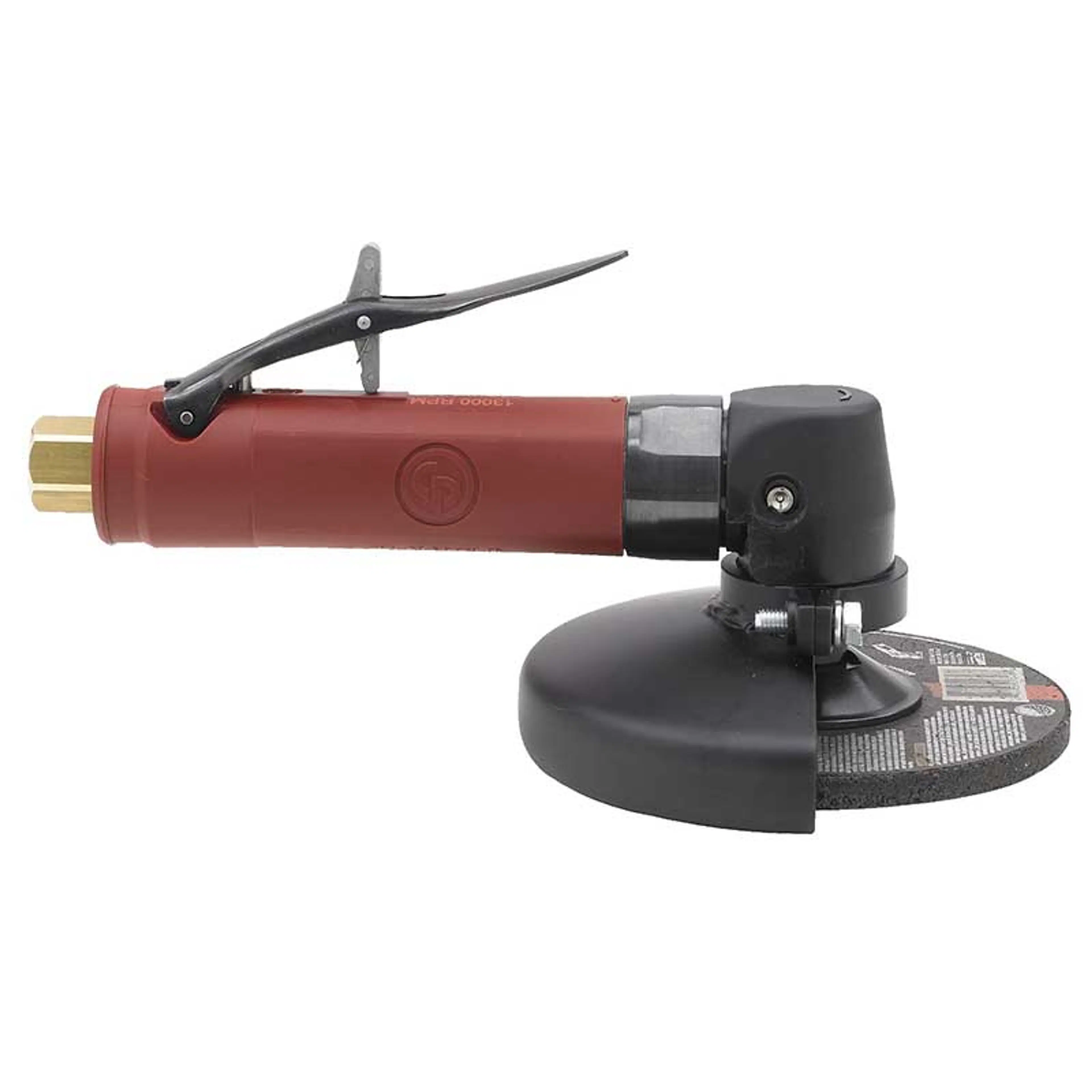

CP3019-20A3 | 3 in. Angle Wheel Grinder, 20000 rpm, 0.5 hp, Rear exhaust
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151607070 | CP3019-20A3 | 3 in. Angle Wheel Grinder, 20000 rpm, 0.5 hp, Rear exhaustCP3019-20A3
Price on request
Details
Product information
Overview
Chicago Pneumatic 3 in. Angle Wheel Grinder, 20000 rpm, 0.5 hp, Rear exhaust
CP3019-20A3
CP3019-20A3, 3 in. Angle Wheel Grinder, 20000 rpm, 0.5 hp, Rear exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 3 in. Angle Wheel Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial angle wheel grinder
- Optimal productivity
- Highest durability in demanding applications, up to 2000 hour service interval
- Superior Ergonomics
Features
- Highly durable bevel gear
- Compact body
- Insulating composite over housing
- Streamlined safety lever
- Rear exhaust
- 3" (73 mm) wheel capacity
- 0.5 hp (375 W) governed motor
- 20,000 rpm free speed
| Technical Specifications | |
|---|---|
| Free Speed | 20000 rpm |
| Air consumption at free speed | 6 l/s |
| Autobalancer | No |
| Guard max rotation | 360 ° |
| Guard positions | 0 |
| Main Material type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 3/8-24 UNF |
| Rotative guard type | Band |
| Spindle lock | No |
| Starting system | Safety lever |
| Swiveling guard | Key |
| Wheel/Disc diameter (in) | 3 |
| Wheel/Disc diameter (mm) | 75 |
| Sound Power | 93.6 dB(A) |
| Sound Pressure | 82.6 dB(A) |
| Uncertainty vibration-K | 3.2 m/s² |
| Vibration | 13.3 m/s² |
| Air consumption at load | 9 l/s |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.31 in |
| Min hose diam (5 m hose length) | 8 mm |
| Max power | 375 W |
| ItemType | product |
| ItemCountryOfOrigin | HU |
| Length (L) | 163 mm |
| Weight | 0.6 kg |
| MPN | CP3019-20A3 |
