Chicago Pneumatic6151607030

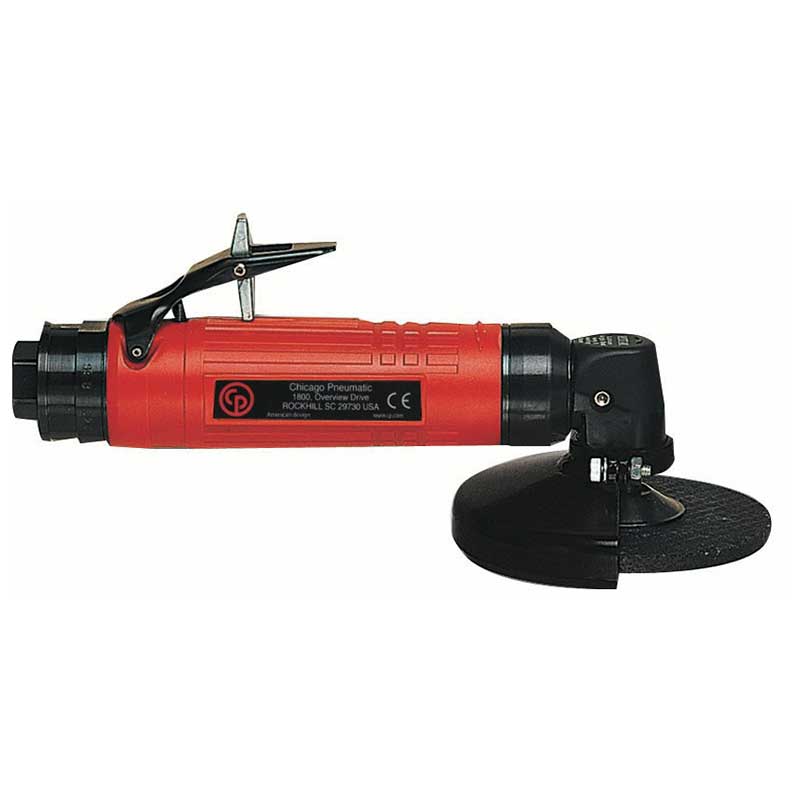

CP3109-13A4 | 4 in. Angle Wheel Grinder, 13000 rpm, 0.8 hp, Rear exhaust
This CP3109 Angle Grinder has a 0.8 hp motor with speeds up to 13,000 rpm. Made to withstand repeated drops, harsh chemicals and tough work environments.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP3109-13A4 4 in. Angle Wheel Grinder Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP3109-13A4 4 in. Angle Wheel Grinder Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Die Grinder Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP3109-13A4 4 in. Angle Wheel Grinder CE Certificate (PDF)Open
6151607030 | CP3109-13A4 | 4 in. Angle Wheel Grinder, 13000 rpm, 0.8 hp, Rear exhaustCP3109-13A4
Price on request
Details
Product information
Overview
Chicago Pneumatic 4 in. Angle Wheel Grinder, 13000 rpm, 0.8 hp, Rear exhaust
CP3109-13A4
CP3109-13A4, 4 in. Angle Wheel Grinder, 13000 rpm, 0.8 hp, Rear exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 4 in. Angle Wheel Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial angle wheel grinder
- High body durability
- Withstands rough usage
- Withstands extreme temperatures
Features
- Highly durable bevel gear
- Insulating composite over-housing
- Streamlined safety lever
- Steel housing
- 4" (100 mm) wheel capacity
- 0.8 hp (600 W) governed motor
- 13,000 rpm free speed
- Rear exhaust
| Technical Specifications | |
|---|---|
| Free Speed | 13000 rpm |
| Air consumption at free speed | 10 l/s |
| Autobalancer | No |
| Guard max rotation | 360 ° |
| Guard positions | 0 |
| Main Material type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 3/8-24 UNF |
| Rotative guard type | Band |
| Spindle lock | No |
| Starting system | Safety lever |
| Swiveling guard | Key |
| Wheel/Disc diameter (in) | 4 |
| Wheel/Disc diameter (mm) | 100 |
| Sound Power | 96 dB(A) |
| Sound Pressure | 85 dB(A) |
| Uncertainty vibration-K | 3 m/s² |
| Vibration | 9.3 m/s² |
| Air consumption at load | 15 l/s |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Max power | 600 W |
| ItemType | product |
| ItemCountryOfOrigin | HU |
| Length (L) | 217 mm |
| Weight | 1.2 kg |
| MPN | CP3109-13A4 |
| Features & Benefits | |
| High Performance | |
| Efficient and Durable | |
| Robost Construction | |
