Chicago Pneumatic6151607020

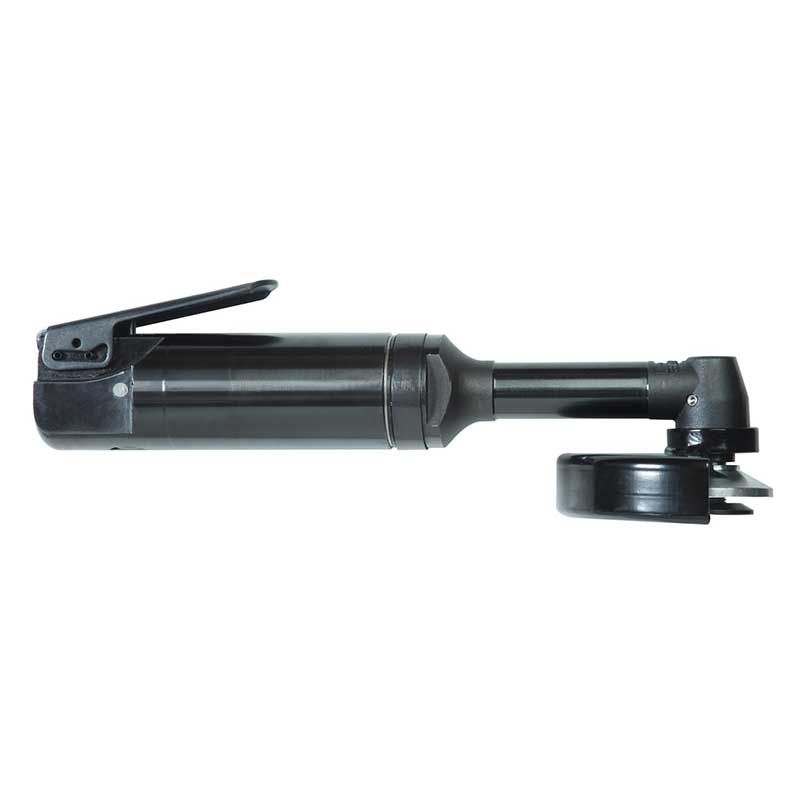

CP3040 GASTIM | 4 in. Extended Angle Wheel Grinder, 13500 rpm, 1 hp, Side exhaust
This CP3040 Angle Grinder has a 0.7 hp motor with speeds up to 13,500 rpm. Made to withstand repeated drops, harsh chemicals and tough work environments.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151607020 | CP3040 GASTIM | 4 in. Extended Angle Wheel Grinder, 13500 rpm, 1 hp, Side exhaustCP3040 GASTIM
Price on request
Details
Product information
Overview
Chicago Pneumatic 4 in. Extended Angle Wheel Grinder, 13500 rpm, 1 hp, Side exhaust
CP3040 GASTIM
CP3040 GASTIM, 4 in. Extended Angle Wheel Grinder, 13500 rpm, 1 hp, Side exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 4 in. Extended Angle Wheel Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial angle wheel grinder
- High body durability
- Withstands rough usage
- Withstands extreme temperatures
Features
- Extended body
- Durable bevel gear
- Robust machined steel housing
- Robust safety lever
- 4" (100 mm) wheel capacity
- 1 hp (750 W) motor
- 13,500 rpm free speed
- Side exhaust
| Technical Specifications | |
|---|---|
| Free Speed | 13500 rpm |
| Air consumption at free speed | 15 l/s |
| Guard positions | 0 |
| Main Material type | Steel |
| Output Spindle Thread | 3/8-24 UNF |
| Starting system | Safety lever |
| Wheel/Disc diameter (in) | 4 |
| Wheel/Disc diameter (mm) | 100 |
| Sound Power | 103 dB(A) |
| Sound Pressure | 92 dB(A) |
| Uncertainty vibration-K | 3.3 m/s² |
| Vibration | 9.6 m/s² |
| Air consumption at load | 12 l/s |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 13 mm |
| Max power | 750 W |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 270 mm |
| Weight | 1.7 kg |
| MPN | CP3040 GASTIM |
| Features & Benefits | |
| High Performance | |
| Efficient and Durable | |
| Robost Construction | |
