Chicago Pneumatic6151604050

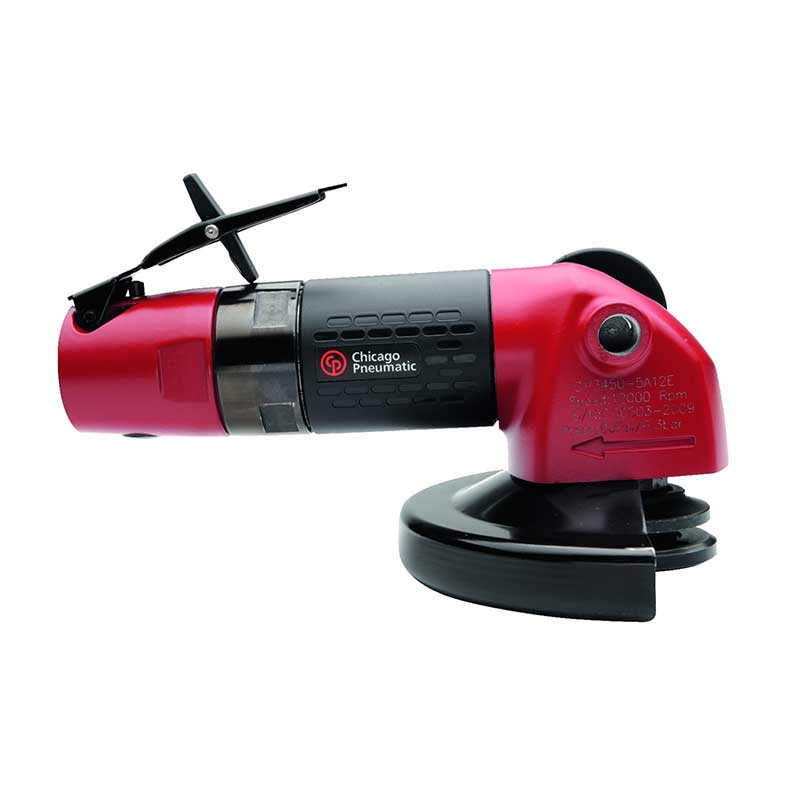

CP3450-12AB5 | 5 in. Angle Wheel Grinder, 12000 rpm, 1.1 hp, Rear exhaust
This CP3450 Angle Grinder has a 1.1 hp motor with speeds up to 12,000 rpm.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP3450-12AB5 5 in. Angle Wheel Grinder Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP3450-12AB5 5 in. Angle Wheel Grinder Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Die Grinder Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP3450-12AB5 5 in. Angle Wheel Grinder CE Certificate (PDF)Open
6151604050 | CP3450-12AB5 | 5 in. Angle Wheel Grinder, 12000 rpm, 1.1 hp, Rear exhaustCP3450-12AB5
Price on request
Details
Product information
Overview
Chicago Pneumatic 5 in. Angle Wheel Grinder, 12000 rpm, 1.1 hp, Rear exhaust
CP3450-12AB5
CP3450-12AB5, 5 in. Angle Wheel Grinder, 12000 rpm, 1.1 hp, Rear exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 5 in. Angle Wheel Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial angle wheel grinder
- High productivity
- Industrial grade durability with up to a 1,000 hour maintenance interval
- Light body
Features
- Constant lubrication bevel gear design
- Low profile angle head design
- Insulating composite cover
- 5" (125 mm) wheel capacity
- 1.1 hp (810 W) high torque motor
- 12,000 rpm free speed
- 5/8" spindle
- Orientable safety lever
- Optional low vibration side handle
- Rear exhaust
| Technical Specifications | |
|---|---|
| Free Speed | 12000 rpm |
| Air consumption at free speed | 18 l/s |
| Autobalancer | No |
| Guard max rotation | 0 ° |
| Guard positions | 1 |
| Main Material type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 5/8-11 UNC |
| Rotative guard type | Screws |
| Spindle lock | No |
| Starting system | Safety lever |
| Swiveling guard | No |
| Wheel/Disc diameter (in) | 5 |
| Wheel/Disc diameter (mm) | 125 |
| Sound Power | 106 dB(A) |
| Sound Pressure | 95 dB(A) |
| Uncertainty vibration-K | 2.8 m/s² |
| Vibration | 8.5 m/s² |
| Air consumption at load | 17 l/s |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 13 mm |
| Max power | 810 W |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 231 mm |
| Weight | 1.7 kg |
| MPN | CP3450-12AB5 |
| Features & Benefits | |
| High Performance | |
| 1000 hour service interval | |
