Chicago Pneumatic6151607190

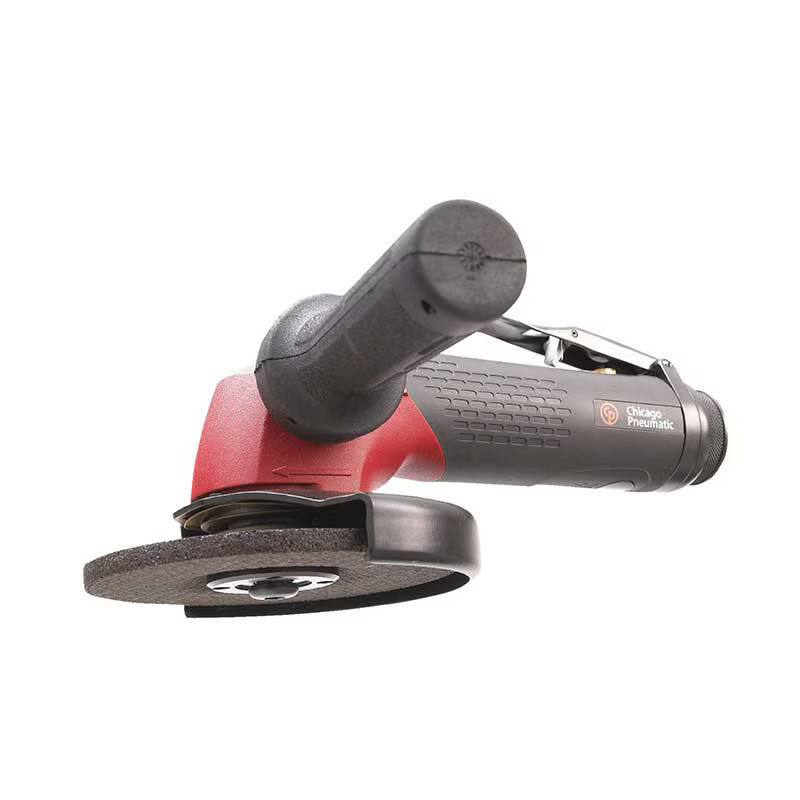

CP3650-120AB5VK | 5 in. Angle Wheel Grinder, 12000 rpm, 2.3 hp, auto balancer
This CP3650 Angle Grinder has a 2.4 hp motor with speeds up to 12,000 rpm. internal contamination-free air controller to maintain speed and maximize material removal
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP3650-120AB5VK 5 in. Angle Wheel Grinder Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP3650-120AB5VK 5 in. Angle Wheel Grinder Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Die Grinder Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP3650-120AB5VK 5 in. Angle Wheel Grinder CE Certificate (PDF)Open
6151607190 | CP3650-120AB5VK | 5 in. Angle Wheel Grinder, 12000 rpm, 2.3 hp, auto balancerCP3650-120AB5VK
Price on request
Details
Product information
Overview
Chicago Pneumatic 5 in. Angle Wheel Grinder, 12000 rpm, 2.3 hp, auto balancer
CP3650-120AB5VK
CP3650-120AB5VK, 5 in. Angle Wheel Grinder, 12000 rpm, 2.3 hp, auto balancer by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 5 in. Angle Wheel Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial angle wheel grinder
- Industrial grade durability with up to a 2,000 hour maintenance interval
- Superior torque for maximal productivity
- Superior ergonomics
Features
- High power and torque motor
- Superior durability bevel gearing
- Spindle lock button
- Keyless rotative guard
- Auto balancer
- 5" (125 mm) wheel capacity
- 5/8"-11 spindle thread
- 2.3 hp (1,700 W) high performance governed motor
- 12,000 rpm free speed
| Technical Specifications | |
|---|---|
| Free Speed | 12000 rpm |
| Air consumption at free speed | 20 l/s |
| Autobalancer | Yes |
| Guard max rotation | 130 ° |
| Guard positions | 5 |
| Main Material type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 5/8-11 UNC |
| Rotative guard type | Pull and Turn |
| Spindle lock | Yes |
| Starting system | Safety lever |
| Swiveling guard | Keyless |
| Wheel/Disc diameter (in) | 5 |
| Wheel/Disc diameter (mm) | 125 |
| Sound Power | 90 dB(A) |
| Sound Pressure | 79 dB(A) |
| Uncertainty vibration-K | 1.1 m/s² |
| Vibration | 4.5 m/s² |
| Air consumption at load | 32 l/s |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Max power | 1800 W |
| ItemType | product |
| ItemReplacementMaterial | 6151607900 |
| ItemCountryOfOrigin | HU |
| Length (L) | 238 mm |
| Side to Center | 26.8 mm |
| Weight | 19 kg |
| MPN | CP3650-120AB5VK |
| Features & Benefits | |
| Superlative Performance | |
| 2000 hour service interval | |
