Chicago Pneumatic6151607340

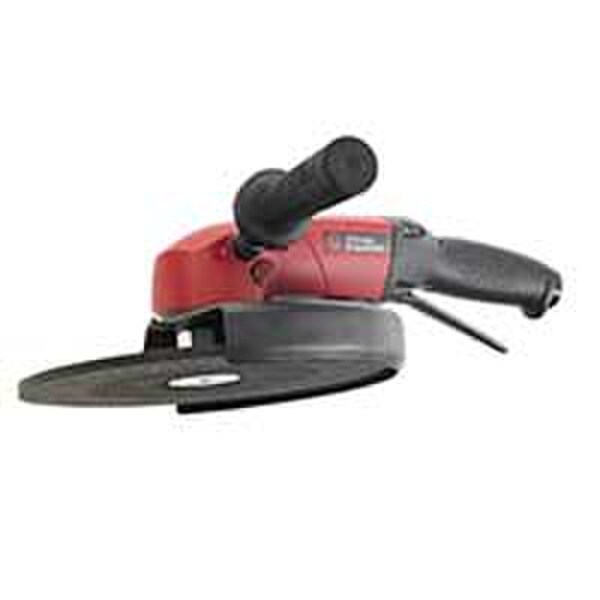

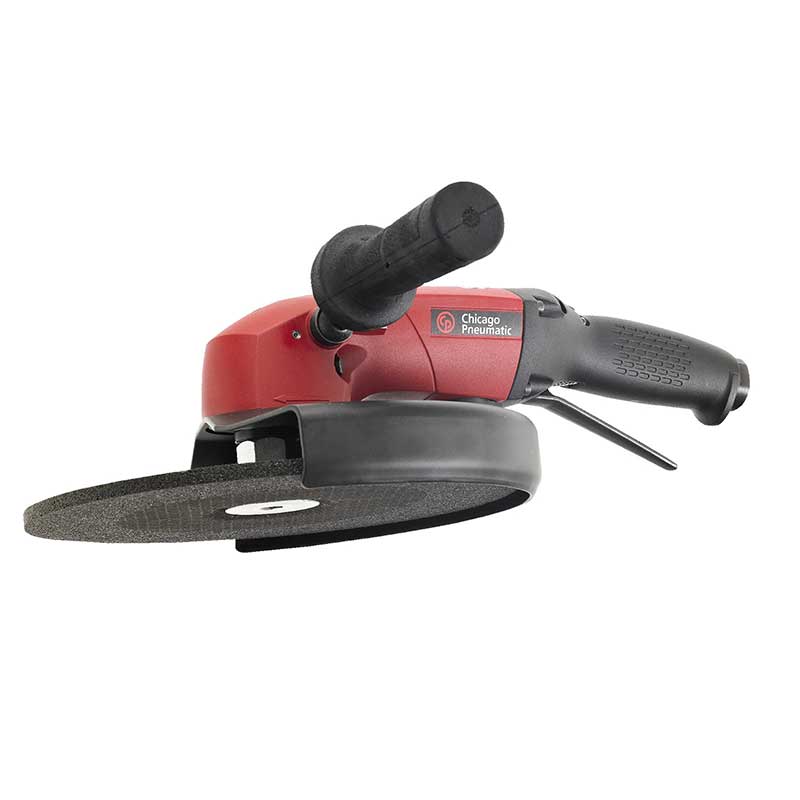

CP3850-60AB9V | 9 in. Angle Wheel Grinder, 6000 rpm, 2.8 hp, Orientable exhaust
This CP3850 Angle Grinder has a 2.8 hp motor with speeds up to 6,000 rpm. Will help you tackle the biggest jobs.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP3850-60AB9V 9 in. Angle Wheel Grinder Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP3850-60AB9V 9 in. Angle Wheel Grinder Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Die Grinder Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP3850-60AB9V 9 in. Angle Wheel Grinder CE Certificate (PDF)Open
6151607340 | CP3850-60AB9V | 9 in. Angle Wheel Grinder, 6000 rpm, 2.8 hp, Orientable exhaustCP3850-60AB9V
Price on request
Details
Product information
Overview
Chicago Pneumatic 9 in. Angle Wheel Grinder, 6000 rpm, 2.8 hp, Orientable exhaust
CP3850-60AB9V
CP3850-60AB9V, 9 in. Angle Wheel Grinder, 6000 rpm, 2.8 hp, Orientable exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 9 in. Angle Wheel Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial angle wheel grinder
- Industrial grade durability with up to a 2,000 hour maintenance interval
- Superior torque for maximal productivity
- Superior ergonomics
Features
- Low profile angle head
- Superior durability bevel gearing
- Double action safety lever
- Curved handle housing
- 9" (230 mm) wheel capacity
- 2.8 hp (2,100 W) high performance governed motor
- 6,000 rpm free speed
- Integrated silencer
- Orientable exhaust
- Spindle lock button
- Vibration damping multi-position side handle
- ANSI certification / not for CE Markets
| Technical Specifications | |
|---|---|
| Model | CP3850-60AB9V |
| Type | Angle Wheel Grinder |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 340 |
| Free Speed (RPM) | 6000 |
| SKU | 6151607340 |
| Stock Code | 2 |
| Exhaust | Orientable |
| Weight (lbs) | 7.00 |
| Wheel Size (in) | 9 |
| Spindle Thread (in) | 5/8-11 |
| Series | CP3850 |
| Air Inlet NPT (in) | 1/2 |
| Rated Power (hp) | 2.8 |
| Air Consp. @ Free Speed (L/s) | 21 |
| MPN | CP3850-60AB9V |
| Features & Benefits | |
| Superlative Performance | |
| 2000 hour service interval | |
