CP3550-120AC4 | Angle Grinder
This CP350 Die Grinder has a 1.5 hp motor with speeds up to 12,000 rpm. Powerful, lube-free 0.74 KW motor
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151607750 | CP3550-120AC4 | Angle GrinderCP3550-120AC4
Price on request
Details
Product information
Overview

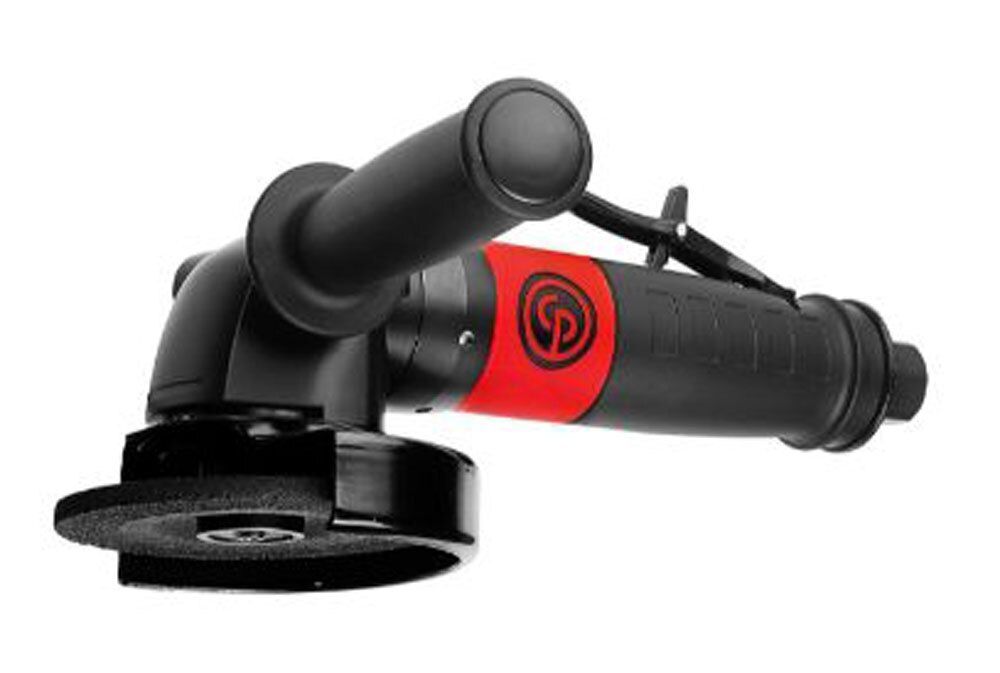

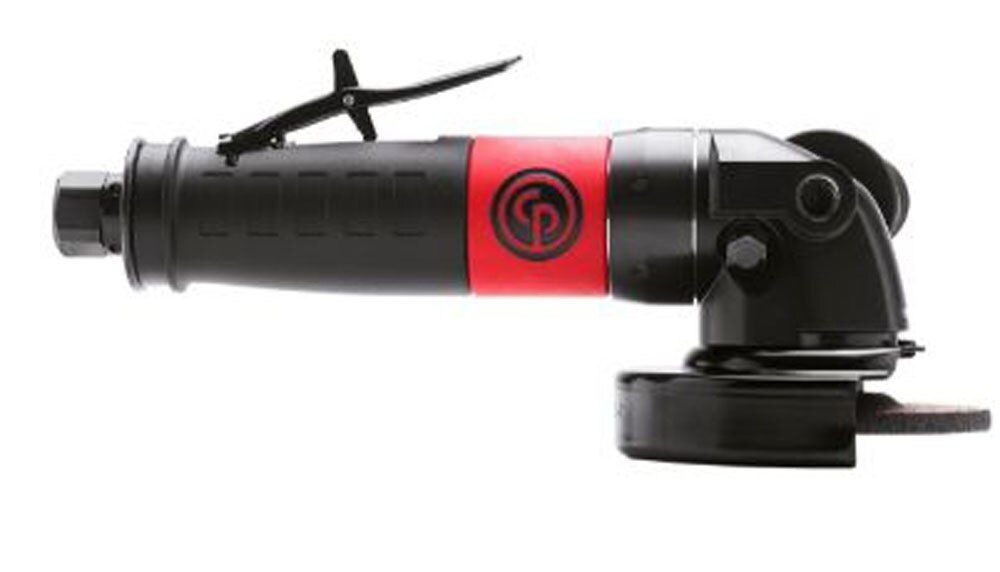

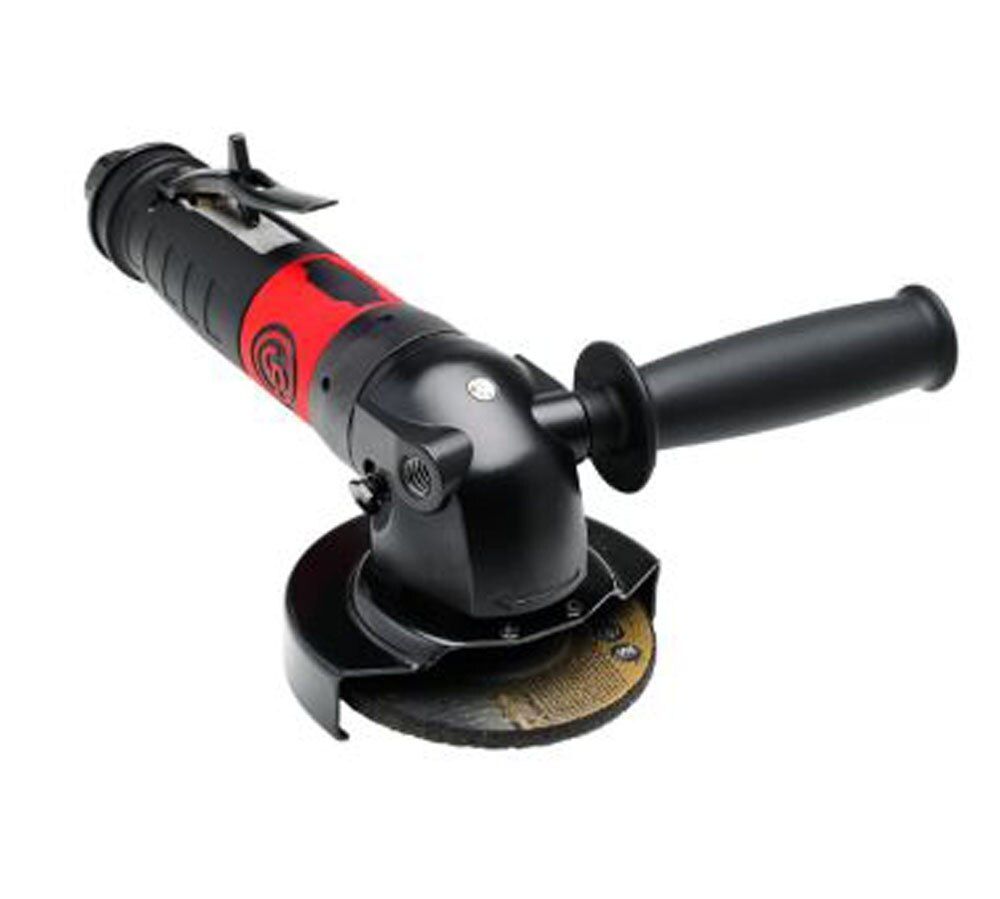

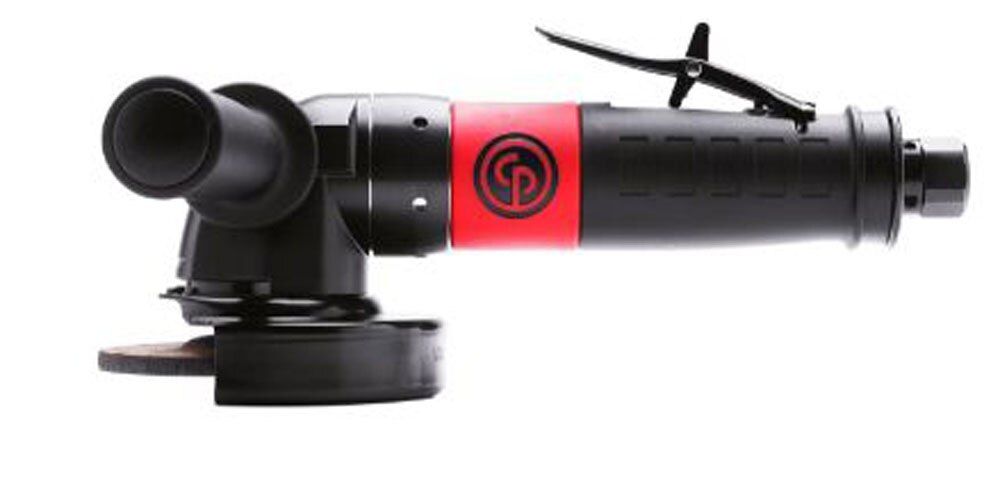

Chicago Pneumatic Angle Grinder
CP3550-120AC4
Angle Grinder, model CP3550-120AC4, by Chicago Pneumatic. Do you see the CP3550-120AC4 at a much lower rate? Contact Customer Service by phone or email to price match!
| Technical Specifications | |
|---|---|
| Free Speed | 12000 rpm |
| Air consumption at free speed | 17 l/s |
| Autobalancer | No |
| Guard max rotation | 130 ° |
| Guard positions | 5 |
| Main Material type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 3/8-24 UNF |
| Rotative guard type | Pull and Turn |

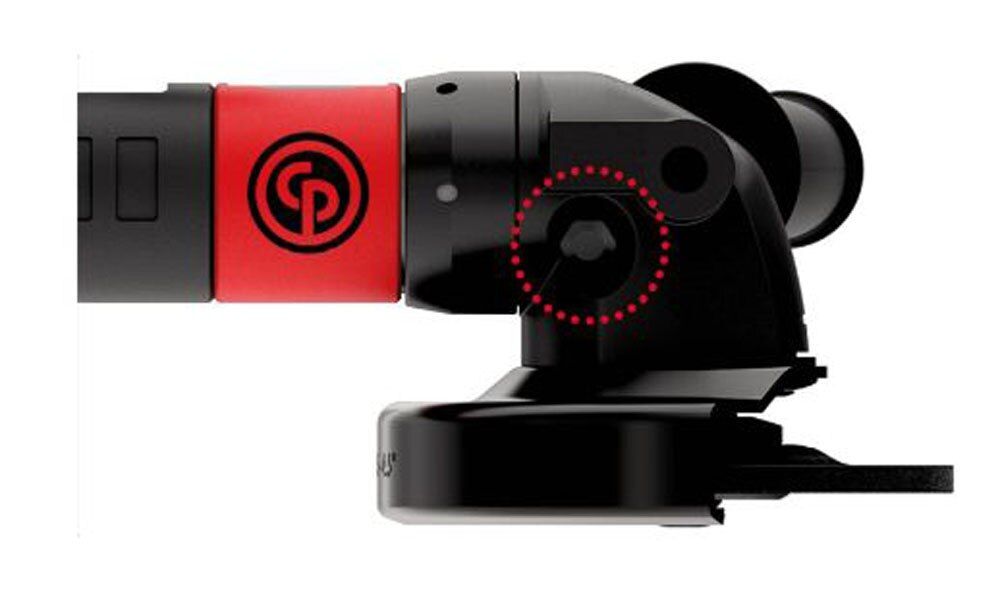

| Spindle lock | Yes |
| Starting system | Safety lever |
| Swiveling guard | Keyless |
| Wheel/Disc diameter (in) | 4 |
| Wheel/Disc diameter (mm) | 100 |
| Sound Power | 95 dB(A) |
| Sound Pressure | 84 dB(A) |
| Uncertainty vibration-K | 2.6 m/s² |
| Vibration | 6 m/s² |
| Air consumption at load | 26 l/s |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Max power | 1100 W |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Height (H) | 94 mm |
| Length (L) | 252 mm |
| Side to Center | 29 mm |
| Weight | 1.7 kg |
| MPN | CP3550-120AC4 |
| Features & Benefits | |
| High Performance | |
| 2000 hour service interval | |
| 1000 hour service interval | |
