Chicago Pneumatic6151620370

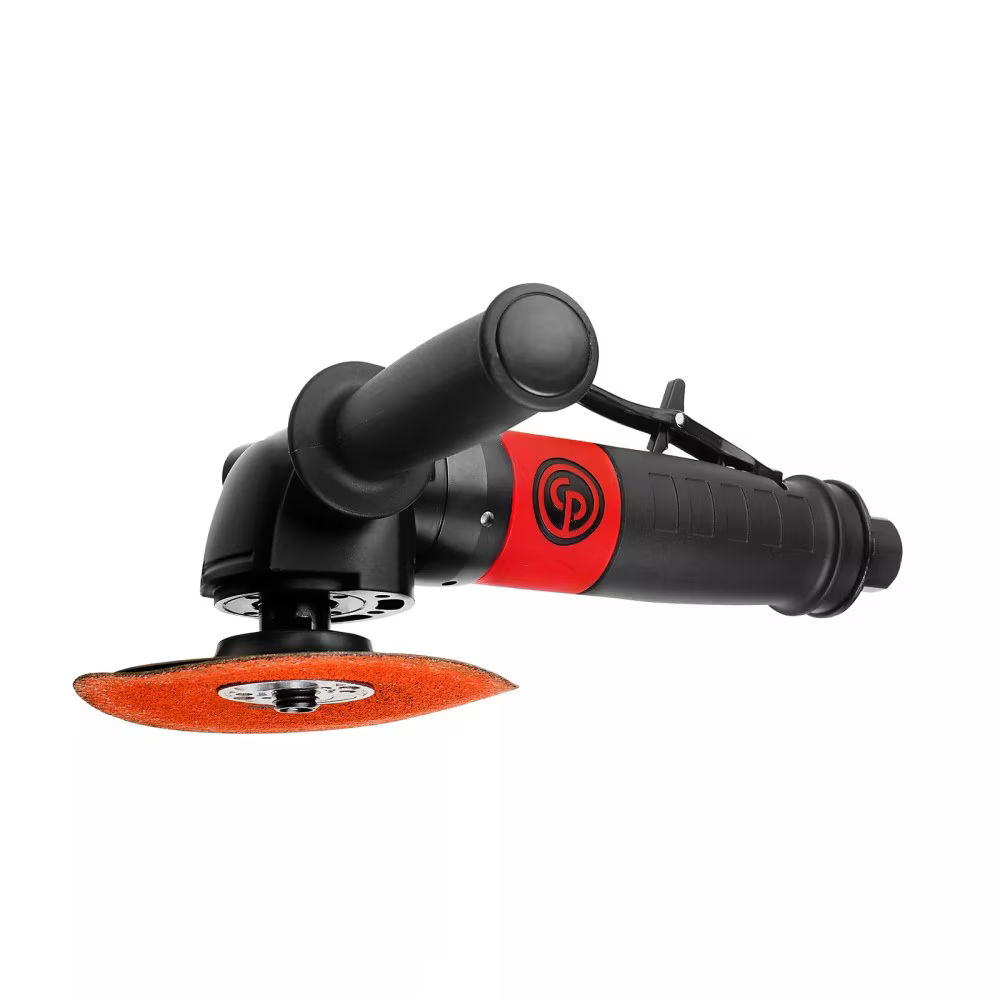

CP3550-120AB | Angle Sander
6151620370 | CP3550-120AB | Angle Sander
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151620370 | CP3550-120AB | Angle SanderCP3550-120AB
Price on request
Details
Product information
Overview
Chicago Pneumatic Angle Sander
CP3550-120AB
Angle Sander, model CP3550-120AB, by Chicago Pneumatic. Do you see the CP3550-120AB at a much lower rate? Contact Customer Service by phone or email to price match!
| Technical Specifications | |
|---|---|
| Autobalancer | No |
| Circular Abrasive Pad Size (in) | 5 |
| Circular Abrasive Pad Size (mm) | 125 |
| Exhaust | Rear |
| Governor type | Ball |
| Main Material type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 5/8-11 UNC |
| Pad holes number | 0 |
| Rotative inlet | Yes |
| Spindle lock | Yes |
| Starting system | Safety lever |
| Sound Power | 95 dB(A) |
| Sound Pressure | 84 dB(A) |
| Uncertainty vibration-K | 3.4 m/s² |
| Air consumption at load | 17 l/s |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Max power | 1100 W |
| Height (H) | 94 mm |
| Length (L) | 249 mm |
| Side to Center | 29 mm |
| Weight | 1.5 kg |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Free Speed | 12000 rpm |
| Air consumption at free speed | 26 l/s |
| Overspeed shut-off | No |
| MPN | CP3550-120AB |
