Chicago Pneumatic6151620020
CP5080-4200H18 | 1/2 x 18 in. Belt Sander, 0.54 hp, 20000 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151620020 | CP5080-4200H18 | 1/2 x 18 in. Belt Sander, 0.54 hp, 20000 rpmCP5080-4200H18
Price on request
Details
Product information
Overview

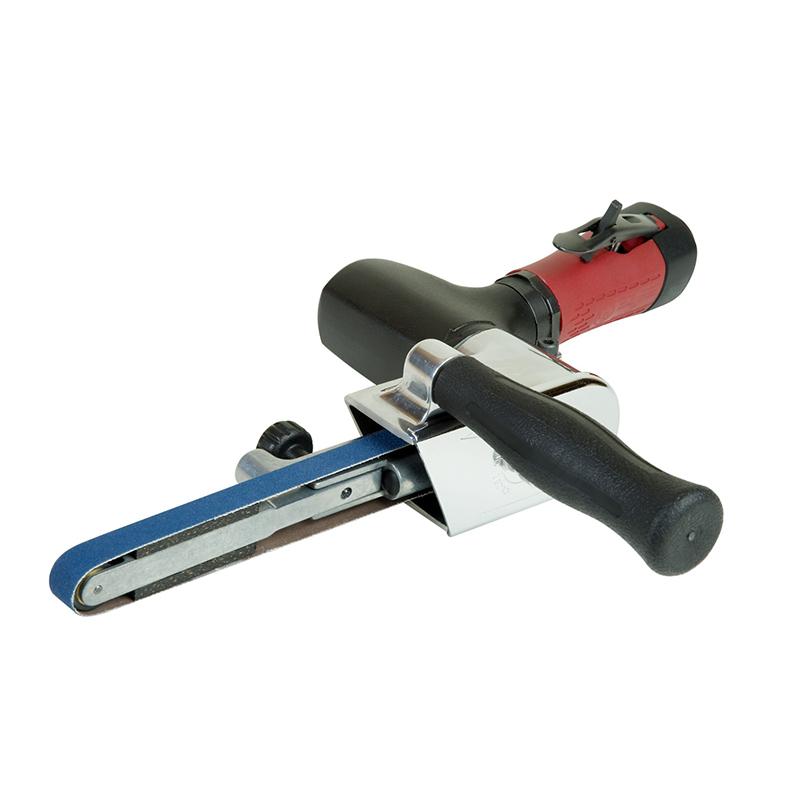

Chicago Pneumatic 1/2 x 18 in. Belt Sander, 0.54 hp, 20000 rpm
CP5080-4200H18
CP5080-4200H18, 1/2 x 18 in. Belt Sander, 0.54 hp, 20000 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Belt Sander at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Industrial belt sander
- Ergonomic handle and high speed
- High durability thanks to simple and robust design
- Ideal for versatile sanding applications
Features
- Designed for work in tight spots
- Sanding head pivots 360° for multi position sanding
- Easy change of abrasives and contact arm
- 18" (457 mm) belt sander
- 0.5 hp (400 W)
| Technical Specifications | |
|---|---|
| Length (L) | 340 mm |
| Weight | 1.28 kg |
| Free Speed | 20000 rpm |
| Air consumption at free speed | 12 l/s |
| Overspeed shut-off | No |
| Air consumption at load | 21 l/s |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.25 in |
| Min hose diam (5 m hose length) | 10 mm |
| Max power | 400 W |
| Autobalancer | No |
| Belt Size WxL (in) | 1/2x18 |
| Belt Size WxL (mm) | 13x457 |
| Exhaust | Rear |
| Main Material type | Aluminium, Composite over-sleeve |
| Rotative inlet | No |
| Starting system | Safety lever |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Sound Power | 91 dB(A) |
| Sound Pressure | 80 dB(A) |
| Vibration (m/s²) | <2.5 |
| MPN | CP5080-4200H18 |
