Chicago Pneumatic6151580250

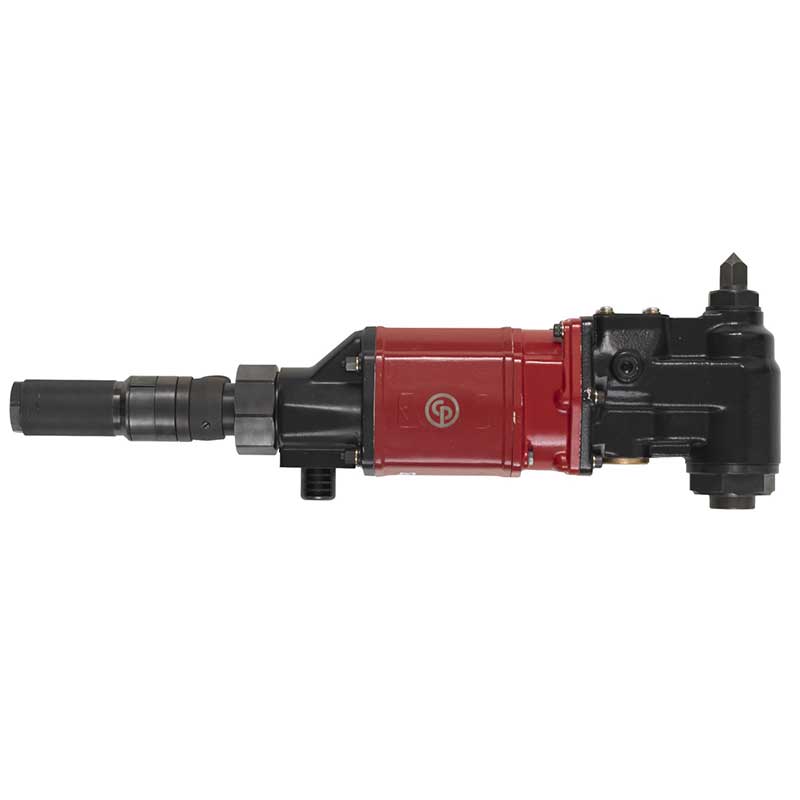

CP1720R22 | 7/8 in. Pneumatic Air Corner Drill, reversible, 1.2 hp, 430 rpm, 59.3 ft lb stall
Compact drills for Industrial production, intensive duty with high durability and operator comfort.
$3,154.61List $3,943.27
Save $788.66Total$3,154.61Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorized service
- PDFChicago Pneumatic CP1720R22 7/8 in. Pneumatic Air Corner Drill Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP1720R22 7/8 in. Pneumatic Air Corner Drill Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Drill and Air Tapper Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP1720R22 7/8 in. Pneumatic Air Corner Drill CE Certificate (PDF)Open
6151580250 | CP1720R22 | 7/8 in. Pneumatic Air Corner Drill, reversible, 1.2 hp, 430 rpm, 59.3 ft lb stallCP1720R22
Total$3,154.61
1
Details
Product information
Overview
Chicago Pneumatic 7/8 in. Pneumatic Air Corner Drill, reversible, 1.2 hp, 430 rpm, 59.3 ft lb stall
CP1720R22
CP1720R22, 7/8 in. Pneumatic Air Corner Drill, reversible, 1.2 hp, 430 rpm, 59.3 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 7/8 in. Pneumatic Air Corner Drill at a lower price? Call or email and we'll match the price!
Benefits
- Super Industrial drills designed for intensive duty and high durability with precision
- Ideal for drilling, reaming & tapping of mild steel, cast iron
Features
- 7/8" (22 mm) reversible corner drill, 430rpm of free speed
- Powerfull with 1.2 hp (890 W) motor
- Morse Taper No.2 drill socket
- Good for drilling up to 7/8", reaming & tapping up to 3/4"
- Self Return rolling throttle ensures the safety control
- Excellent durable gearbox ensures the strong drilling
| Technical Specifications | |
|---|---|
| Model | CP1720R22 |
| Type | Drill |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 472 |
| Free Speed (RPM) | 430 |
| SKU | 6151580250 |
| Stock Code | 2 |
| Style | T-Handle |
| Max Torque (Ft Lb) | 59.3 |
| Weight (lbs) | 15.4 |
| Stall Torque (ft lb) | 59.3 |
| Series | Low Speed |
| Spindle | No. 2 Morse Taper |
| Stall Torque (in lb) | 711.6 |
| Air Inlet NPT (in) | 1/2 |
| Chuck Capacity (in) | 7/8 |
| Rated Power (hp) | 1.2 |
| Reversible | Yes |
| Air Consp. @ Free Speed (L/s) | 25 |
| MPN | CP1720R22 |
| Features & Benefits | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle | |
| High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH | |
| High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle,High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH,High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
