Chicago Pneumatic6151580260

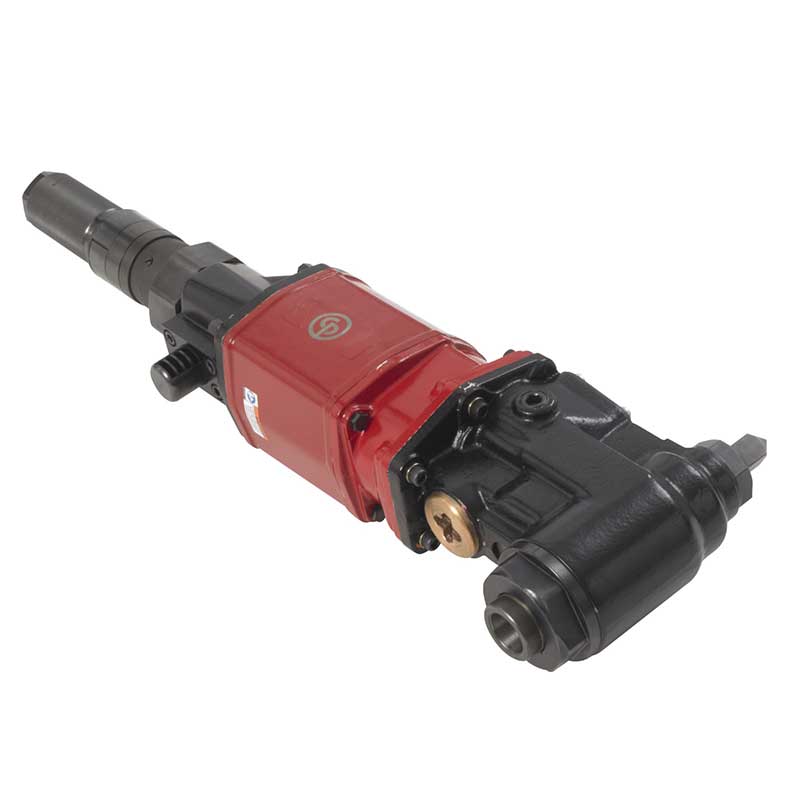

CP1720R32 | 1-1/4 in. Pneumatic Air Corner Drill, reversible, 2.2 hp, 350 rpm, 130.1 ft lb stall
Compact drills for Industrial production, intensive duty with high durability and operator comfort.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP1720R32 1-1/4 in. Pneumatic Air Corner Drill Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP1720R32 1-1/4 in. Pneumatic Air Corner Drill Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Drill and Air Tapper Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP1720R32 1-1/4 in. Pneumatic Air Corner Drill CE Certificate (PDF)Open
6151580260 | CP1720R32 | 1-1/4 in. Pneumatic Air Corner Drill, reversible, 2.2 hp, 350 rpm, 130.1 ft lb stallCP1720R32
Price on request
Details
Product information
Overview
Chicago Pneumatic 1-1/4 in. Pneumatic Air Corner Drill, reversible, 2.2 hp, 350 rpm, 130.1 ft lb stall
CP1720R32
CP1720R32, 1-1/4 in. Pneumatic Air Corner Drill, reversible, 2.2 hp, 350 rpm, 130.1 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1-1/4 in. Pneumatic Air Corner Drill at a lower price? Call or email and we'll match the price!
Benefits
- Designed for super intensive duty, high durability and precision in industrial maintenance and production applications
- Ideal for drilling, reaming & tapping of mild steel, cast iron
Features
- 1-1/4" (32 mm) reversible corner drill, 350 rpm of free speed
- Powerfull 2.2 hp (1,630 W) motor
- Morse Taper No.3 drill socket
- Good for drilling up to 1-1/4" (32 mm), reaming & tapping up to 1" (25 mm)
- Self Return rolling throttle ensures the safety control
- Excellent durable gearbox ensures the strong drilling
| Technical Specifications | |
|---|---|
| Model | CP1720R32 |
| Type | Drill |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 578 |
| Free Speed (RPM) | 350 |
| SKU | 6151580260 |
| Stock Code | 2 |
| Style | T-Handle |
| Max Torque (Ft Lb) | 130.1 |
| Weight (lbs) | 29.7 |
| Stall Torque (ft lb) | 130.1 |
| Series | Low Speed |
| Spindle | No. 3 Morse Taper |
| Stall Torque (in lb) | 1561.2 |
| Air Inlet NPT (in) | 1/2 |
| Chuck Capacity (in) | 1-1/4 |
| Rated Power (hp) | 2.2 |
| Reversible | Yes |
| Air Consp. @ Free Speed (L/s) | 30 |
| MPN | CP1720R32 |
| Features & Benefits | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle | |
| High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH | |
| High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle,High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH,High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
