Chicago Pneumatic6151580270
CP1720R50 | 2 in. Pneumatic Air Corner Drill, reversible, 2.2 hp, 140 rpm, 289.3 ft lb stall
Compact drills for Industrial production, intensive duty with high durability and operator comfort.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP1720R50 2 in. Pneumatic Air Corner Drill Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP1720R50 2 in. Pneumatic Air Corner Drill Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Drill and Air Tapper Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP1720R50 2 in. Pneumatic Air Corner Drill CE Certificate (PDF)Open
6151580270 | CP1720R50 | 2 in. Pneumatic Air Corner Drill, reversible, 2.2 hp, 140 rpm, 289.3 ft lb stallCP1720R50
Price on request
Details
Product information
Overview

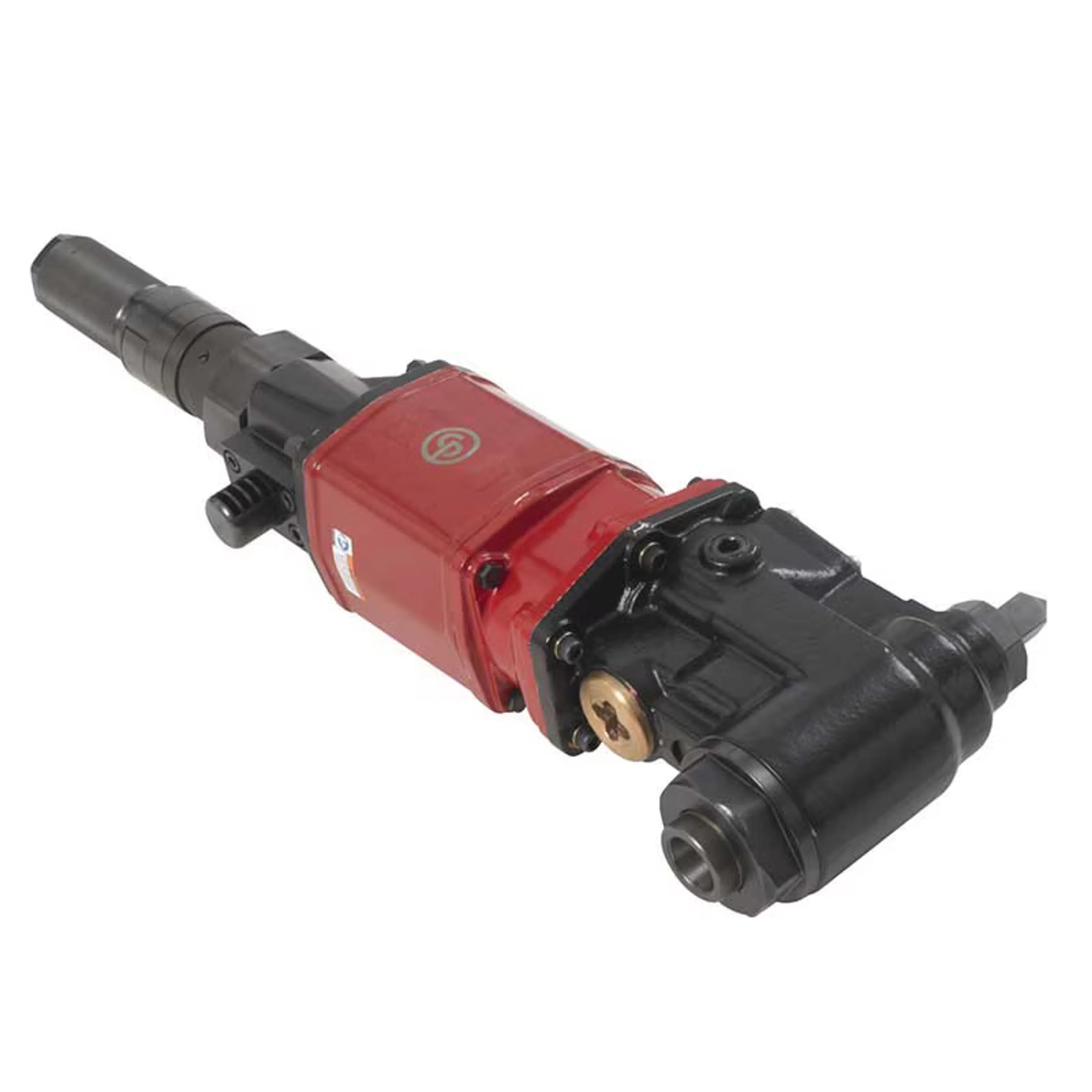

Chicago Pneumatic 2 in. Pneumatic Air Corner Drill, reversible, 2.2 hp, 140 rpm, 289.3 ft lb stall
CP1720R50
CP1720R50, 2 in. Pneumatic Air Corner Drill, reversible, 2.2 hp, 140 rpm, 289.3 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 2 in. Pneumatic Air Corner Drill at a lower price? Call or email and we'll match the price!
Benefits
- Super Industrial drills designed for super-intensive duty and high durability with precision
- Ideal for drilling, reaming, tapping of mild steel, cast iron, forged steel
Features
- 2" (50 mm) reversible corner drill, 140rpm of free speed
- Powerfull with 2.2 hp (1630 W) motor
- Morse Taper No.4 drill socket
- Good for drilling up to 2", reaming & tapping up to 2"
- Self Return rolling throttle ensures the safety control
- Excellent durable gearbox ensures the strong drilling
| Technical Specifications | |
|---|---|
| Chuck max capacity (in) | 2 |
| Chuck max capacity (mm) | 50 |
| Chuck type | Morse taper 4 |
| Handle type | Corner |
| Main Material type | Aluminum |
| Reversible | Yes |
| Starting system | Self return rolling throttle |
| Sound Power | 118 dB(A) |
| Sound Pressure | 107 dB(A) |
| Uncertainty vibration-K | 0.6 m/s² |
| Air consumption at load | 38 l/s |
| Air inlet thread size (in) | 1/2 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.75 in |
| Min hose diam (5 m hose length) | 19 mm |
| Max power | 1630 W |
| Stall torque | 392 Nm |
| Free Speed | 140 rpm |
| Air consumption at free speed | 0 l/s |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 595 mm |
| Weight | 16 kg |
| MPN | CP1720R50 |
| Features & Benefits | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle | |
| High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH | |
| High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle,High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH,High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
