Chicago Pneumatic8941071101
CP7110 | 0.401 in. Round Shank Heavy Duty Air Hammer, 3200 bpm
Heavy-duty pistol grip hammer. Low vibrations to maximize productivity
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8941071101 | CP7110 | 0.401 in. Round Shank Heavy Duty Air Hammer, 3200 bpmCP7110
Price on request
Details
Product information
Overview

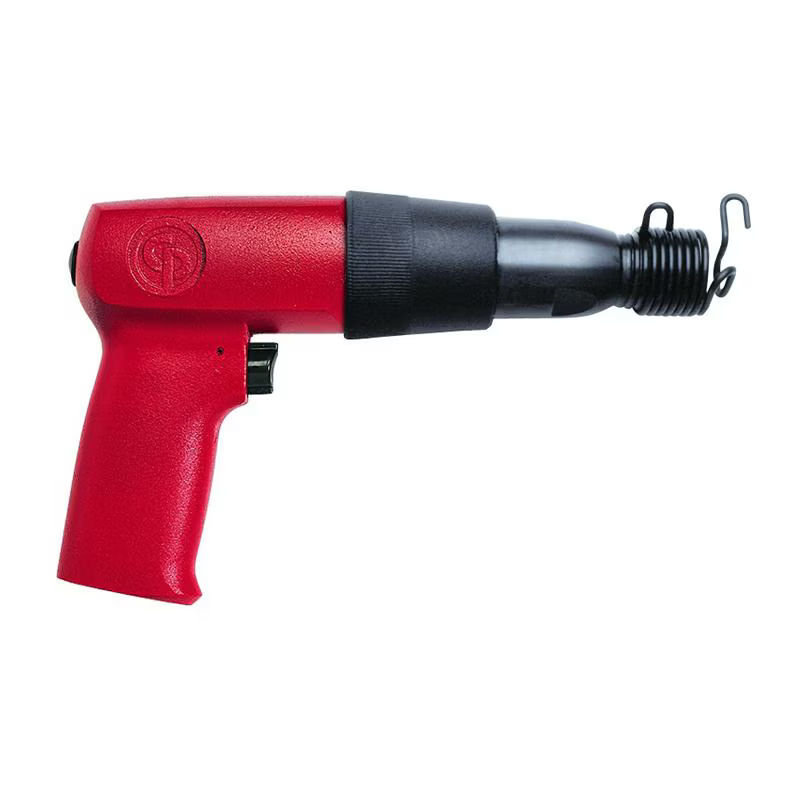

Chicago Pneumatic 0.401 in. Round Shank Heavy Duty Air Hammer, 3200 bpm
CP7110
CP7110, 0.401 in. Round Shank Heavy Duty Air Hammer, 3200 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Heavy Duty Air Hammer at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Maximize operator comfort and control
- Smooth operation
- Low vibrations to maximize productivity
Features
- Heavy-duty pistol grip hammer
- Standard .401 round shank
- Internal muffler minimizes exhaust sound
- Unique vibration damping
- Teasing trigger for slow start-up
| Technical Specifications | |
|---|---|
| Bore diameter | 19 mm |
| Length (L) | 230 mm |
| Stroke | 67 mm |
| Weight | 1.7 kg |
| Air consumption at load | 6.9 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Blow per minute | 3200 |
| Chisel shank | Round |
| Chisel shank diameter (in) | 0.401 |
| Chisel shank diameter (mm) | 10.2 |
| Energy | 7.2 J |
| Main Material type | Aluminium, Steel |
| Max rivet size (in) | 1/4 |
| Max rivet size (mm) | 6.4 |
| Max rivet size steel (in) | 3/16 |
| Max rivet size steel (mm) | 4.8 |
| Starting system | Trigger |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Sound Power | 109 dB(A) |
| Uncertainty vibration-K | 2.9 m/s² |
| Vibration | 6 m/s² |
| MPN | CP7110 |
| Features & Benefits | |
| Standard .401 round shank | |
| Internal muffler minimizes exhaust sound | |
| Teasing trigger for slow start-up | |
| Standard .401 round shank,Internal muffler minimizes exhaust sound,Teasing trigger for slow start-up | |
