Chicago PneumaticT025364
CP714K | 0.401 in. Round Shank Heavy Duty Air Hammer Kit, 2000 bpm
Heavy duty pistol grip hammer. Versatile, handling different type of environments
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP714K Heavy Duty Air Hammer Kit Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP714K Heavy Duty Air Hammer Kit Operator Manual (PDF)Open
- PDFChicago Pneumatic CP714K Heavy Duty Air Hammer Kit CE Certificate (PDF)Open
- PDFChicago Pneumatic Hammers and Scalers Safety Instructions (PDF)Open
T025364 | CP714K | 0.401 in. Round Shank Heavy Duty Air Hammer Kit, 2000 bpmCP714K
Price on request
Details
Product information
Overview

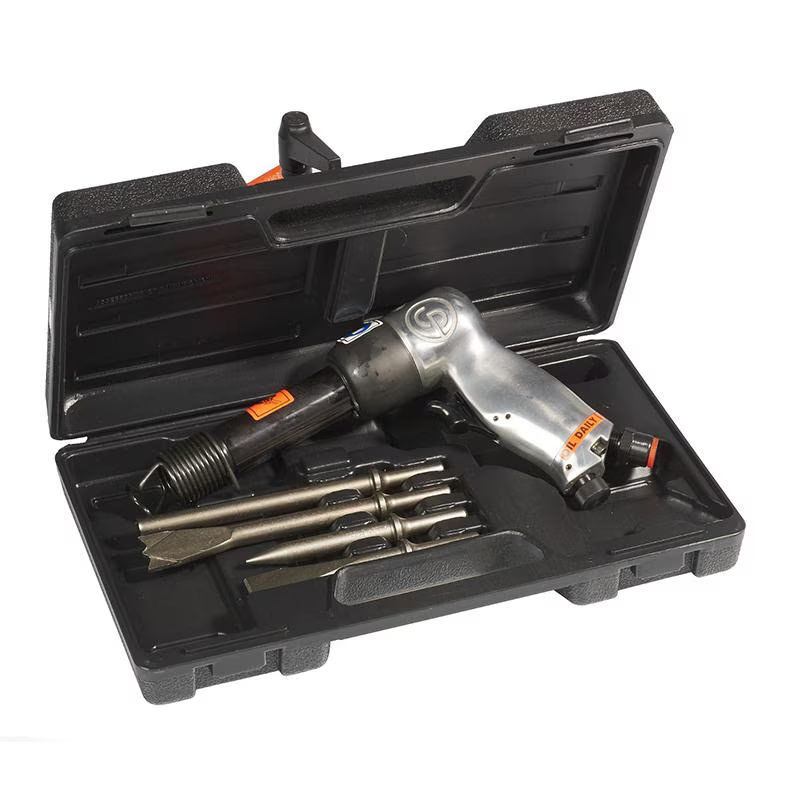

Chicago Pneumatic 0.401 in. Round Shank Heavy Duty Air Hammer Kit, 2000 bpm
CP714K
CP714K, 0.401 in. Round Shank Heavy Duty Air Hammer Kit, 2000 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Heavy Duty Air Hammer Kit at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Versatile, handling a wide range of body shop applications including front end, exhaust, frame and body work
- Operator comfort
Features
- Super-duty pistol grip hammer
- Positive action trigger for precise control over speed range
- Speed regulator
- Ergonomic oriented handle
- Kit includes 4 chisels packed in heavy-duty carrying case
| Technical Specifications | |
|---|---|
| Bore diameter | 14 mm |
| Length (L) | 190 mm |
| Stroke | 80 mm |
| Weight | 1.51 kg |
| Air consumption at load | 4 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Blow per minute | 2000 |
| Chisel shank | Round |
| Chisel shank diameter (in) | 0.401 |
| Chisel shank diameter (mm) | 10.2 |
| Energy | 4.7 J |
| Main Material type | Aluminium |
| Max rivet size (in) | 1/4 |
| Max rivet size (mm) | 6.4 |
| Max rivet size steel (in) | 3/16 |
| Max rivet size steel (mm) | 4.8 |
| Starting system | Trigger |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Sound Power | 102.5 dB(A) |
| Sound Pressure | 91.5 dB(A) |
| Uncertainty vibration-K | 5.8 m/s² |
| Vibration | 16.2 m/s² |
| MPN | CP714K |
| Features & Benefits | |
| High durability | |
| Positive action trigger for precise control | |
| Ergonomic oriented handle | |
