Chicago PneumaticT020120

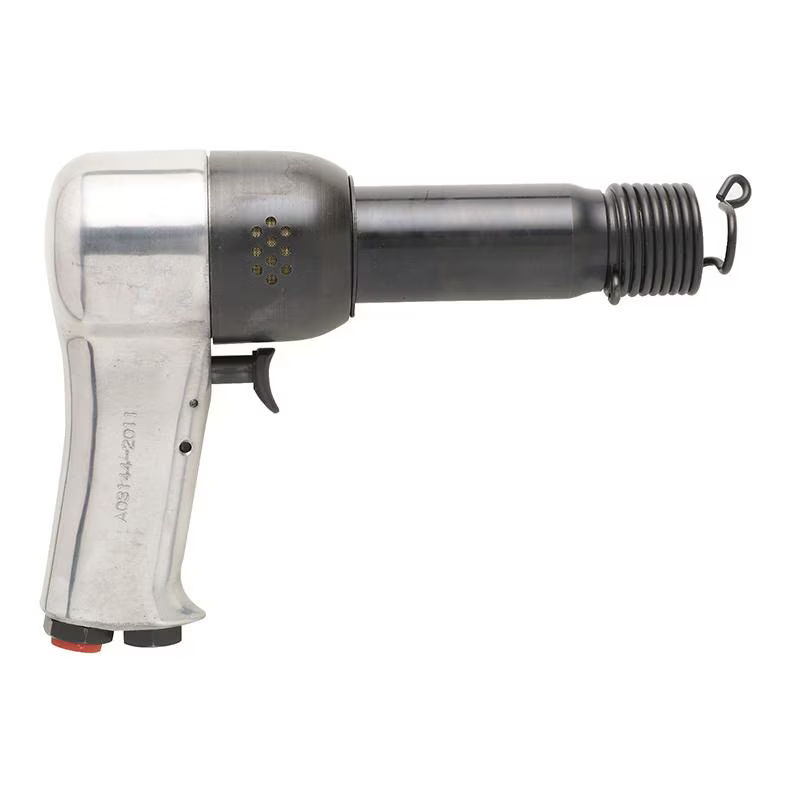

CP717 | 0.498 in. Round Shank Heavy Duty Air Hammer, 1800 bpm
Heavy duty pistol grip hammer. High power and precision.
$950.37List $1,583.96
Save $633.59Total$950.37Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorized service
T020120 | CP717 | 0.498 in. Round Shank Heavy Duty Air Hammer, 1800 bpmCP717
Total$950.37
1
Details
Product information
Overview
Chicago Pneumatic 0.498 in. Round Shank Heavy Duty Air Hammer, 1800 bpm
CP717
CP717, 0.498 in. Round Shank Heavy Duty Air Hammer, 1800 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Heavy Duty Air Hammer at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Power and precision
- Flexible operating positions
- Ideal tool for deep cutting, bolt riveting and super-duty applications
Features
- Heavy duty pistol grip hammer
- Standard .498" round shank
- High power air hammer
- Positive action trigger
| Technical Specifications | |
|---|---|
| Bore diameter | 19 mm |
| Length (L) | 190 mm |
| Stroke | 68 mm |
| Weight | 2.15 kg |
| Air consumption at load | 5.9 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Blow per minute | 1800 |
| Chisel shank | Round |
| Chisel shank diameter (in) | 0.498 |
| Chisel shank diameter (mm) | 12.7 |
| Energy | 7.3 J |
| Main Material type | Aluminium |
| Max rivet size (in) | 1/4 |
| Max rivet size (mm) | 6.4 |
| Max rivet size steel (in) | 3/16 |
| Max rivet size steel (mm) | 4.8 |
| Starting system | Trigger |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Sound Power | 106 dB(A) |
| Sound Pressure | 95 dB(A) |
| Uncertainty vibration-K | 2.9 m/s² |
| Vibration | 8.6 m/s² |
| MPN | CP717 |
| Features & Benefits | |
| Most powerful CP air hammer | |
| Ideal tool for deep cutting, bolt riveting and super-duty applications | |
| Standard .498" round shank | |
| Most powerful CP air hammer,Ideal tool for deep cutting, bolt riveting and super-duty applications,Standard .498" round shank | |
