Chicago Pneumatic8941078690

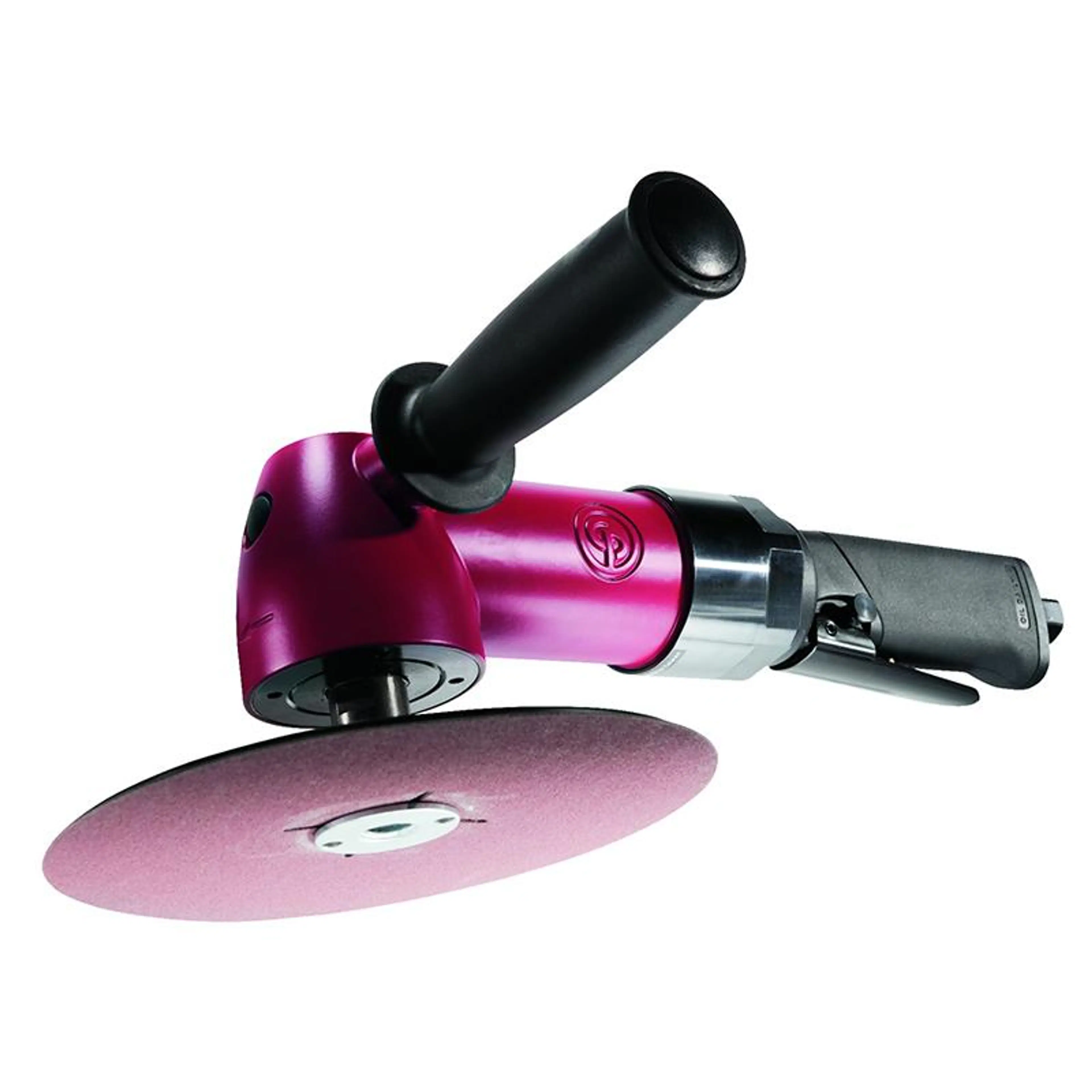

CP7269S | 7 in Heavy-Duty Angle Sander, 5000 rpm, 0.71 hp
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP7269S Heavy-Duty Angle Sander Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP7269S Heavy-Duty Angle Sander Operator Manual (PDF)Open
- PDFChicago Pneumatic CP7269S Heavy-Duty Angle Sander CE Certificate (PDF)Open
- PDFChicago Pneumatic Sanders and Polishers Safety Instructions (PDF)Open
8941078690 | CP7269S | 7 in Heavy-Duty Angle Sander, 5000 rpm, 0.71 hpCP7269S
Price on request
Details
Product information
Overview
Chicago Pneumatic 7 in Heavy-Duty Angle Sander, 5000 rpm, 0.71 hp
CP7269S
CP7269S, 7 in Heavy-Duty Angle Sander, 5000 rpm, 0.71 hp by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Heavy-Duty Angle Sander at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Powerful motor for productivity
- Low vibrations and durability
- Perfect for weld smoothing, paint, rust and stone removal
Features
- Heavy-duty angle sander
- Rugged 0.7 hp (500 W) motor
- Hardened and ground spiral bevel gears
- Delivered with 7" (178 mm) pad
| Technical Specifications | |
|---|---|
| Length (L) | 315 mm |
| Weight | 2.3 kg |
| Max power | 530 W |
| Air consumption at load | 12 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Free Speed | 5000 rpm |
| Air consumption at free speed | 12 l/s |
| Overspeed shut-off | No |
| Abrasive Pad Attachment | Nut |
| Autobalancer | No |
| Circular Abrasive Pad Size (in) | 7 |
| Circular Abrasive Pad Size (mm) | 180 |
| Exhaust | Rear |
| Main Material type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 5/8-16 UNF |
| Rotative inlet | No |
| Starting system | Lever |
| Sound Power (dba) | - |
| Sound Power | 98 dB(A) |
| Sound Pressure | 87 dB(A) |
| Vibration (m/s²) | <2,5 |
| Vibration | 7 m/s² |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Energy type | Pneumatic |
| Family | Sanders |
| Subfamily | Angle Sanders |
| MPN | CP7269S |
