Chicago PneumaticT025390
CP824 | 1/4 in. 12.5 ft lb Ratchet Wrench, 220 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
T025390 | CP824 | 1/4 in. 12.5 ft lb Ratchet Wrench, 220 rpmCP824
Price on request
Details
Product information
Overview

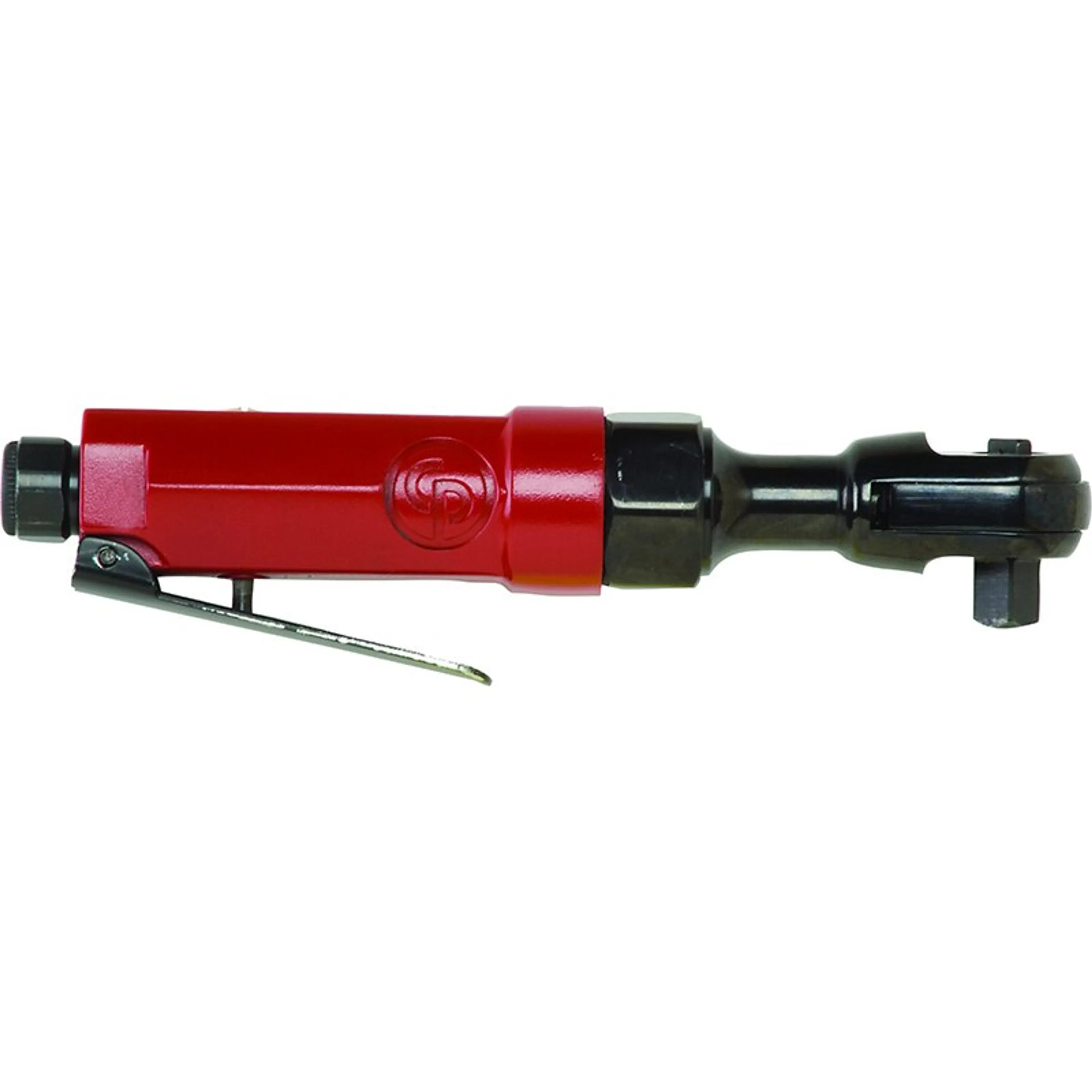

Chicago Pneumatic 1/4 in. 12.5 ft lb Ratchet Wrench, 220 rpm
CP824
CP824, 1/4 in. 12.5 ft lb Ratchet Wrench, 220 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Ratchet Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Compact and lightweight
- Designed for greater reach in confined areas
- Excellent for under-dashboard work, small engine repair and small fasteners
Features
- 1/4" ratchet
- Easy speed control
- Extended length
| Technical Specifications | |
|---|---|
| Free Speed | 220 rpm |
| Max working torque reverse | 17 Nm |
| Max torque reverse | 17 Nm |
| Min working torque reverse | 5 Nm |
| Length (L) | 197 mm |
| Weight | 0.51 kg |
| Subfamily | Pneumatic Ratchet Wrenches |
| Sound Power | 102 dB(A) |
| Sound Pressure | 91 dB(A) |
| Uncertainty vibration-K | 2 m/s² |
| Vibration (m/s²) | 4.1 |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Air consumption at load | 7 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (5 m hose length) | 10 mm |
| Main Material type | Aluminum |
| Output drive size (in) | 1/4 |
| Output drive type | Sq |
| Output retainer type | Ball detent |
| Starting system | Lever |
| MPN | CP824 |
