Chicago Pneumatic6151959104
CP9104Q | 1/8 in. Pencil Grinder, 60000 rpm, Rear exhaust
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151959104 | CP9104Q | 1/8 in. Pencil Grinder, 60000 rpm, Rear exhaustCP9104Q
Price on request
Details
Product information
Overview

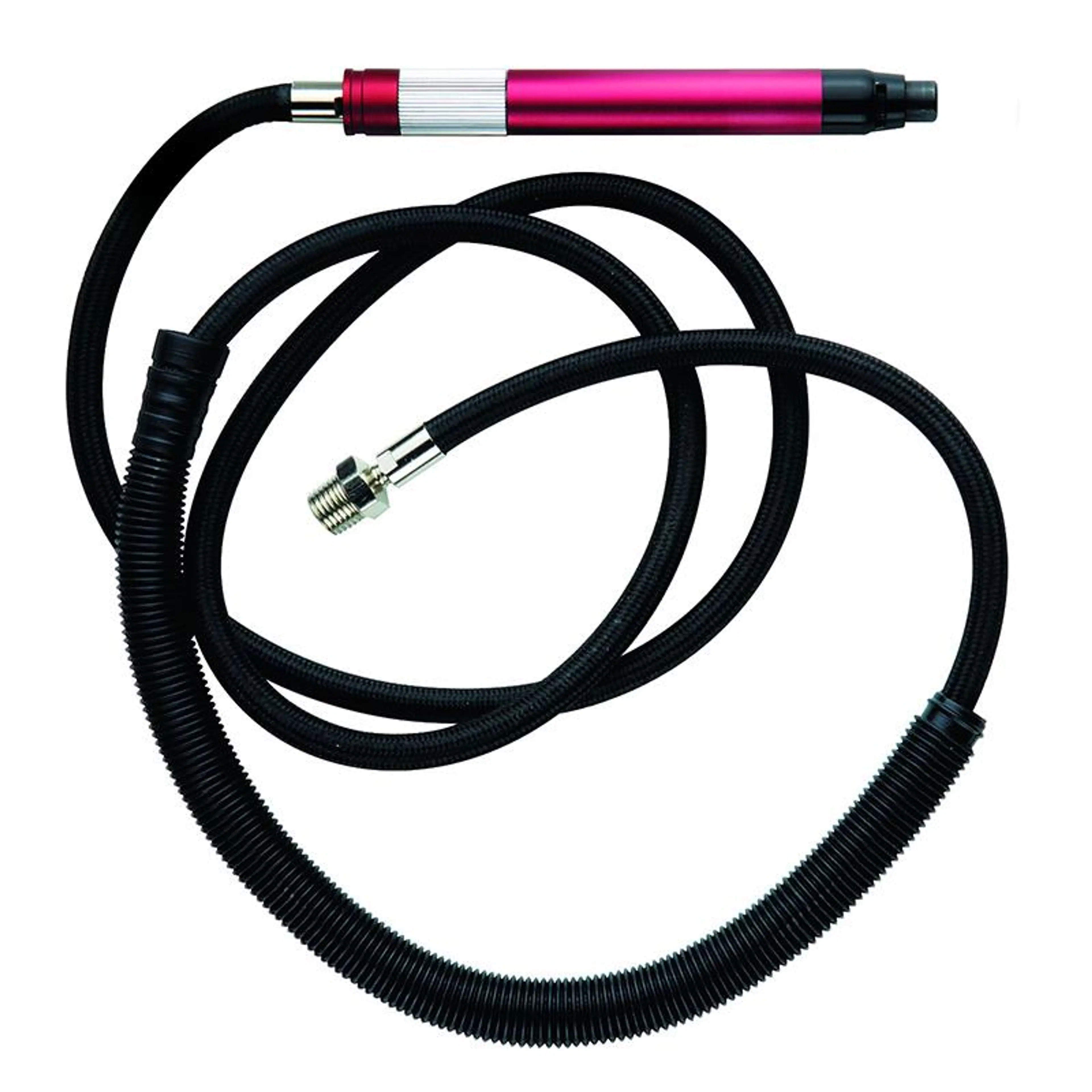

Chicago Pneumatic 1/8 in. Pencil Grinder, 60000 rpm, Rear exhaust
CP9104Q
CP9104Q, 1/8 in. Pencil Grinder, 60000 rpm, Rear exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Pencil Grinder at a lower price? Call or email Customer Service and we'll match the price!
Benfits
- General maintenance application
- Easy to handle
- Quiet and lightweight
- Ideal for limited space applications
Features
- 3 mm and 1/8" collets included
- Very low noise level: only 71 dB(A)
- Includes silencer hose
- High free speed: 60,000 rpm
| Technical Specifications | |
|---|---|
| Length (L) | 133 mm |
| Weight | 0.2 kg |
| Free Speed | 60000 rpm |
| Air consumption at free speed | 3.3 l/s |
| Air consumption at load | 3.2 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 82 dB(A) |
| Sound Pressure | 71 dB(A) |
| Vibration (m/s²) | <2.5 |
| Angle Type | Straight |
| Max power | 40 W |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Abrasive type | Carbide burr |
| Collet max capacity | 1/8 (3mm) |
| Collet max capacity (mm) | 3 |
| Exhaust | Rear |
| Governor type | NA |
| Main Material type | Aluminium |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Rolling throttle |
| MPN | CP9104Q |
