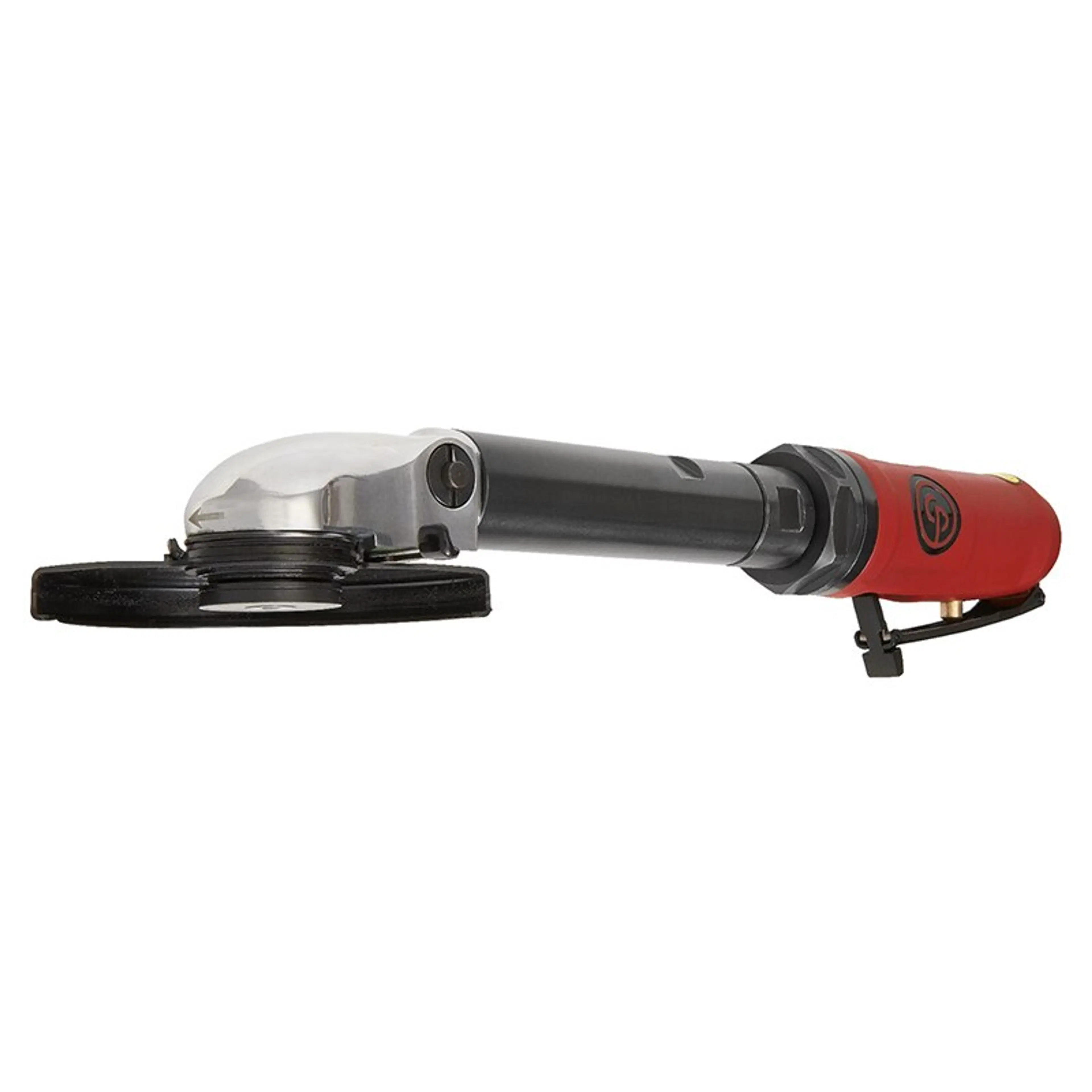

8941091161 | CP9116 | 4 in. 14000 rpm Extended Cut-Off Tool, 1 hp image 1
Click the image to zoom
Chicago Pneumatic
  • Free shipping on orders over $999
  • Over 23 years in business
  • Free expert advice
  • In-house service and calibration department
  • Low price guarantee
  • Safe and secure checkout

CP9116 | 4 in. 14000 rpm Extended Cut-Off Tool, 1 hp

Price on request
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000

A specialist replies within one business day.

Documents2 files

Details

Product information

Overview

Chicago Pneumatic 4 in. 14000 rpm Extended Cut-Off Tool, 1 hp

CP9116

CP9116, 4 in. 14000 rpm Extended Cut-Off Tool, 1 hp by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Extended Cut-Off Tool at a lower price? Call or email Customer Service and we'll match the price!

Benefits:
  • Extended Length & Compact Gear Housing
  • Comfort
  • Easy to Use
  • Safety & Convenient
  • Powerful
  • Durable
  • Ideal for cutting composite, metal, bolts, especially in tight spaces
Features:
  • 4" = 100 mm for better reach and easy access to restricted areas
  • Composite grip to reduce cold air transmission to operators
  • Spindle lock system for easier wheel changing
  • 11 position adjustable swivel guard – 126° adjustable for better operator protection & greater visibility of cutting operations
  • Safety throttle lever to prevent accidental start up
  • Rear exhaust
  • 1 HP motor & 14000 rpm
  • High quality steel for internal gears
  • Cutting disc size : 4" / 100 mm - (1/16" X 3/8") (1/8" X 3/8")
  • 360° swivel air inlet
Technical Specifications
Free Speed14000 rpm
Air consumption at free speed17 l/s
Guard positions0
Wheel/Disc diameter (in)4
Wheel/Disc diameter (mm)100
Sound Power (dba)86
Sound Pressure97 dB(A)
Uncertainty vibration-K1.3 m/s²
Vibration3 m/s²
Air consumption at load3.3 l/s
Air inlet thread size (in)1/4
Max dynamic air working pressure6.3 bar
Min hose diam (16 ft hose length)10 in
Min hose diam (5 m hose length)0.4 mm
Max power746 W
ItemTypeproduct
ItemCountryOfOriginTW
Length (L)370 mm
Weight1.8 kg
MPNCP9116
