Chicago Pneumatic6151957222

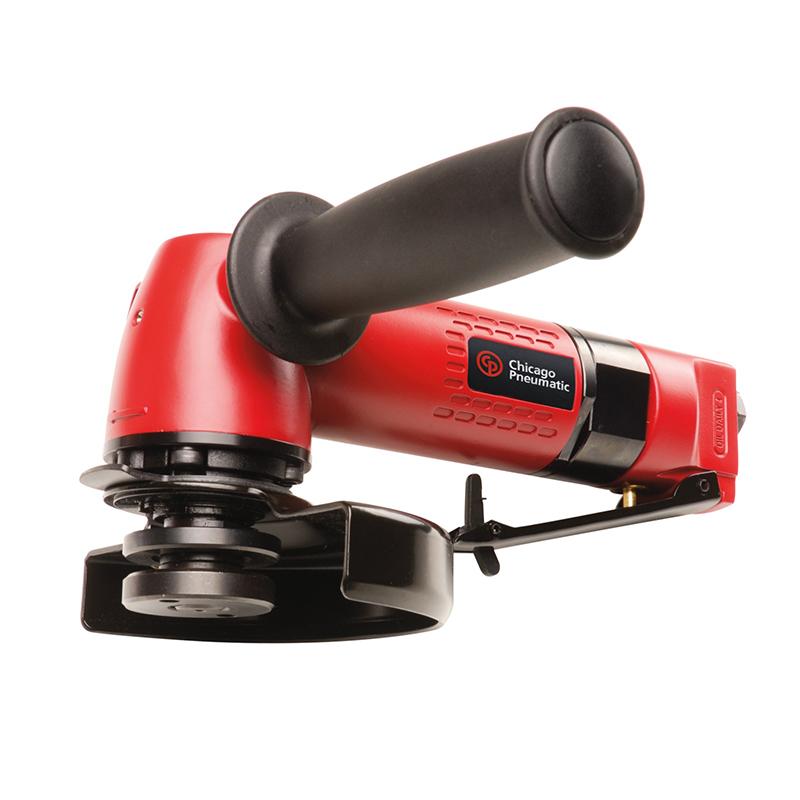

CP9122BR | 4.5 in. Angle Wheel Grinder, 12000 rpm
This CP91 Angle Grinder has a 0.8 hp motor with speeds up to 12,000 rpm. High horsepower output allows for quick and efficient material removal.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151957222 | CP9122BR | 4.5 in. Angle Wheel Grinder, 12000 rpmCP9122BR
Price on request
Details
Product information
Overview
Chicago Pneumatic 4.5 in. Angle Wheel Grinder, 12000 rpm
CP9122BR
CP9122BR, 4.5 in. Angle Wheel Grinder, 12000 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Angle Wheel Grinder at a lower price? Call or email Customer Service and we'll match the price!
Benfits
- General Maintenance Applications angle wheel grinder
- Lightweight but rugged housing
- Durability and performance
Features
- Keyless adjustable protective guard
- Aluminum alloy housing
- Helical bevel gear design
- 4-1/2" (115 mm) wheel capacity
- 5/8"-11 spindle thread
- 0.8 hp (600 W) governed motor
- Ergonomic side handle
| Technical Specifications | |
|---|---|
| Free Speed | 12000 rpm |
| Air consumption at free speed | 9.9 l/s |
| Autobalancer | No |
| Guard max rotation | 180 ° |
| Guard positions | 9 |
| Main Material type | Aluminium |
| Output Spindle Thread | 5/8-11 UNC |
| Rotative guard type | Lock |
| Spindle lock | No |
| Starting system | Safety lever |
| Swiveling guard | Keyless |
| Wheel/Disc diameter (in) | 4-1/2 |
| Wheel/Disc diameter (mm) | 115 |
| Sound Power | 95 dB(A) |
| Sound Pressure | 84 dB(A) |
| Uncertainty vibration-K | 4.6 m/s² |
| Vibration | 8.6 m/s² |
| Air consumption at load | 14 l/s |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Max power | 600 W |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 233 mm |
| Weight | 1.9 kg |
| MPN | CP9122BR |
| Features & Benefits | |
| For General Maitenance Applications | |
| Lightweight design | |
| Excellent durability | |
