Chicago Pneumatic6151820000
CP9161 | Engraving Pen, 32,400 bpm
6151820000 | CP9161 | Engraving Pen, 32,400 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151820000 | CP9161 | Engraving Pen, 32,400 bpmCP9161
Price on request
Details
Product information
Overview

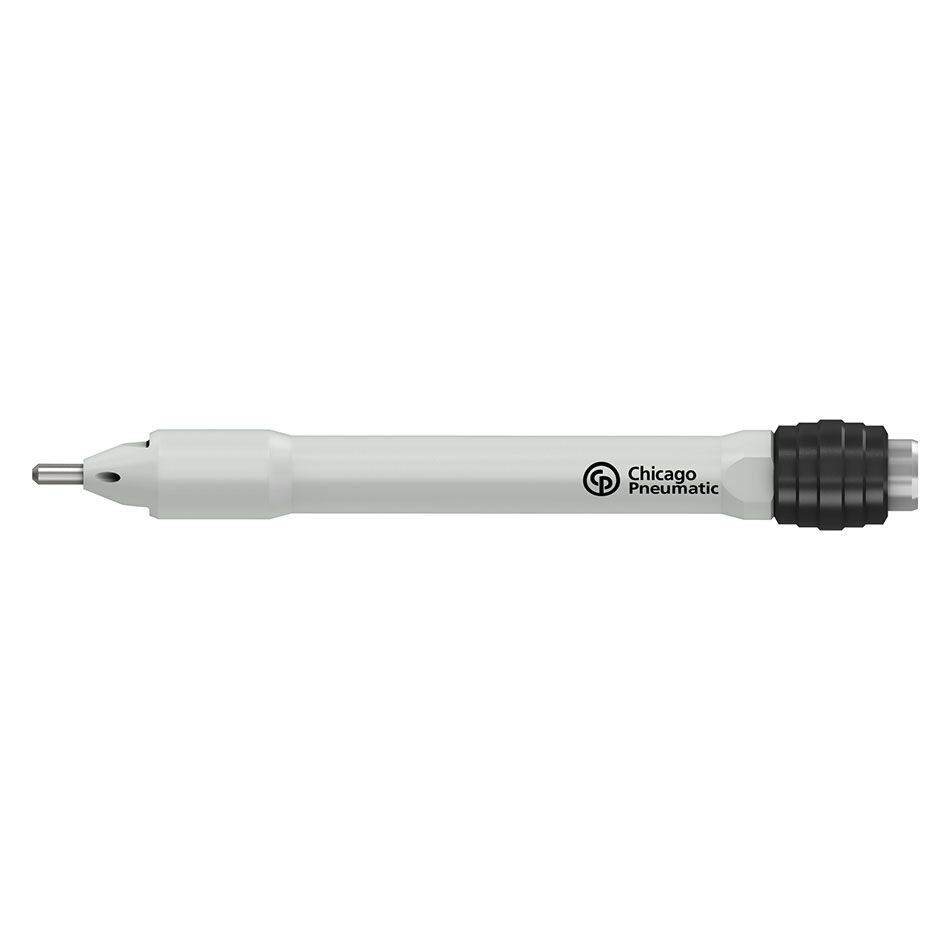

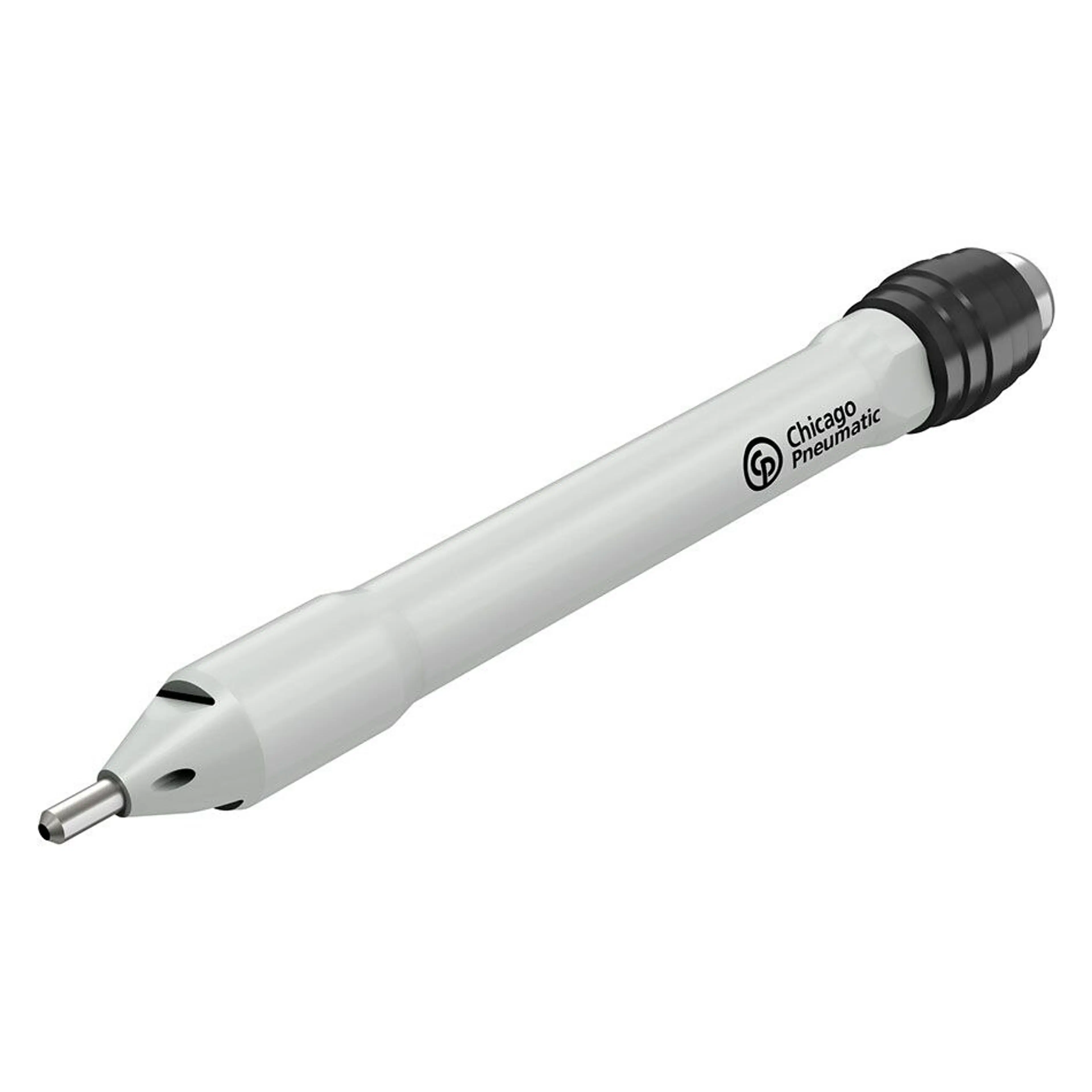

Chicago Pneumatic Engraving Pen
| Technical Specifications | |
|---|---|
| Blow per minute | 11400 |
| Starting system | None |
| Air inlet thread size (in) | 1/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.13 in |
| Min hose diam (5 m hose length) | 3.2 mm |
| ItemType | product |
| ItemCountryOfOrigin | HU |
| Air consumption at free speed | 0.6 l/s |
| Length (L) | 147.5 mm |
| Weight | 0.12 kg |
| Sound Power | 83 dB(A) |
| Sound Pressure | 72 dB(A) |
| Uncertainty vibration-K | 1 m/s² |
| Vibration | 5.6 m/s² |
| MPN | CP9161 |
| Features & Benefits | |
| Efficient engraving with low noise | |
| Precise and reliable | |
| Comfortable Handling | |
| Integrated 6.5 ft (2 m) hose | |
| Efficient engraving with low noise,Precise and reliable,Comfortable Handling,Integrated 6.5 ft (2 m) hose | |
