CP9426 | 1/4 in. 27 ft lb Ratchet Wrench, 270 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151919426 | CP9426 | 1/4 in. 27 ft lb Ratchet Wrench, 270 rpmCP9426
Price on request
Details
Product information
Overview

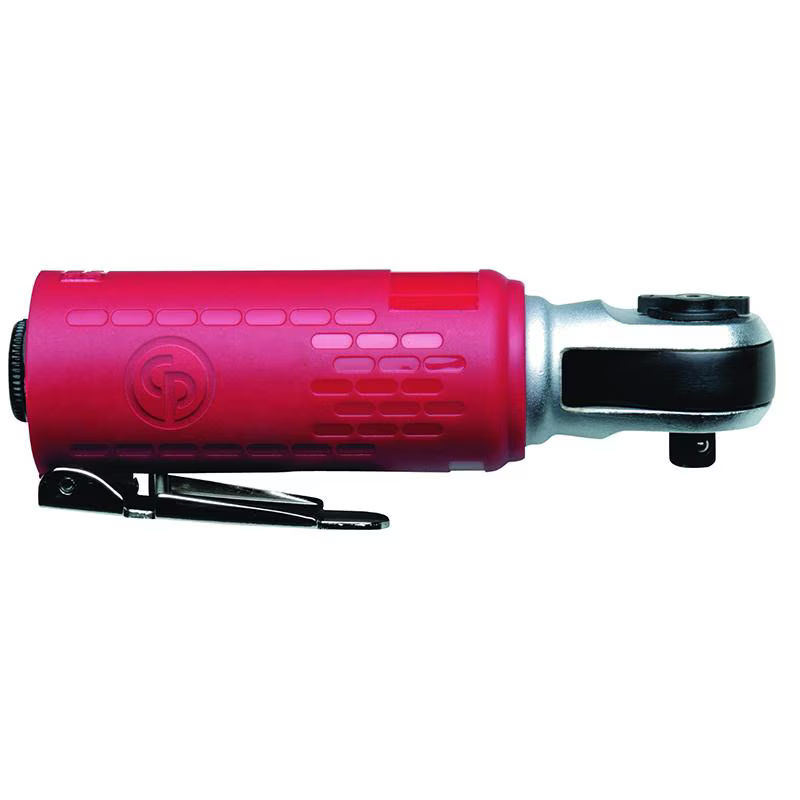

Chicago Pneumatic 1/4 in. 27 ft lb Ratchet Wrench, 270 rpm
CP9426
CP9426, 1/4 in. 27 ft lb Ratchet Wrench, 270 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Ratchet Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Most powerful of its class
- Operator comfort
- Compact and lightweight
Features
- 1/4" mini ratchet
- High power: 27 ft.lbs (35 Nm)
- One of the smallest ratchets only 5.1" (130mm) long
- Rubber grip
| Technical Specifications | |
|---|---|
| Free Speed | 270 rpm |
| Max working torque reverse | 35 Nm |
| Max torque reverse | 35 Nm |
| Min working torque reverse | 7 Nm |
| Length (L) | 128 mm |
| Weight | 0.49 kg |
| Subfamily | Pneumatic Ratchet Wrenches |
| Sound Power | 93 dB(A) |
| Sound Pressure | 82 dB(A) |
| Uncertainty vibration-K | 1.5 m/s² |
| Vibration (m/s²) | 5 |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Air consumption at load | 5.6 l/s |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPTF |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (5 m hose length) | 10 mm |
| Main Material type | Composite |
| Output drive size (in) | 1/4 |
| Output drive type | Sq |
| Output retainer type | Quick release |
| Starting system | Lever |
| MPN | CP9426 |
