Chicago Pneumatic6151909541

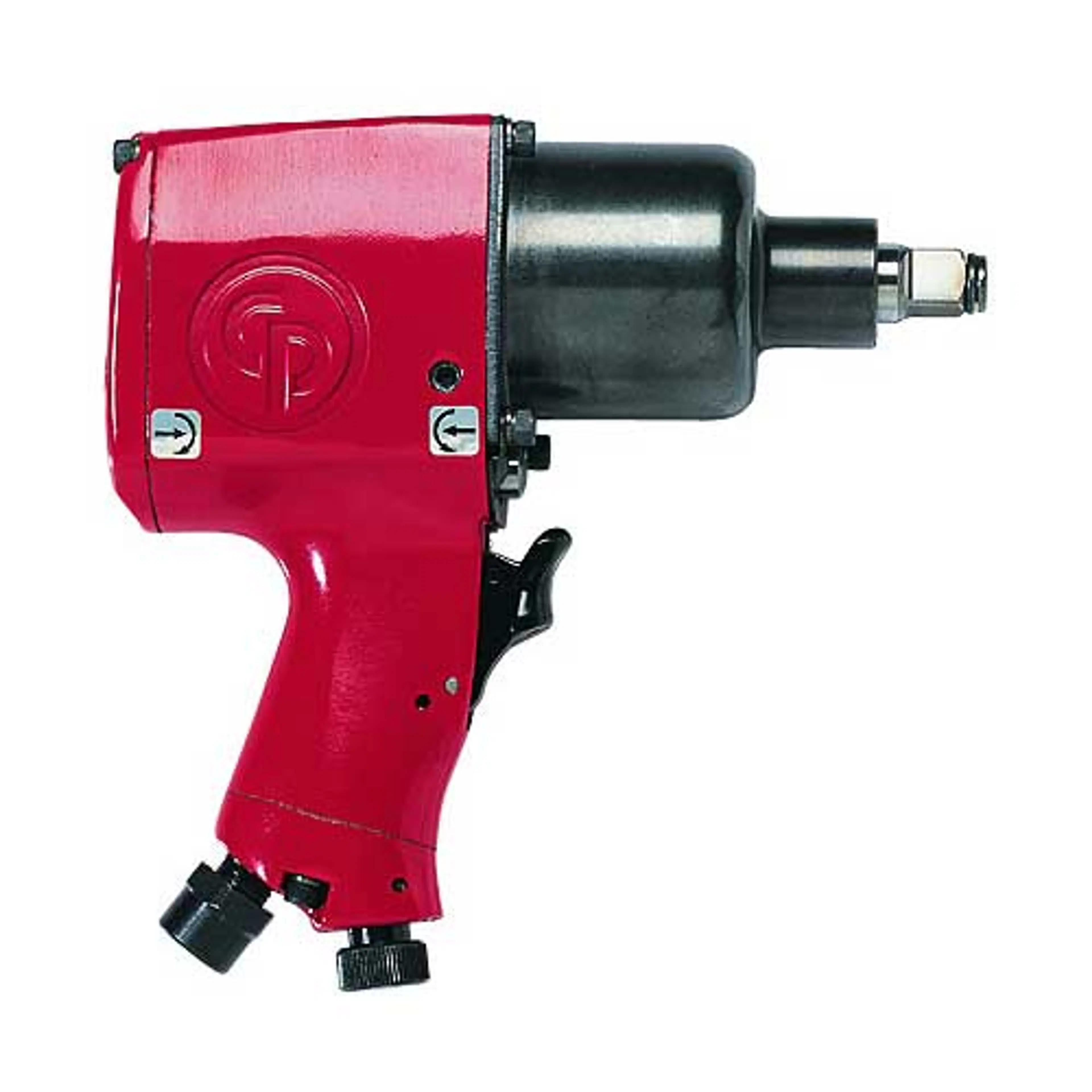

CP9541 | 1/2 in. 450 ft lb Air Impact Wrench, pistol, 8900 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP9541 1/2 in. 450 ft lb Air Impact Wrench Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP9541 1/2 in. 450 ft lb Air Impact Wrench Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Impact and Pulse Wrench Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP9541 1/2 in. 450 ft lb Air Impact Wrench CE Certificate (PDF)Open
6151909541 | CP9541 | 1/2 in. 450 ft lb Air Impact Wrench, pistol, 8900 rpmCP9541
Price on request
Recommended Accessories
1 itemAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|

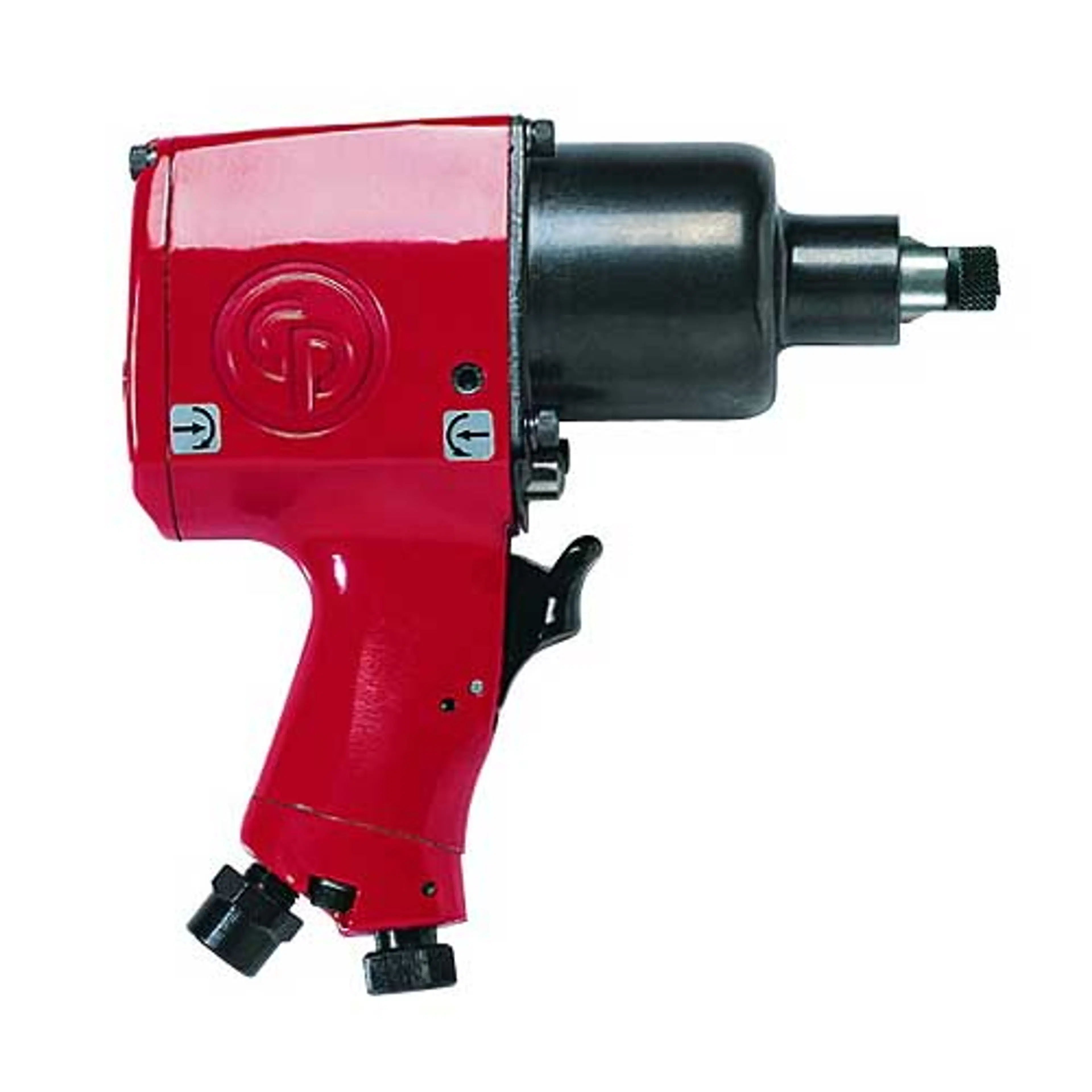

 CP95426151909542 | CP9542 | 1/2 in. 450 ft lb Air Impact Wrench, pistol, 8900 rpm | 1 | View details |
Details
Product information
Overview
Chicago Pneumatic 1/2 in. 450 ft lb Air Impact Wrench, pistol, 8900 rpm
CP9541
CP9541, 1/2 in. 450 ft lb Air Impact Wrench, pistol, 8900 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/2 in. 450 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits
- Industrial Maintenance & Production
- Best industrial 1/2" impact for Hard joints applications
- Operator comfort due to low vibrations and low noise level
- Good control thanks to the multi-position regulator
- Reliable pin clutch in oil bath & durable housing
- Compact 3-part construction & easy to maintain
Features
- 1/2" impact wrench with ring socket retainer
- Fast & reliable DYNA-PACT (Pin clutch) with oil bath
- Aluminum body & steel clutch housing
- Torque regulator at the handle
- Steel Trigger for harsh environment
| Technical Specifications | |
|---|---|
| Max working torque fwd | 434 Nm |
| Max torque reverse | 610 Nm |
| Min working torque fwd | 34 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 100 dB(A) |
| Sound Pressure | 89 dB(A) |
| Uncertainty vibration-K | 2.5 m/s² |
| Vibration (m/s²) | 5.5 |
| Free Speed | 8900 rpm |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 168 mm |
| Power weight ratio | 240 Nm/kg |
| Side to Center | 30 mm |
| Weight | 2.5 kg |
| Blow per minute | 1100 |
| Body | Aluminium |
| Clutch housing | Steel |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Pin clutch |
| Main Material type | Aluminium |
| Output drive size (in) | 1/2 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| MPN | CP9541 |
