Chicago Pneumatic6151939705
CP9705 | 12000 spm 0.2 in. Stroke Air File
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151939705 | CP9705 | 12000 spm 0.2 in. Stroke Air FileCP9705
Price on request
Details
Product information
Overview

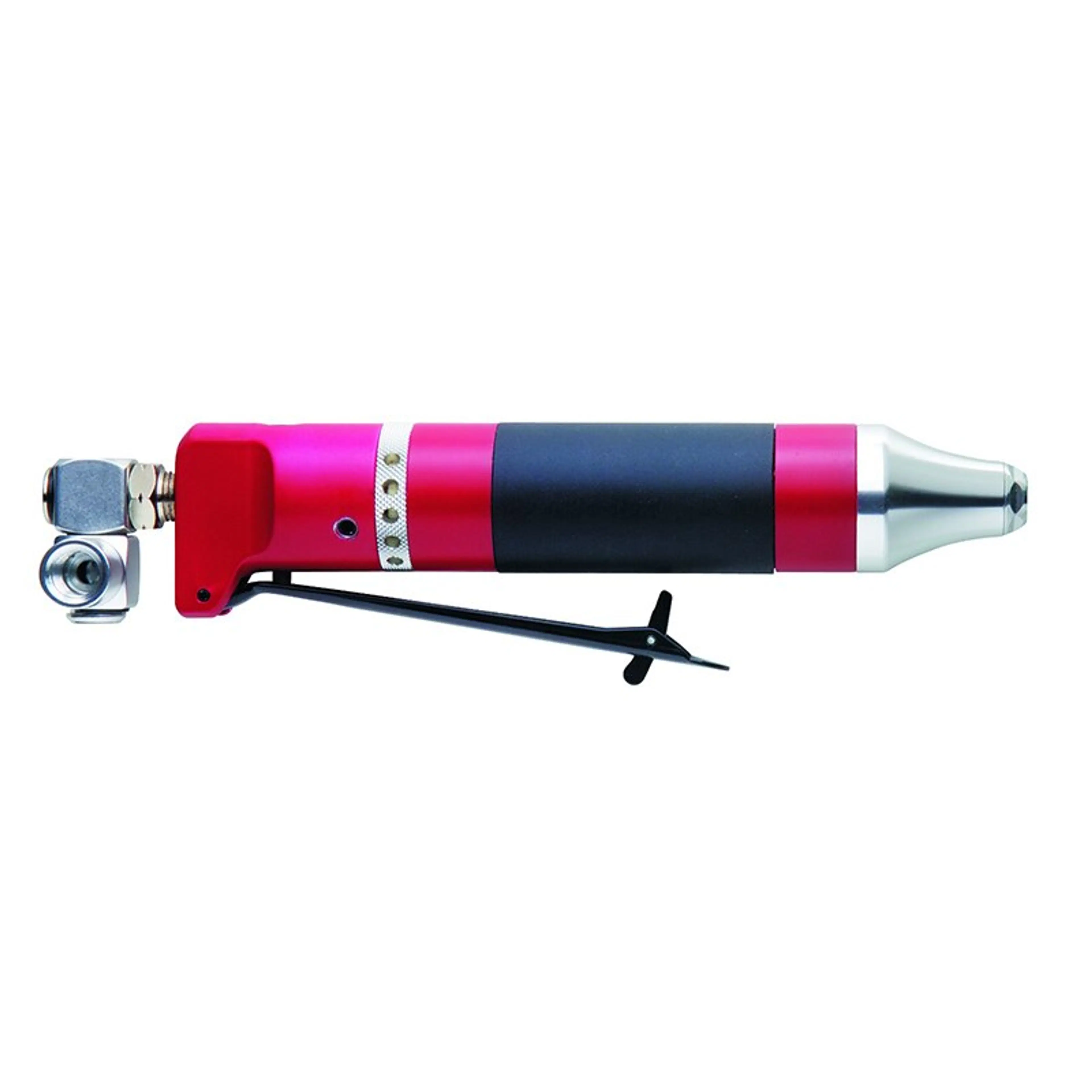

Chicago Pneumatic 12000 spm 0.2 in. Stroke Air File
CP9705
CP9705, 12000 spm 0.2 in. Stroke Air File by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Air File at a lower price? Call or email Customer Service and we'll match the price!
Benefits:
- Excellent tool for use in confined areas
- Ideal for precise work
- Deburring or sharpening sheet metal, iron or plastic
Features:
- Air file 0.2" (5mm) stroke
- Lock-off lever to prevent accidental start-up
- 360° swivel air inlet
- Rubber handle grip
- Includes 4 types of files: flat, half round, round, triangular
| Technical Specifications | |
|---|---|
| Main Material type | Aluminium |
| Starting system | Safety lever |
| Stroke per minute | 12000 |
| Sound Power | 88 dB(A) |
| Sound Pressure | 77 dB(A) |
| Uncertainty vibration-K | 3 m/s² |
| Vibration | 5 m/s² |
| Air consumption at load | 2.8 l/s |
| Air inlet thread size (in) | 1/4 in |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Length (L) | 204 mm |
| Stroke | 5 mm |
| Weight | 0.56 kg |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| MPN | CP9705 |
