Chicago Pneumatic8941098820
CP9882 | 3/16 in. Air Riveter, 2200 lb pulling load
Air Riveter
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8941098820 | CP9882 | 3/16 in. Air Riveter, 2200 lb pulling loadCP9882
Price on request
Details
Product information
Overview

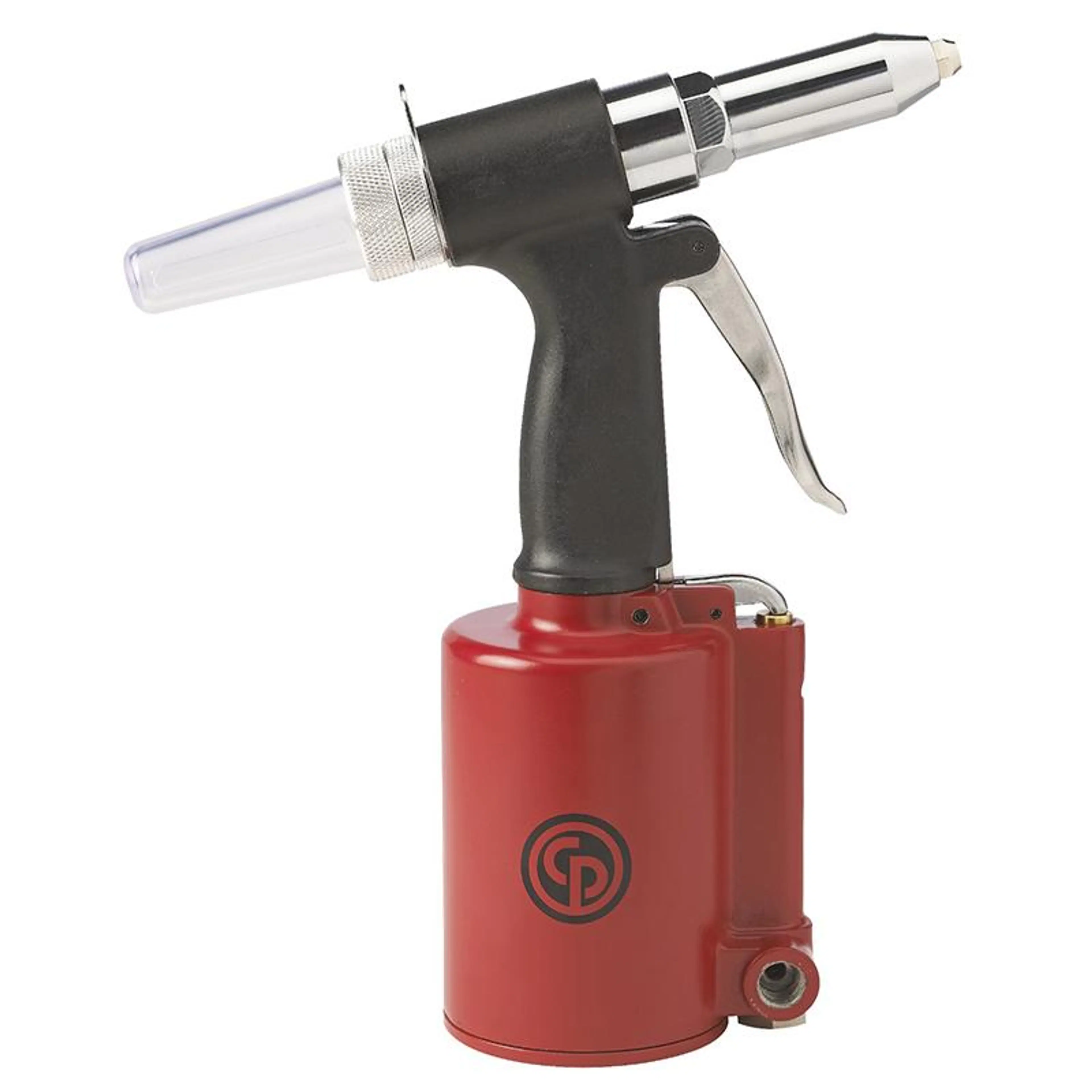

Chicago Pneumatic 3/16 in. Air Riveter, 2200 lb pulling load
CP9882
CP9882, 3/16 in. Air Riveter, 2200 lb pulling load by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Air Riveter at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Simple construction for easy maintenance
- Great for trailer panels, number plates, and any type of panels maintenance
Features
- Air riveter
- for General Maintenance
- Compact size
- 3/16" (4.8 mm) max. capacity
- For rivets in Aluminum, copper and softer materials
- Heavy pulling: up to 2,200 lbs (1,000 kg)
- Transparent container with holes for quick release of rivet ends
- Includes: nose pieces for rivets 3/32", 1/8", 5/32" and 3/16" (2.4, 3.2, 4 and 4.8 mm)
| Technical Specifications | |
|---|---|
| Length (L) | 225 mm |
| Pulling force | 1000 kg |
| Weight | 1.5 kg |
| Sound Power | 62 dB(A) |
| Sound Pressure | 73 dB(A) |
| Vibration (m/s²) | <2.5 m/s**2 |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Max rivet size (in) | 3/16 |
| Max rivet size (mm) | 4.8 |
| Mouthpiece delivered | 4 |
| Rivet type | Blind |
| Starting system | Lever |
| Air consumption at load | 1.9 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| MPN | CP9882 |
| Features & Benefits | |
| 3/16' Air Riveter | |
| 2200 lb Pulling Load | |
| Simple construction for easy maintenance | |
| Great for trailer panels, number plates, and any type of panels maintenance. | |
| 3/16' Air Riveter,2200 lb Pulling Load,Simple construction for easy maintenance,Great for trailer panels, number plates, and any type of panels maintenance. | |
