Chicago Pneumatic6151580300

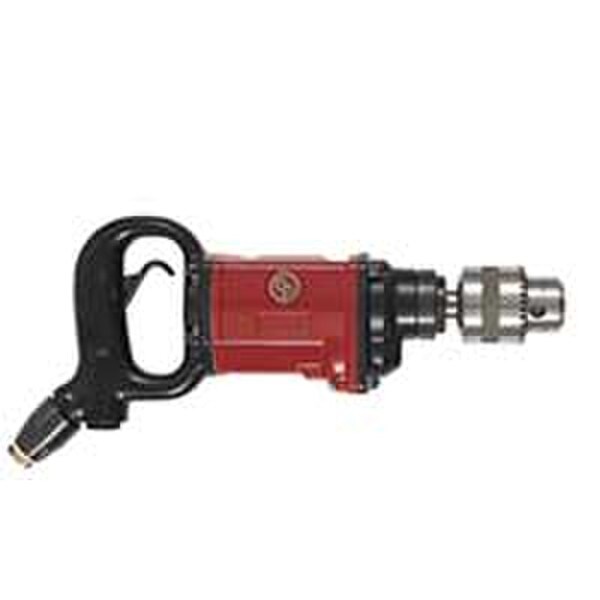

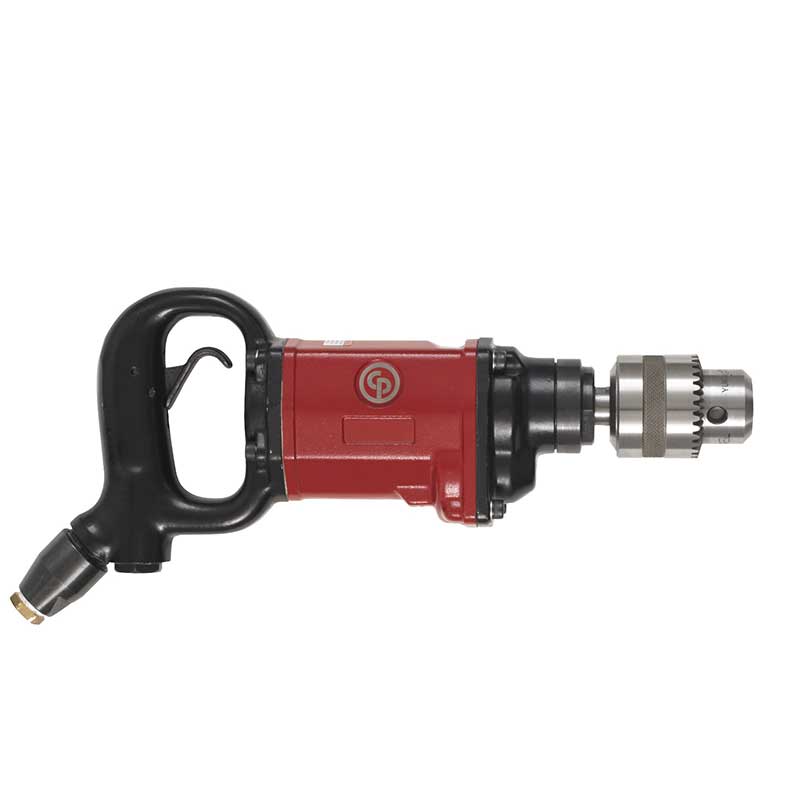

CP1816 | 5/8 in. Pneumatic Air Drill, 1 hp, 800 rpm, 25.3 ft lb stall
Compact drills for Industrial production, intensive duty with high durability and operator comfort.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP1816 5/8 in. Pneumatic Air Drill Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP1816 5/8 in. Pneumatic Air Drill Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Drill and Air Tapper Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP1816 5/8 in. Pneumatic Air Drill CE Certificate (PDF)Open
6151580300 | CP1816 | 5/8 in. Pneumatic Air Drill, 1 hp, 800 rpm, 25.3 ft lb stallCP1816
Price on request
Details
Product information
Overview
Chicago Pneumatic 5/8 in. Pneumatic Air Drill, 1 hp, 800 rpm, 25.3 ft lb stall
CP1816
CP1816, 5/8 in. Pneumatic Air Drill, 1 hp, 800 rpm, 25.3 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 5/8 in. Pneumatic Air Drill at a lower price? Call or email and we'll match the price!
Benefits
- Designed for intensive duty, high durability and precision in industrial maintenance and production applications
- Ideal for drilling of mild steel, cast iron
Features
- 5/8" (16 mm) D-handle drill
- Powerfull with 1 hp (750 W) motor
- Excellent durable gearbox ensures the strong drilling
| Technical Specifications | |
|---|---|
| Chuck max capacity (in) | 5/8 |
| Chuck max capacity (mm) | 16 |
| Chuck type | Keyed |
| Handle type | D-handle |
| Main Material type | Aluminum |
| Reversible | No |
| Starting system | Trigger |
| Sound Power | 101 dB(A) |
| Sound Pressure | 90 dB(A) |
| Uncertainty vibration-K | 0.5 m/s² |
| Air consumption at load | 20 l/s |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | PT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Max power | 750 W |
| Stall torque | 34.3 Nm |
| Free Speed | 800 rpm |
| Air consumption at free speed | 0 l/s |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 364 mm |
| Weight | 3.7 kg |
| MPN | CP1816 |
| Features & Benefits | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle | |
| High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH | |
| High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle,High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH,High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
