Chicago Pneumatic6151600330

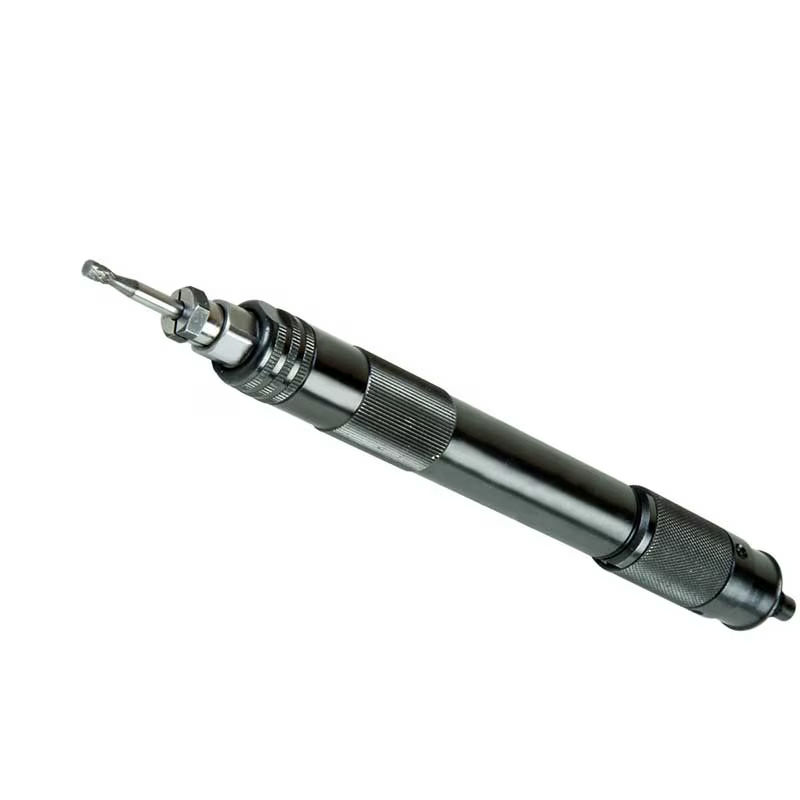

CP3000-600CRE | 3mm Pencil Grinder, 60000 rpm, 0.12 hp, Rear exhaust
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP3000-600CR 3mm Pencil Grinder Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP3000-600CR 3mm Pencil Grinder Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Die Grinder Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP3000-600CR 3mm Pencil Grinder CE Certificate (PDF)Open
6151600330 | CP3000-600CRE | 3mm Pencil Grinder, 60000 rpm, 0.12 hp, Rear exhaustCP3000-600CRE
Price on request
Details
Product information
Overview
Chicago Pneumatic 3mm Pencil Grinder, 60000 rpm, 0.12 hp, Rear exhaust
CP3000-600CR
CP3000-600CR, 3mm Pencil Grinder, 60000 rpm, 0.12 hp, Rear exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 3mm Pencil Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial pencil grinder
- Great durability
- Operator comfort
- High precision
Features
- 3mm collet
- Steel but lightweight body
- Included silencer hose
- High free speed: 60,000 rpm
- Grooved housing
- Rotary valve
| Technical Specifications | |
|---|---|
| Length (L) | 153 mm |
| Weight | 0.14 kg |
| Free Speed | 60000 rpm |
| Air consumption at free speed | 3.6 l/s |
| Air consumption at load | 2.6 l/s |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT-male |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.25 in |
| Min hose diam (5 m hose length) | 6 mm |
| Sound Power | 82 dB(A) |
| Sound Pressure | 71 dB(A) |
| Vibration (m/s²) | <2.5 |
| Angle Type | Straight |
| Max power | 90 W |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Collet max capacity | 3mm (only for Die Grinders) |
| Exhaust | Rear |
| Governor type | NA |
| Main Material type | Steel |
| Rotative inlet | No |
| Spindle lock | No |
| MPN | CP3000-600CRE |
