Chicago Pneumatic6151602010

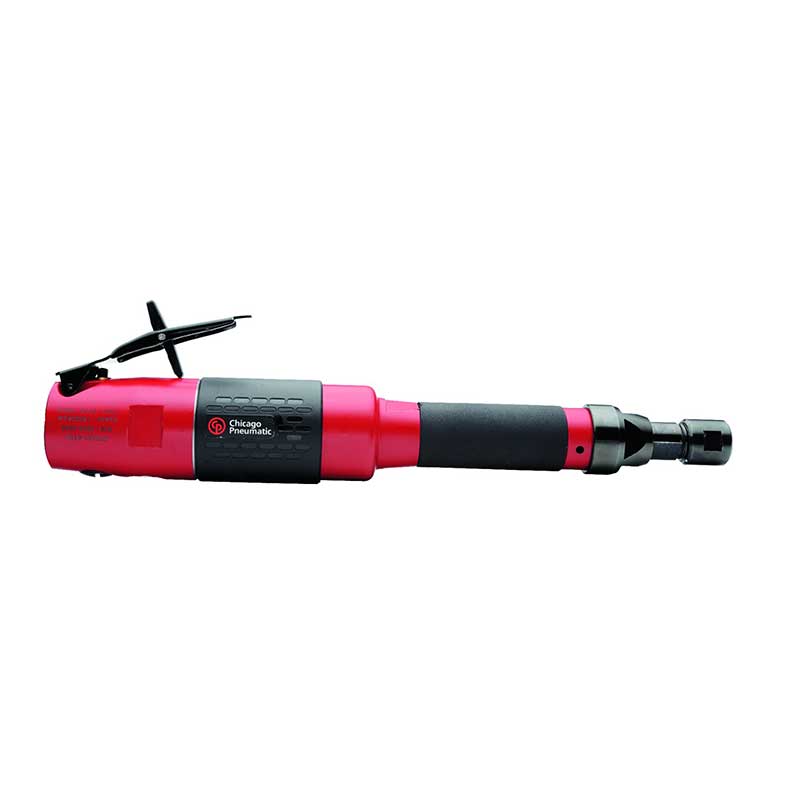

CP3451-18SEC | 1/4 in. Extended Die Grinder, 18000 rpm, 1 hp, Rear exhaust
This CP3451 Die Grinder has a 1 hp motor with speeds up to 18,000 rpm.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP3451-18SEC 1/4 in. Extended Die Grinder Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP3451-18SEC 1/4 in. Extended Die Grinder Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Die Grinder Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP3451-18SEC 1/4 in. Extended Die Grinder CE Certificate (PDF)Open
6151602010 | CP3451-18SEC | 1/4 in. Extended Die Grinder, 18000 rpm, 1 hp, Rear exhaustCP3451-18SEC
Price on request
Details
Product information
Overview
Chicago Pneumatic 1/4 in. Extended Die Grinder, 18000 rpm, 1 hp, Rear exhaust
CP3451-18SEC
CP3451-18SEC, 1/4 in. Extended Die Grinder, 18000 rpm, 1 hp, Rear exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/4 in. Extended Die Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial straight die grinder
- Light body
- Industrial grade durability up to 1000 hours
Features
- Aluminum body
- Insulating composite cover
- Rear exhaust
- 1/4" (6.35 mm) collet holder
- 1 hp (750 W) high torque motor
- 18,000 rpm free speed
| Technical Specifications | |
|---|---|
| Length (L) | 330 mm |
| Weight | 1.4 kg |
| Free Speed | 18000 rpm |
| Air consumption at free speed | 19 l/s |
| Air consumption at load | 17 l/s |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 13 mm |
| Sound Power | 94.8 dB(A) |
| Sound Pressure | 83.8 dB(A) |
| Uncertainty vibration-K | 1.8 m/s² |
| Angle Type | Straight |
| Max power | 750 W |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Collet max capacity | 1/4 (6.4mm) |
| Exhaust | Rear |
| Governor type | NA |
| Main Material type | Aluminium, Composite over-sleeve |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| MPN | CP3451-18SEC |
| Features & Benefits | |
| Insulating Composite cover | |
| 1000 hour service interval | |
