Chicago Pneumatic6151580030

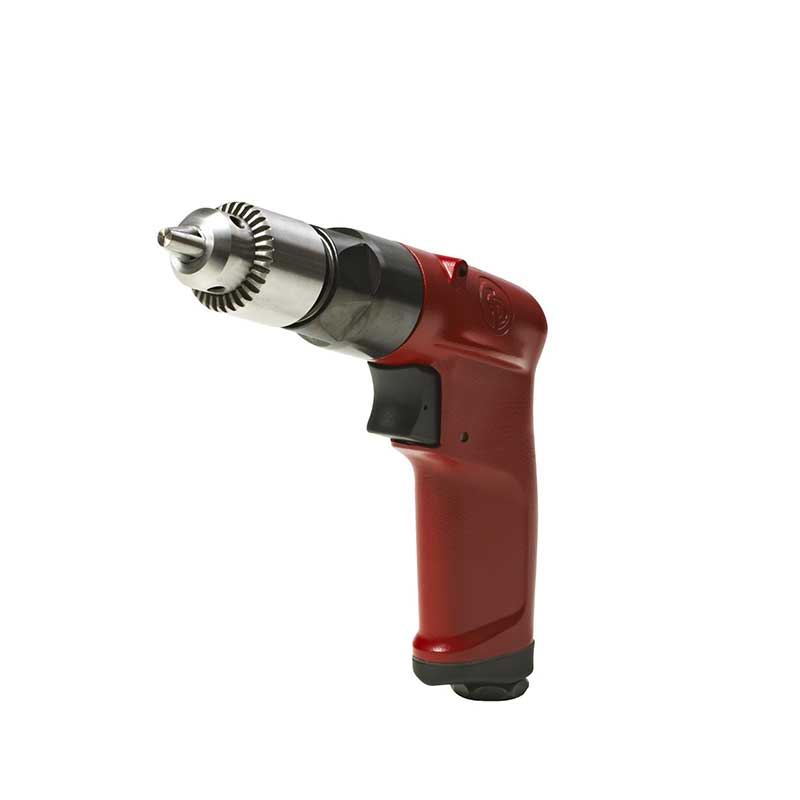

CP1014P33 | 1/4 in. Pneumatic Air Drill, 0.5 hp, 3300 rpm, 2.6 ft lb stall
Designed for body shops or general maintenance applications such as drilling, honing, reaming and hole sawing
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP1014P33 1/4 in. Pneumatic Air Drill Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP1014P33 1/4 in. Pneumatic Air Drill Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Drill and Air Tapper Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP1014P33 1/4 in. Pneumatic Air Drill CE Certificate (PDF)Open
6151580030 | CP1014P33 | 1/4 in. Pneumatic Air Drill, 0.5 hp, 3300 rpm, 2.6 ft lb stallCP1014P33
Price on request
Details
Product information
Overview
Chicago Pneumatic 1/4 in. Pneumatic Air Drill, 0.5 hp, 3300 rpm, 2.6 ft lb stall
CP1014P33
CP1014P33, 1/4 in. Pneumatic Air Drill, 0.5 hp, 3300 rpm, 2.6 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/4 in. Pneumatic Air Drill at a lower price? Call or email and we'll match the price!
Benefits
- High productivity thanks to high power with great control and high quality keyed chuck
- Operator comfort thanks to exclusive ergonomic features
- Drills for Industrial Production designed for intensive duty and high durability
Features
- 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck
- Ergonomic & compact body, Quiet, Low vibrations
- High power 0.5hp (375W) with excellent control by teasing throttle handle
| Technical Specifications | |
|---|---|
| Chuck max capacity (in) | 1/4 |
| Chuck max capacity (mm) | 6.4 |
| Chuck type | Keyed |
| Handle type | Pistol |
| Main Material type | Aluminum |
| Reversible | No |
| Starting system | Trigger |
| Trigger type | Progressive |
| Sound Power | 89 dB(A) |
| Sound Pressure | 78 dB(A) |
| Air consumption at load | 9 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Max power | 375 W |
| Stall torque | 3.5 Nm |
| Free Speed | 3300 rpm |
| Air consumption at free speed | 10 l/s |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 160 mm |
| Weight | 0.54 kg |
| MPN | CP1014P33 |
| Features & Benefits | |
| High comfort with its compositie housing | |
| Thermoplastic rubber handle grip | |
| Handle exhaust allowing the air to flow away from the operator | |
