Chicago Pneumatic6151580010

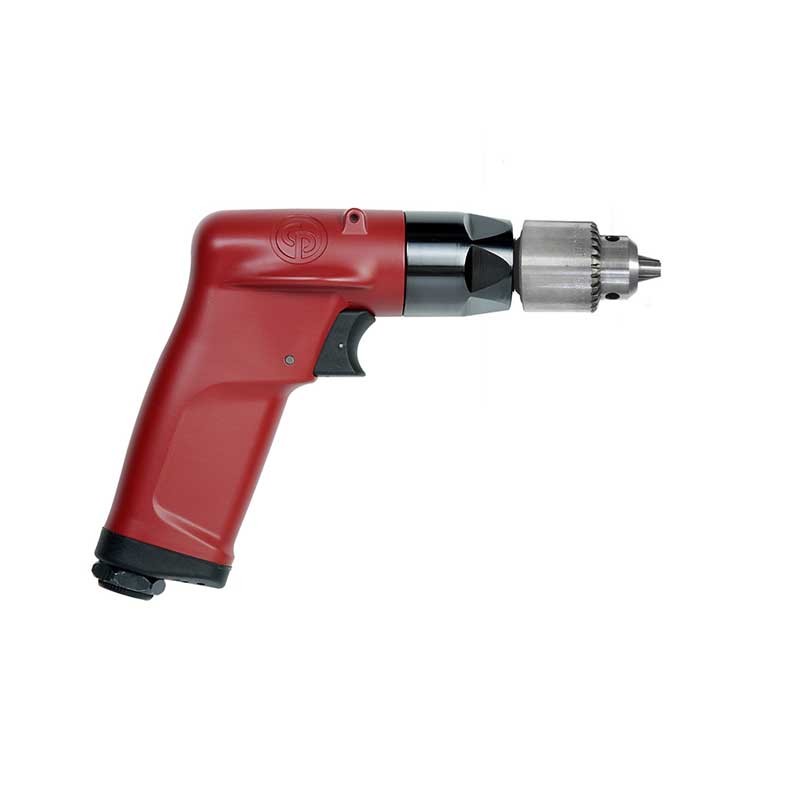

CP1014P45 | 1/4 in. Pneumatic Air Drill, 0.5 hp, 4500 rpm, 2.4 ft lb stall
Designed for body shops or general maintenance applications such as drilling, honing, reaming and hole sawing
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP1014P45 1/4 in. Pneumatic Air Drill Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP1014P45 1/4 in. Pneumatic Air Drill Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Drill and Air Tapper Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP1014P45 1/4 in. Pneumatic Air Drill CE Certificate (PDF)Open
6151580010 | CP1014P45 | 1/4 in. Pneumatic Air Drill, 0.5 hp, 4500 rpm, 2.4 ft lb stallCP1014P45
Price on request
Details
Product information
Overview
Chicago Pneumatic 1/4 in. Pneumatic Air Drill, 0.5 hp, 4500 rpm, 2.4 ft lb stall
CP1014P45
CP1014P45, 1/4 in. Pneumatic Air Drill, 0.5 hp, 4500 rpm, 2.4 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/4 in. Pneumatic Air Drill at a lower price? Call or email and we'll match the price!
Benefits
- High productivity thanks to high power with great control and high quality keyed chuck
- Operator comfort thanks to exclusive ergonomic features
- Intensive duty and high durability for general maintenance
Features
- 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck
- Ergonomic & compact body, Quiet, low vibration
- High power, 0.5hp (375W), and excellent control with teasing throttle
| Technical Specifications | |
|---|---|
| Model | CP1014P45 |
| Type | Drill |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 160 |
| Free Speed (RPM) | 4500 |
| SKU | 6151580010 |
| Stock Code | 2 |
| Style | Pistol Grip |
| Max Torque (Ft Lb) | 2.4 |
| Weight (lbs) | 1.2 |
| Actuation | Trigger |
| Stall Torque (ft lb) | 2.4 |
| Series | High Speed |
| Spindle | 3/8'' - 24 |
| Stall Torque (in lb) | 28.8 |
| Air Inlet NPT (in) | 1/4 |
| Chuck Capacity (in) | 1/4 |
| Rated Power (hp) | 0.5 |
| Air Consp. @ Free Speed (L/s) | 12.5 |
| MPN | CP1014P45 |
| Features & Benefits | |
| High comfort with its compositie housing | |
| Thermoplastic rubber handle grip | |
| Handle exhaust allowing the air to flow away from the operator | |
