Chicago Pneumatic6151580310

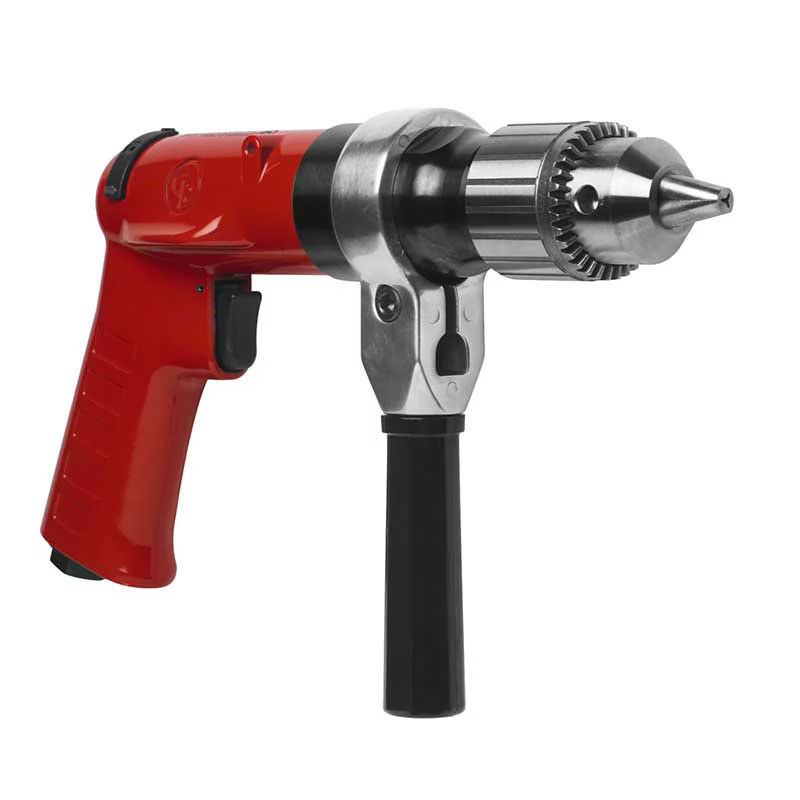

CP1114R05 | 1/2 in. Pneumatic Air Drill, reversible, 0.5 hp, 500 rpm, 18.6 ft lb stall
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151580310 | CP1114R05 | 1/2 in. Pneumatic Air Drill, reversible, 0.5 hp, 500 rpm, 18.6 ft lb stallCP1114R05
Price on request
Details
Product information
Overview
Chicago Pneumatic 1/2 in. Pneumatic Air Drill, reversible, 0.5 hp, 500 rpm, 18.6 ft lb stall
CP1114R05
CP1114R05, 1/2 in. Pneumatic Air Drill, reversible, 0.5 hp, 500 rpm, 18.6 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/2 in. Pneumatic Air Drill at a lower price? Call or email and we'll match the price!
Benefits
- Industrial durability
- Operator comfort thanks to exclusive CP Ergo Wing
- Perfect for drilling reaming, tapping applications
Features
- 1/2" (13 mm) industrial pistol drill with Jacobs industrial keyed chuck
- Reversible switch
- Ergonomic & compact body
- Low noise and low vibration
- Low runout : below 0.15 mm
| Technical Specifications | |
|---|---|
| Chuck max capacity (in) | 1/2 |
| Chuck max capacity (mm) | 13 |
| Chuck type | Keyed |
| Handle type | Pistol |
| Main Material type | Aluminum |
| Reversible | Yes |
| Starting system | Trigger |
| Trigger type | Progressive |
| Sound Power | 93 dB(A) |
| Sound Pressure | 82 dB(A) |
| Uncertainty vibration-K | 1.1 m/s² |
| Air consumption at load | 12 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Max power | 410 W |
| Stall torque | 25.2 Nm |
| Free Speed | 500 rpm |
| Air consumption at free speed | 15 l/s |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 215 mm |
| Weight | 1.3 kg |
| MPN | CP1114R05 |
