Chicago Pneumatic6151580240

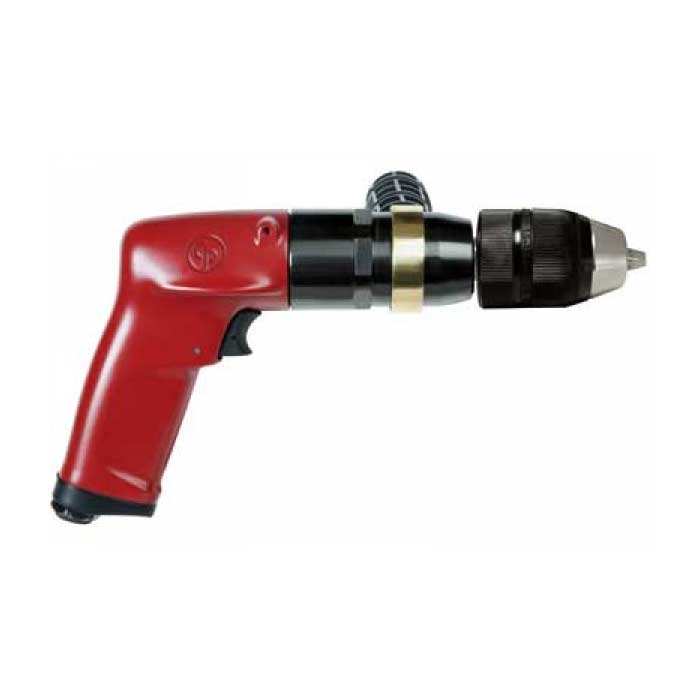

CP1117P05 | 1/2 in. Pneumatic Air Drill, no chuck, 1 hp, 500 rpm, 22.2 ft lb stall
The best power to weight ratio drills for Industrial production, intensive duty with high durability and operator comfort.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP1117P05 1/2 in. Pneumatic Air Drill Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP1117P05 1/2 in. Pneumatic Air Drill Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Drill and Air Tapper Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP1117P05 1/2 in. Pneumatic Air Drill CE Certificate (PDF)Open
6151580240 | CP1117P05 | 1/2 in. Pneumatic Air Drill, no chuck, 1 hp, 500 rpm, 22.2 ft lb stallCP1117P05
Price on request
Details
Product information
Overview
Chicago Pneumatic 1/2 in. Pneumatic Air Drill, no chuck, 1 hp, 500 rpm, 22.2 ft lb stall
CP1117P05
CP1117P05, 1/2 in. Pneumatic Air Drill, no chuck, 1 hp, 500 rpm, 22.2 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/2 in. Pneumatic Air Drill at a lower price? Call or email and we'll match the price!
Benefits
- Improve your productivity thanks to high power & speed
- Operator comfort thanks to exclusive ergonomic features
- Super Industrial drills designed for intensive duty and high durability
Features
- Industrial pistol drill without chuck
- The best power to weight ratio with 1 hp (750 W) motor
- Durable gearbox reduce maintenance cost and downtime
| Technical Specifications | |
|---|---|
| Model | CP1117P05 |
| Type | Drill |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 203 |
| Free Speed (RPM) | 500 |
| SKU | 6151580240 |
| Stock Code | 2 |
| Style | Pistol Grip |
| Max Torque (Ft Lb) | 22.2 |
| Weight (lbs) | 3.4 |
| Actuation | Trigger |
| Stall Torque (ft lb) | 22.2 |
| Series | CP1117 |
| Spindle | 3/8'' - 24 |
| Stall Torque (in lb) | 266.4 |
| Air Inlet NPT (in) | 1/4 |
| Chuck Capacity (in) | 1/4 |
| Rated Power (hp) | 1 |
| Air Consp. @ Free Speed (L/s) | 16.1 |
| MPN | CP1117P05 |
| Features & Benefits | |
| High power 1hp (750W) with excellent control by teasing throttle handle | |
| High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations | |
| High quality industrial pistol drill with keyless, without chuck or Jacobs industrial keyed chuck 3/8 '(10 mm) to 1/2' (13 mm) | |
| No Chuck | |
| High Ergonomic with compact CP Ergo Wings body | |
| Low Noise and Low vibrations | |
| High quality industrial pistol drill with keyless | |
| without chuck or Jacobs industrial keyed chuck 3/8 '(10 mm) to 1/2' (13 mm) | |
