Chicago Pneumatic6151580210

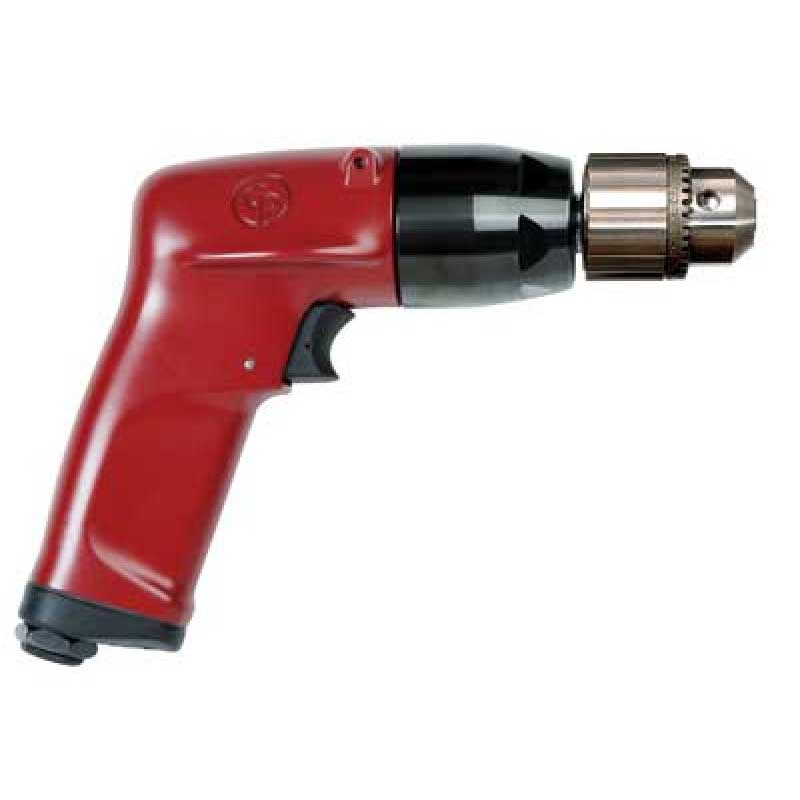

CP1117P32 | 3/8 in. Pneumatic Air Drill, no chuck, 1 hp, 3200 rpm, 4 ft lb stall
Compact drills for Industrial production, intensive duty with high durability and operator comfort.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP1117P32 3/8 in. Pneumatic Air Drill Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP1117P32 3/8 in. Pneumatic Air Drill Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Drill and Air Tapper Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP1117P32 3/8 in. Pneumatic Air Drill CE Certificate (PDF)Open
6151580210 | CP1117P32 | 3/8 in. Pneumatic Air Drill, no chuck, 1 hp, 3200 rpm, 4 ft lb stallCP1117P32
Price on request
Details
Product information
Overview
Chicago Pneumatic 3/8 in. Pneumatic Air Drill, no chuck, 1 hp, 3200 rpm, 4 ft lb stall
CP1117P32
CP1117P32, 3/8 in. Pneumatic Air Drill, no chuck, 1 hp, 3200 rpm, 4 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 3/8 in. Pneumatic Air Drill at a lower price? Call or email and we'll match the price!
Benefits
- Improve your productivity thanks to high power & speed
- Operator comfort thanks to exclusive ergonomic features
- Drills for Industrial Production designed for intensive duty and high durability
Features
- Industrial pistol drill without chuck
- The best power to weight ratio with 1 hp (750 W) motor
- Durable gearbox reduce maintenance cost and downtime
| Technical Specifications | |
|---|---|
| Chuck max capacity (in) | 3/8 |
| Chuck max capacity (mm) | 10 |
| Chuck type | No chuck |
| Handle type | Pistol |
| Main Material type | Aluminum |
| Reversible | No |
| Starting system | Trigger |
| Trigger type | Progressive |
| Sound Power | 94 dB(A) |
| Sound Pressure | 83 dB(A) |
| Air consumption at load | 14 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Max power | 750 W |
| Stall torque | 5.4 Nm |
| Free Speed | 3200 rpm |
| Air consumption at free speed | 16 l/s |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 180 mm |
| Weight | 0.99 kg |
| MPN | CP1117P32 |
| Features & Benefits | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle | |
| High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH | |
| High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck | |
| No Chuck | |
| High power 0.5hp (375W) with excellent control by teasing throttle handle,High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH,High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck,No Chuck | |
