Chicago Pneumatic6151602160

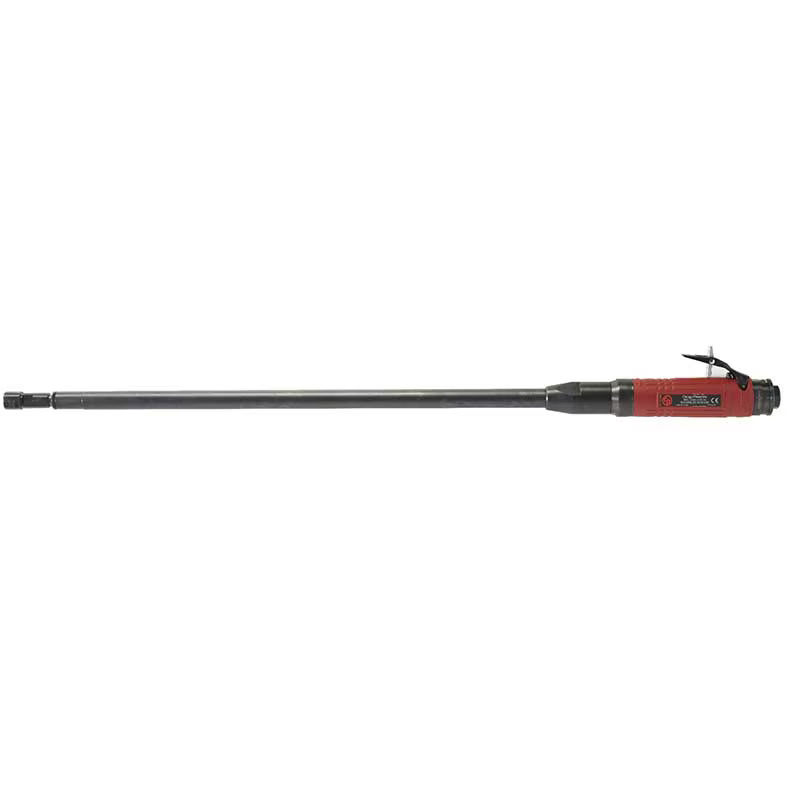

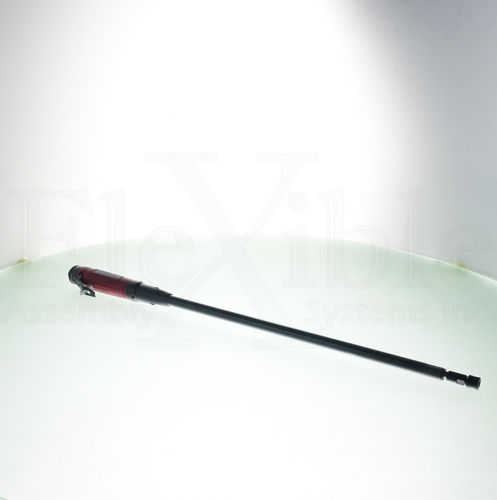

CP3119-12EXL | 1/4 in. Extended Die Grinder, 12000 rpm, 1.2 hp, Rear exhaust
This CP3119 Die Grinder has a 1.2 hp motor with speeds up to 12,000 rpm.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP3119-12EXL 1/4 in. Extended Die Grinder Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP3119-12EXL 1/4 in. Extended Die Grinder Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Die Grinder Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP3119-12EXL 1/4 in. Extended Die Grinder CE Certificate (PDF)Open
6151602160 | CP3119-12EXL | 1/4 in. Extended Die Grinder, 12000 rpm, 1.2 hp, Rear exhaustCP3119-12EXL
Price on request
Details
Product information
Overview
Chicago Pneumatic 1/4 in. Extended Die Grinder, 12000 rpm, 1.2 hp, Rear exhaust
CP3119-12EXL
CP3119-12EXL, 1/4 in. Extended Die Grinder, 12000 rpm, 1.2 hp, Rear exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/4 in. Extended Die Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial straight wheel grinder
- High productivity
- Highest durability in demanding applications up to 2000 hours maintenance intervals
Features
- 33.6" (853 mm) extended body with one piece steel structure
- Steel construction
- Insulating composite over-housing
- Streamlined safety lever
- Rear exhaust
- 1/4" (6.35 mm) collet holder
- 1.2 hp (900 W) governed motor
- 12,000 rpm free speed
| Technical Specifications | |
|---|---|
| Model | CP3119-12EXL |
| Collet (in) | 1/4 |
| Type | Extended Die Grinder |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 853 |
| Free Speed (RPM) | 12000 |
| SKU | 6151602160 |
| Stock Code | 2 |
| Exhaust | Rear |
| Weight (lbs) | 5.90 |
| Series | CP3119 |
| Air Inlet NPT (in) | 3/8 |
| Rated Power (hp) | 1.2 |
| Air Consp. @ Free Speed (L/s) | 6 |
| MPN | CP3119-12EXL |
| Features & Benefits | |
| High Performance | |
| 2000 hour service interval | |
