Chicago Pneumatic6151602130

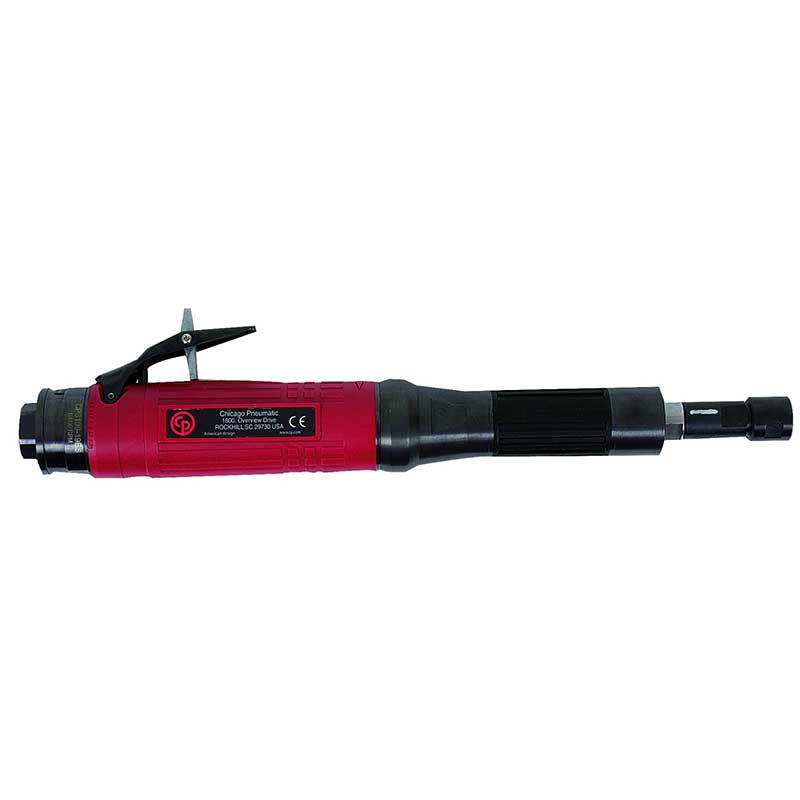

CP3119-18ES | 1/4 in. Extended Die Grinder, 18000 rpm, 1.2 hp, Rear exhaust
This CP3119 Die Grinder has a 1.2 hp motor with speeds up to 18,000 rpm. Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP3119-18ES 1/4 in. Extended Die Grinder Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP3119-18ES 1/4 in. Extended Die Grinder Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Die Grinder Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP3119-18ES 1/4 in. Extended Die Grinder CE Certificate (PDF)Open
6151602130 | CP3119-18ES | 1/4 in. Extended Die Grinder, 18000 rpm, 1.2 hp, Rear exhaustCP3119-18ES
Price on request
Details
Product information
Overview
Chicago Pneumatic 1/4 in. Extended Die Grinder, 18000 rpm, 1.2 hp, Rear exhaust
CP3119-18ES
CP3119-18ES, 1/4 in. Extended Die Grinder, 18000 rpm, 1.2 hp, Rear exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/4 in. Extended Die Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial
- High productivity
- Highest durability in demanding applications up to 2000 hours maintenance intervals
Features
- Steel housing
- Insulating composite over-housing
- Extended body with rubber grip
- Streamlined safety lever
- Rear exhaust
- 1/4" (6.35 mm) collet holder
- Extended body with rubber grip
- 1.2 hp (900 W) governed motor
- 18,000 rpm free speed
| Technical Specifications | |
|---|---|
| Model | CP3119-18ES |
| Collet (in) | 1/4 |
| Type | Extended Die Grinder |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 361 |
| Free Speed (RPM) | 18000 |
| SKU | 6151602130 |
| Stock Code | 2 |
| Exhaust | Rear |
| Weight (lbs) | 3.10 |
| Series | CP3119 |
| Air Inlet NPT (in) | 3/8 |
| Rated Power (hp) | 1.2 |
| Air Consp. @ Free Speed (L/s) | 10 |
| MPN | CP3119-18ES |
| Features & Benefits | |
| High Performance | |
| 2000 hour service interval | |
