Chicago Pneumatic6151590130

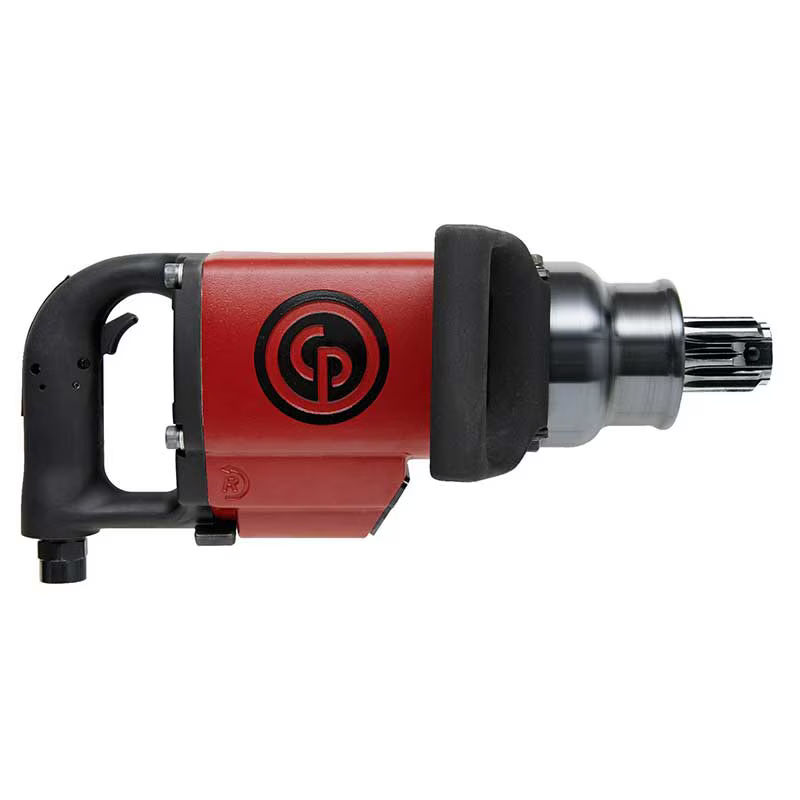

CP6120-D35L | #5 spline 3600 ft lb Air Impact Wrench, D-Handle Inside Trigger, 3500 rpm
The best super industrial #5 Spline impact
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151590130 | CP6120-D35L | #5 spline 3600 ft lb Air Impact Wrench, D-Handle Inside Trigger, 3500 rpmCP6120-D35L
Price on request
Recommended Accessories
1 itemAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 CP6120-D35H6151590120 | CP6120-D35H | 1-1/2 in. 3600 ft lb Air Impact Wrench, D-Handle Inside Trigger, 3500 rpm | 1 | View details |
Details
Product information
Overview
Chicago Pneumatic #5 spline 3600 ft lb Air Impact Wrench, D-Handle Inside Trigger, 3500 rpm
CP6120-D35L
CP6120-D35L, #5 spline 3600 ft lb Air Impact Wrench, D-Handle Inside Trigger, 3500 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this #5 spline 3600 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits
- Unbeatable combination of power and ergonomics
- Extremely low lateral vibrations for best comfort and safety
- Excellent durability
- The reference tool for the most demanding applications in Energy and Metal working segments
Features
- Premium Industrial 1-1/2" impact wrench
- CP's 2-Jaw clutch for superior ergonomics and productivity
- Very robust steel clutch housing and aluminum motor housing
- Extremely comfortable handle and adjustable support handle
- Possibility to change inside/outside trigger, parts included in the box
- Reverse biased 15%, possiblity to change to forward biased by turning around the air motor cylinder
| Technical Specifications | |
|---|---|
| Model | CP6120-D35L |
| Recommended Torque Range (Ft Lb) | 600 - 2000 |
| Type | Air Impact Wrench |
| Drive size | #5 Spline |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 419 |
| Free Speed (RPM) | 3500 |
| SKU | 6151590130 |
| Stock Code | 2 |
| Style | D-Handle |
| Clutch Type | 2-jaw clutch |
| Max Torque (Ft Lb) | 3600 |
| Max Torque (Nm) | 4880 |
| Square Drive | no. 5 spline |
| Weight (lbs) | 34.5 |
| Side to Center (in) | 2.13 |
| Handle Type | D-Handle, Inside Trigger |
| Blows Per Minute (bpm) | 960 |
| Actuation | Trigger |
| Series | CP6120 |
| Retainer Type | Hole |
| Air Inlet NPT (in) | 1/2 |
| Air Consp. @ Free Speed (L/s) | 51.5 |
| MPN | CP6120-D35L |
| Features & Benefits | |
| Maximum Productivity provided by 2-jaw clutch | |
| Excellent durability | |
