Chicago Pneumatic6151590380

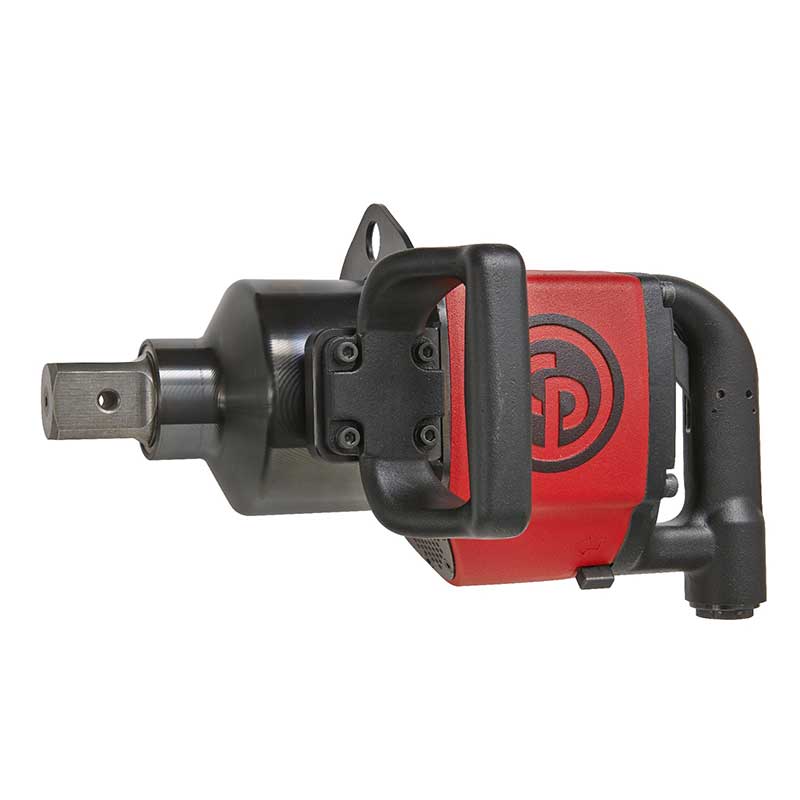

CP6135-D80 | 1-1/2 in. 5900 ft lb Air Impact Wrench, D-Handle Inside Trigger, 2800 rpm
Best Power-to-weight ratio for serious industrial applications
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151590380 | CP6135-D80 | 1-1/2 in. 5900 ft lb Air Impact Wrench, D-Handle Inside Trigger, 2800 rpmCP6135-D80
Price on request
Details
Product information
Overview
Chicago Pneumatic 1-1/2 in. 5900 ft lb Air Impact Wrench, D-Handle Inside Trigger, 2800 rpm
CP6135-D80
CP6135-D80, 1-1/2 in. 5900 ft lb Air Impact Wrench, D-Handle Inside Trigger, 2800 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1-1/2 in. 5900 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits
- Monster Power for the light weight and compact size
- Premium quality for the most demanding applications
- Smooth operation thanks to the teasing trigger
Features
- Durable Pinless Rocking Dog clutch
- Robust aluminum body & Steel clutch housing
- Reversible and teasing steel trigger
| Technical Specifications | |
|---|---|
| Max working torque fwd | 5500 Nm |
| Max torque reverse | 8000 Nm |
| Min working torque fwd | 1 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.63 in |
| Min hose diam (5 m hose length) | 19 mm |
| Sound Power | 109 dB(A) |
| Sound Pressure | 98 dB(A) |
| Uncertainty vibration-K | 2.2 m/s² |
| Vibration (m/s²) | 13.6 |
| Free Speed | 2800 rpm |
| ItemType | product |
| ItemCountryOfOrigin | HU |
| Length (L) | 408 mm |
| Power weight ratio | 500 Nm/kg |
| Side to Center | 67.5 mm |
| Weight | 16 kg |
| Blow per minute | 750 |
| Body | Aluminum |
| Clutch housing | Steel |
| Clutch lubrication type | Grease |
| Handle type | D-handle |
| Impact mecanism | Pinless rocking dog |
| Output drive size (in) | 1-1/2 |
| Output drive type | Sq |
| Output retainer type | Hole |
| Side handle | Yes |
| Starting system | Trigger |
| MPN | CP6135-D80 |
| Features & Benefits | |
| Monster power in lightweight compact design | |
